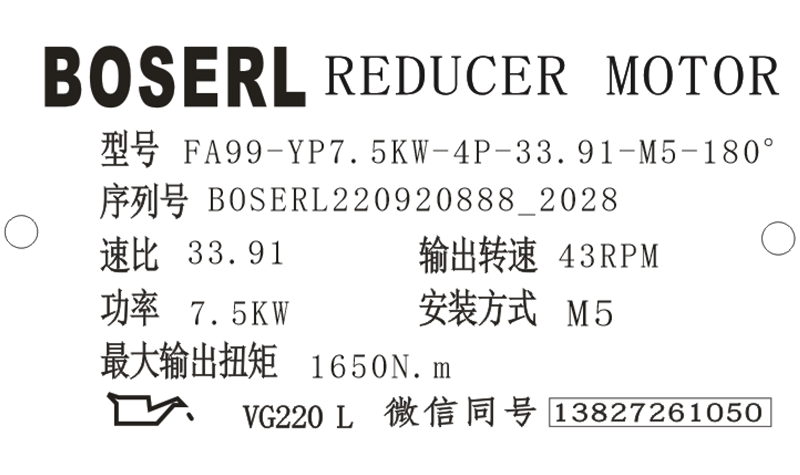

FA99減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F99減速機選型樣本。
FA99-YP7.5KW-4P-33.91-M5-180°
FA：系列代號
99：減速機規格代號
YP：電機
7.5KW：電機功率
4P：電機級數
33.91：減速機傳動比
M5：減速機安裝位置
180°：接線盒位置
FA99減速機扭力臂安裝：
請按以下步驟安裝橡膠緩沖塊：1.根據下表采用螺栓［1］和墊片［2］；2.用兩個螺母［3］緊固螺栓；3.擰緊螺栓，直至橡膠緩沖塊的預緊力“△L”達到表中的要求。下圖為FA99減速機的扭力臂安裝示意圖：齒輪減速電機
減速機型號 | 直 徑 a［mm］ | 橡膠緩沖塊 內徑b［mm］ | 長 度 (未張緊)d［mm］ | 墊片寬度 c［mm］ | △L（張緊） ［mm］ |
FA39減速機 | 40 | 12.5 | 20 | 5 | 1 |
FA49減速機 | 40 | 12.5 | 20 | 5 | 1.5 |
FA59減速機 | 40 | 12.5 | 20 | 5 | 1.5 |
FA69減速機 | 40 | 12.5 | 20 | 5 | 1.5 |
FA79減速機 | 60 | 21 | 30 | 10 | 1.5 |
FA89減速機 | 60 | 21 | 30 | 10 | 1.5 |
FA99減速機 | 80 | 25 | 40 | 12 | 2 |
FA109減速機 | 80 | 25 | 40 | 12 | 2 |
FA129減速機 | 100 | 32 | 60 | 15 | 2 |
FA159減速機 | 120 | 32 | 60 | 15 | 2 |
FA99減速機電機安裝和電機安裝位置的調整：
均勻調整螺母將電機安裝平臺固定到需要的位置。如要將FA99減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。平行軸斜齒輪減速機
將電機與電機安裝平臺對準(軸端不許對齊)并固定。
將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。
裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。
擰緊非調整螺母以固定螺桿。分體電機減速機
FA99減速機型號：
WFA97-Y0.75KW，WFA97-Y1.1KW，WFA97-Y1.5KW，WFA97-Y100M4，WFA97-Y112M4，WFA97-Y11KW，WFA97-Y132M4，WFA97-Y15KW，WFA97-Y160M4，WFA97-Y18.5KW，WFA97-Y180M4，WFA97-Y2.2KW，WFA97-Y200M4，WFA97-Y22KW，WFA97-Y30KW，WFA97-Y3KW，WFA97-Y4KW，WFA97-Y5.5KW，WFA97-Y7.5KW，WFA97-Y80M4，WFA97-Y90M4，WFA97-YB100M4，WFA97-YB112M4，WFA97-YB132M4，WFA97-YB160M4，WFA97-YB180M4，WFA97-YB200M4，WFA97-YB80M4，WFA97-YB90M4，WFA97-YDP100M4，WFA97-YDP112M4，WFA97-YDP132M4，WFA97-YDP160M4，WFA97-YDP180M4，WFA97-YDP200M4，WFA97-YDP80M4，WFA97-YDP90M4，WFA97-YE100M4，WFA97-YE112M4，WFA97-YE132M4，WFA97-YE160M4，WFA97-YE180M4，WFA97-YE200M4，WFA97-YE80M4，WFA97-YE90M4，WFA97-YEJ100M4，WFA97-YEJ112M4，WFA97-YEJ132M4，WFA97-YEJ160M4，WFA97-YEJ180M4，WFA97-YEJ200M4，WFA97-YEJ80M4，WFA97-YEJ90M4，WFA97-YEJB100M4，WFA97-YEJB112M4，WFA97-YEJB132M4，WFA97-YEJB160M4，WFA97-YEJB180M4，WFA97-YEJB200M4，WFA97-YEJB80M4，WFA97-YEJB90M4，WFA97-YP100M4，WFA97-YP112M4，WFA97-YP132M4，WFA97-YP160M4，WFA97-YP180M4，WFA97-YP200M4，WFA97-YP80M4，WFA97-YP90M4，WFA97-YPB100M4，WFA97-YPB112M4，WFA97-YPB132M4，WFA97-YPB160M4，WFA97-YPB180M4，WFA97-YPB200M4，WFA97-YPB80M4，WFA97-YPB90M4，WFA97-YPE100M4，WFA97-YPE112M4，WFA97-YPE132M4，WFA97-YPE160M4，WFA97-YPE180M4，WFA97-YPE200M4，WFA97-YPE80M4，WFA97-YPE90M4，WFA97-YS100M4，WFA97-YS112M4，WFA97-YS132M4，WFA97-YS160M4，WFA97-YS180M4，WFA97-YS200M4，WFA97-YS80M4，WFA97-YS90M4，WFA97-YVB100M4，WFA97-YVB112M4，WFA97-YVB132M4，WFA97-YVB160M4，WFA97-YVB180M4，WFA97-YVB200M4，WFA97-YVB80M4，WFA97-YVB90M4，WFA97-YVP100M4，WFA97-YVP112M4，WFA97-YVP132M4，WFA97-YVP160M4，WFA97-YVP180M4，WFA97-YVP200M4，WFA97-YVP80M4，WFA97-YVP90M4，WFA97-YVPEJ100M4，WFA97-YVPEJ112M4，WFA97-YVPEJ132M4，WFA97-YVPEJ160M4，WFA97-YVPEJ180M4，WFA97-YVPEJ200M4，WFA97-YVPEJ80M4，WFA97-YVPEJ90M4，SFA97-Y0.75KW，SFA97-Y1.1KW，SFA97-Y1.5KW，SFA97-Y100M4，SFA97-Y112M4，SFA97-Y11KW，SFA97-Y132M4，SFA97-Y15KW，SFA97-Y160M4，SFA97-Y18.5KW，SFA97-Y180M4，SFA97-Y2.2KW，SFA97-Y200M4，SFA97-Y22KW，SFA97-Y30KW，SFA97-Y3KW，SFA97-Y4KW，SFA97-Y5.5KW，SFA97-Y7.5KW，SFA97-Y80M4，SFA97-Y90M4，SFA97-YB100M4，SFA97-YB112M4，SFA97-YB132M4，SFA97-YB160M4，SFA97-YB180M4，SFA97-YB200M4，SFA97-YB80M4，SFA97-YB90M4，SFA97-YDP100M4，SFA97-YDP112M4，SFA97-YDP132M4，SFA97-YDP160M4，SFA97-YDP180M4，SFA97-YDP200M4，SFA97-YDP80M4，SFA97-YDP90M4，SFA97-YE100M4，SFA97-YE112M4，SFA97-YE132M4，SFA97-YE160M4，SFA97-YE180M4，SFA97-YE200M4，SFA97-YE80M4，SFA97-YE90M4，SFA97-YEJ100M4，SFA97-YEJ112M4，SFA97-YEJ132M4，SFA97-YEJ160M4，SFA97-YEJ180M4，SFA97-YEJ200M4，SFA97-YEJ80M4，SFA97-YEJ90M4，SFA97-YEJB100M4，SFA97-YEJB112M4，SFA97-YEJB132M4，SFA97-YEJB160M4，SFA97-YEJB180M4，SFA97-YEJB200M4，SFA97-YEJB80M4，SFA97-YEJB90M4，SFA97-YP100M4，SFA97-YP112M4，SFA97-YP132M4，SFA97-YP160M4，SFA97-YP180M4，SFA97-YP200M4，SFA97-YP80M4，SFA97-YP90M4，SFA97-YPB100M4，SFA97-YPB112M4，SFA97-YPB132M4，SFA97-YPB160M4，SFA97-YPB180M4，SFA97-YPB200M4，SFA97-YPB80M4，SFA97-YPB90M4，SFA97-YPE100M4，SFA97-YPE112M4，SFA97-YPE132M4，SFA97-YPE160M4，SFA97-YPE180M4，SFA97-YPE200M4，SFA97-YPE80M4，SFA97-YPE90M4，SFA97-YS100M4，SFA97-YS112M4，SFA97-YS132M4，SFA97-YS160M4，SFA97-YS180M4，SFA97-YS200M4，SFA97-YS80M4，SFA97-YS90M4，SFA97-YVB100M4，SFA97-YVB112M4，SFA97-YVB132M4，SFA97-YVB160M4，SFA97-YVB180M4，SFA97-YVB200M4，SFA97-YVB80M4，SFA97-YVB90M4，SFA97-YVP100M4，SFA97-YVP112M4，SFA97-YVP132M4，SFA97-YVP160M4，SFA97-YVP180M4，SFA97-YVP200M4，SFA97-YVP80M4，SFA97-YVP90M4，SFA97-YVPEJ100M4，SFA97-YVPEJ112M4，SFA97-YVPEJ132M4，SFA97-YVPEJ160M4，SFA97-YVPEJ180M4，SFA97-YVPEJ200M4，SFA97-YVPEJ80M4，SFA97-YVPEJ90M4，NFA97-Y0.75KW，NFA97-Y1.1KW，NFA97-Y1.5KW，NFA97-Y100M4，NFA97-Y112M4，NFA97-Y11KW，NFA97-Y132M4，NFA97-Y15KW，NFA97-Y160M4，NFA97-Y18.5KW，NFA97-Y180M4，NFA97-Y2.2KW，NFA97-Y200M4，NFA97-Y22KW，NFA97-Y30KW，NFA97-Y3KW，NFA97-Y4KW，NFA97-Y5.5KW，NFA97-Y7.5KW，NFA97-Y80M4，NFA97-Y90M4，NFA97-YB100M4，NFA97-YB112M4，NFA97-YB132M4，NFA97-YB160M4，NFA97-YB180M4，NFA97-YB200M4，NFA97-YB80M4，NFA97-YB90M4，NFA97-YDP100M4，NFA97-YDP112M4，NFA97-YDP132M4，NFA97-YDP160M4，NFA97-YDP180M4，NFA97-YDP200M4，NFA97-YDP80M4，NFA97-YDP90M4，NFA97-YE100M4，NFA97-YE112M4，NFA97-YE132M4，NFA97-YE160M4，NFA97-YE180M4，NFA97-YE200M4，NFA97-YE80M4，NFA97-YE90M4，NFA97-YEJ100M4，NFA97-YEJ112M4，NFA97-YEJ132M4，NFA97-YEJ160M4，NFA97-YEJ180M4，NFA97-YEJ200M4，NFA97-YEJ80M4，NFA97-YEJ90M4，NFA97-YEJB100M4，NFA97-YEJB112M4，NFA97-YEJB132M4，NFA97-YEJB160M4，NFA97-YEJB180M4，NFA97-YEJB200M4，NFA97-YEJB80M4，NFA97-YEJB90M4，NFA97-YP100M4，NFA97-YP112M4，NFA97-YP132M4，NFA97-YP160M4，NFA97-YP180M4，NFA97-YP200M4，NFA97-YP80M4，NFA97-YP90M4，NFA97-YPB100M4，NFA97-YPB112M4，NFA97-YPB132M4，NFA97-YPB160M4，NFA97-YPB180M4，NFA97-YPB200M4，NFA97-YPB80M4，NFA97-YPB90M4，NFA97-YPE100M4，NFA97-YPE112M4，NFA97-YPE132M4，NFA97-YPE160M4，NFA97-YPE180M4，NFA97-YPE200M4，NFA97-YPE80M4，NFA97-YPE90M4，NFA97-YS100M4，NFA97-YS112M4，NFA97-YS132M4，NFA97-YS160M4，NFA97-YS180M4，NFA97-YS200M4，NFA97-YS80M4，NFA97-YS90M4，NFA97-YVB100M4，NFA97-YVB112M4，NFA97-YVB132M4，NFA97-YVB160M4，NFA97-YVB180M4，NFA97-YVB200M4，NFA97-YVB80M4，NFA97-YVB90M4，NFA97-YVP100M4，NFA97-YVP112M4，NFA97-YVP132M4，NFA97-YVP160M4，NFA97-YVP180M4，NFA97-YVP200M4，NFA97-YVP80M4，NFA97-YVP90M4，NFA97-YVPEJ100M4，NFA97-YVPEJ112M4，NFA97-YVPEJ132M4，NFA97-YVPEJ160M4，NFA97-YVPEJ180M4，NFA97-YVPEJ200M4，NFA97-YVPEJ80M4，NFA97-YVPEJ90M4，AFA97-Y0.75KW，AFA97-Y1.1KW，AFA97-Y1.5KW，AFA97-Y100M4，AFA97-Y112M4，AFA97-Y11KW，AFA97-Y132M4，AFA97-Y15KW，AFA97-Y160M4，AFA97-Y18.5KW，AFA97-Y180M4，AFA97-Y2.2KW，AFA97-Y200M4，AFA97-Y22KW，AFA97-Y30KW，AFA97-Y3KW，AFA97-Y4KW，AFA97-Y5.5KW，AFA97-Y7.5KW，AFA97-Y80M4，AFA97-Y90M4，AFA97-YB100M4，AFA97-YB112M4，AFA97-YB132M4，AFA97-YB160M4，AFA97-YB180M4，AFA97-YB200M4，AFA97-YB80M4，AFA97-YB90M4，AFA97-YDP100M4，AFA97-YDP112M4，AFA97-YDP132M4，AFA97-YDP160M4，AFA97-YDP180M4，AFA97-YDP200M4，AFA97-YDP80M4，AFA97-YDP90M4，AFA97-YE100M4，AFA97-YE112M4，AFA97-YE132M4，AFA97-YE160M4，AFA97-YE180M4，AFA97-YE200M4，AFA97-YE80M4，AFA97-YE90M4，AFA97-YEJ100M4，AFA97-YEJ112M4，AFA97-YEJ132M4，AFA97-YEJ160M4，AFA97-YEJ180M4，AFA97-YEJ200M4，AFA97-YEJ80M4，AFA97-YEJ90M4，AFA97-YEJB100M4，AFA97-YEJB112M4，AFA97-YEJB132M4，AFA97-YEJB160M4，AFA97-YEJB180M4，AFA97-YEJB200M4，AFA97-YEJB80M4，AFA97-YEJB90M4，AFA97-YP100M4，AFA97-YP112M4，AFA97-YP132M4，AFA97-YP160M4，AFA97-YP180M4，AFA97-YP200M4，AFA97-YP80M4，AFA97-YP90M4，AFA97-YPB100M4，AFA97-YPB112M4，AFA97-YPB132M4，AFA97-YPB160M4，AFA97-YPB180M4，AFA97-YPB200M4，AFA97-YPB80M4，AFA97-YPB90M4，AFA97-YPE100M4，AFA97-YPE112M4，AFA97-YPE132M4，AFA97-YPE160M4，AFA97-YPE180M4，AFA97-YPE200M4，AFA97-YPE80M4，AFA97-YPE90M4，AFA97-YS100M4，AFA97-YS112M4，AFA97-YS132M4，AFA97-YS160M4，AFA97-YS180M4，AFA97-YS200M4，AFA97-YS80M4，AFA97-YS90M4，AFA97-YVB100M4，AFA97-YVB112M4，AFA97-YVB132M4，AFA97-YVB160M4，AFA97-YVB180M4，AFA97-YVB200M4，AFA97-YVB80M4，AFA97-YVB90M4，AFA97-YVP100M4，AFA97-YVP112M4，AFA97-YVP132M4，AFA97-YVP160M4，AFA97-YVP180M4，AFA97-YVP200M4，AFA97-YVP80M4，AFA97-YVP90M4，AFA97-YVPEJ100M4，AFA97-YVPEJ112M4，AFA97-YVPEJ132M4，AFA97-YVPEJ160M4，AFA97-YVPEJ180M4，AFA97-YVPEJ200M4，AFA97-YVPEJ80M4，AFA97-YVPEJ90M4，GFA99-Y0.75KW，GFA99-Y1.1KW，GFA99-Y1.5KW，GFA99-Y100M4，GFA99-Y112M4，GFA99-Y11KW，GFA99-Y132M4，GFA99-Y15KW，GFA99-Y160M4，GFA99-Y18.5KW，GFA99-Y180M4，GFA99-Y2.2KW，GFA99-Y200M4，GFA99-Y22KW，GFA99-Y30KW，GFA99-Y3KW，GFA99-Y4KW，GFA99-Y5.5KW，GFA99-Y7.5KW，GFA99-Y80M4，GFA99-Y90M4，GFA99-YB100M4，GFA99-YB112M4，GFA99-YB132M4，GFA99-YB160M4，GFA99-YB180M4，GFA99-YB200M4，GFA99-YB80M4，GFA99-YB90M4，GFA99-YDP100M4，GFA99-YDP112M4，GFA99-YDP132M4，GFA99-YDP160M4，GFA99-YDP180M4，GFA99-YDP200M4，GFA99-YDP80M4，GFA99-YDP90M4，GFA99-YE100M4，GFA99-YE112M4，GFA99-YE132M4，GFA99-YE160M4，GFA99-YE180M4，GFA99-YE200M4，GFA99-YE80M4，GFA99-YE90M4，GFA99-YEJ100M4，GFA99-YEJ112M4，GFA99-YEJ132M4，GFA99-YEJ160M4，GFA99-YEJ180M4，GFA99-YEJ200M4，GFA99-YEJ80M4，GFA99-YEJ90M4，GFA99-YEJB100M4，GFA99-YEJB112M4，GFA99-YEJB132M4，GFA99-YEJB160M4，GFA99-YEJB180M4，GFA99-YEJB200M4，GFA99-YEJB80M4，GFA99-YEJB90M4，GFA99-YP100M4，GFA99-YP112M4，GFA99-YP132M4，GFA99-YP160M4，GFA99-YP180M4，GFA99-YP200M4，GFA99-YP80M4，GFA99-YP90M4，GFA99-YPB100M4，GFA99-YPB112M4，GFA99-YPB132M4，GFA99-YPB160M4，GFA99-YPB180M4，GFA99-YPB200M4，GFA99-YPB80M4，GFA99-YPB90M4，GFA99-YPE100M4，GFA99-YPE112M4，GFA99-YPE132M4，GFA99-YPE160M4，GFA99-YPE180M4，GFA99-YPE200M4，GFA99-YPE80M4，GFA99-YPE90M4，GFA99-YS100M4，GFA99-YS112M4，GFA99-YS132M4，GFA99-YS160M4，GFA99-YS180M4，GFA99-YS200M4，GFA99-YS80M4，GFA99-YS90M4，GFA99-YVB100M4，GFA99-YVB112M4，GFA99-YVB132M4，GFA99-YVB160M4，GFA99-YVB180M4，GFA99-YVB200M4，GFA99-YVB80M4，GFA99-YVB90M4，GFA99-YVP100M4，GFA99-YVP112M4，GFA99-YVP132M4，GFA99-YVP160M4，GFA99-YVP180M4，GFA99-YVP200M4，GFA99-YVP80M4，GFA99-YVP90M4，GFA99-YVPEJ100M4，GFA99-YVPEJ112M4，GFA99-YVPEJ132M4，GFA99-YVPEJ160M4，GFA99-YVPEJ180M4，GFA99-YVPEJ200M4，GFA99-YVPEJ80M4，GFA99-YVPEJ90M4。
