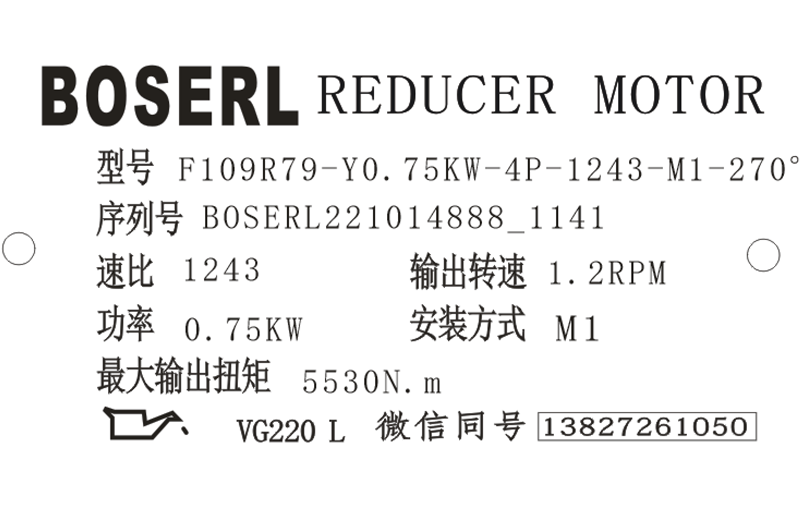

F109R79減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F109R79減速機選型樣本。

F109R79-Y0.75KW-4P-1243-M1-270°

F/R：系列代號

109/79：減速機規格代號

Y：電機

0.75KW：電機功率

4P：電機級數

1243：減速機傳動比

M1：減速機安裝位置

270°：接線盒位置

F109R79減速機電機拆解結構圖：F109R79減速機電機怎么拆？請看下圖。下列示圖為F109R79減速機電機結構原理圖，示圖僅作零件清單的歸類用途。根據電機的規格和設計型號的不同可能存在的偏差！平行軸斜齒輪減速機

F109R79減速機電機危險操作行為示警：

運行過程中，需要相應的防護措施，避免由于電機可能帶電、裸露、移動或者旋轉部件及高溫表面可能產生的危險。齒輪減速電機

請勿在爆炸環境中使用。否則有可能會導致爆炸、著火、火災、觸電、受傷、裝置損壞等。(若確實有需要，請選擇防爆型電機)。

搬運、安裝、接線、運轉·操作、保養·檢查、故障診斷等作業，請具有專門知識和技能者實施。否則有可能會導致爆炸、著火、火災、觸電、受傷、裝置損壞等。

請勿在通電狀態下進行移動、安裝、接線和檢查作業。請務必切斷電源后再操作。否則有可能會導致觸電。

用于人員輸送或升降裝置時，請在裝置側設置安全保護裝置。否則，可能會因失控和墜落而導致人身事故以及裝置損壞。

制動器上請勿粘附水以及油類。否則，可能會因制動扭矩的降低而導致墜落、失控等事故。

減速電機的檢修需要熟練技術，請務必返送回本公司的專門工廠。F系列減速機

F109R79減速電機型號：

YQF107R77-Y0.12KW，YQF107R77-Y0.18KW，YQF107R77-Y0.25KW，YQF107R77-Y0.37KW，YQF107R77-Y0.55KW，YQF107R77-Y0.75KW，YQF107R77-Y1.1KW，YQF107R77-Y1.5KW，YQF107R77-Y100M4，YQF107R77-Y112M4，YQF107R77-Y2.2KW，YQF107R77-Y3KW，YQF107R77-Y4KW，YQF107R77-Y63M4，YQF107R77-Y71M4，YQF107R77-Y80M4，YQF107R77-Y90M4，YQF107RF77-Y100M4，YQF107RF77-Y112M4，YQF107RF77-Y63M4，YQF107RF77-Y71M4，YQF107RF77-Y80M4，YQF107RF77-Y90M4，YQF107RF77-YB100L4，YQF107RF77-YB112M4，YQF107RF77-YB63M4，YQF107RF77-YB71M4，YQF107RF77-YB80M4，YQF107RF77-YB90S4，YQF107RF77-YDP100L4，YQF107RF77-YDP112M4，YQF107RF77-YDP63M4，YQF107RF77-YDP71M4，YQF107RF77-YDP80M4，YQF107RF77-YDP90S4，YQF107RF77-YE100L4，YQF107RF77-YE112M4，YQF107RF77-YE63M4，YQF107RF77-YE71M4，YQF107RF77-YE80M4，YQF107RF77-YE90S4，YQF107RF77-YEJ100L4，YQF107RF77-YEJ112M4，YQF107RF77-YEJ63M4，YQF107RF77-YEJ71M4，YQF107RF77-YEJ80M4，YQF107RF77-YEJ90S4，YQF107RF77-YEJB100L4，YQF107RF77-YEJB112M4，YQF107RF77-YEJB63M4，YQF107RF77-YEJB71M4，YQF107RF77-YEJB80M4，YQF107RF77-YEJB90S4，YQF107RF77-YP100L4，YQF107RF77-YP112M4，YQF107RF77-YP63M4，YQF107RF77-YP71M4，YQF107RF77-YP80M4，YQF107RF77-YP90S4，YQF107RF77-YPB100L4，YQF107RF77-YPB112M4，YQF107RF77-YPB63M4，YQF107RF77-YPB71M4，YQF107RF77-YPB80M4，YQF107RF77-YPB90S4，YQF107RF77-YPE100L4，YQF107RF77-YPE112M4，YQF107RF77-YPE63M4，YQF107RF77-YPE71M4，YQF107RF77-YPE80M4，YQF107RF77-YPE90S4，YQF107RF77-YS100L4，YQF107RF77-YS112M4，YQF107RF77-YS63M4，YQF107RF77-YS71M4，YQF107RF77-YS80M4，YQF107RF77-YS90S4，YQF107RF77-YVB100L4，YQF107RF77-YVB112M4，YQF107RF77-YVB63M4，YQF107RF77-YVB71M4，YQF107RF77-YVB80M4，YQF107RF77-YVB90S4，YQF107RF77-YVP100L4，YQF107RF77-YVP112M4，YQF107RF77-YVP63M4，YQF107RF77-YVP71M4，YQF107RF77-YVP80M4，YQF107RF77-YVP90S4，YQF107RF77-YVPEJ100L4，YQF107RF77-YVPEJ112M4，YQF107RF77-YVPEJ63M4，YQF107RF77-YVPEJ71M4，YQF107RF77-YVPEJ80M4，YQF107RF77-YVPEJ90S4，WF107R77-Y0.12KW，WF107R77-Y0.18KW，WF107R77-Y0.25KW，WF107R77-Y0.37KW，WF107R77-Y0.55KW，WF107R77-Y0.75KW，WF107R77-Y1.1KW，WF107R77-Y1.5KW，WF107R77-Y100M4，WF107R77-Y112M4，WF107R77-Y2.2KW，WF107R77-Y3KW，WF107R77-Y4KW，WF107R77-Y63M4，WF107R77-Y71M4，WF107R77-Y80M4，WF107R77-Y90M4，WF107RF77-Y100M4，WF107RF77-Y112M4，WF107RF77-Y63M4，WF107RF77-Y71M4，WF107RF77-Y80M4，WF107RF77-Y90M4，WF107RF77-YB100L4，WF107RF77-YB112M4，WF107RF77-YB63M4，WF107RF77-YB71M4，WF107RF77-YB80M4，WF107RF77-YB90S4，WF107RF77-YDP100L4，WF107RF77-YDP112M4，WF107RF77-YDP63M4，WF107RF77-YDP71M4，WF107RF77-YDP80M4，WF107RF77-YDP90S4，WF107RF77-YE100L4，WF107RF77-YE112M4，WF107RF77-YE63M4，WF107RF77-YE71M4，WF107RF77-YE80M4，WF107RF77-YE90S4，WF107RF77-YEJ100L4，WF107RF77-YEJ112M4，WF107RF77-YEJ63M4，WF107RF77-YEJ71M4，WF107RF77-YEJ80M4，WF107RF77-YEJ90S4，WF107RF77-YEJB100L4，WF107RF77-YEJB112M4，WF107RF77-YEJB63M4，WF107RF77-YEJB71M4，WF107RF77-YEJB80M4，WF107RF77-YEJB90S4，WF107RF77-YP100L4，WF107RF77-YP112M4，WF107RF77-YP63M4，WF107RF77-YP71M4，WF107RF77-YP80M4，WF107RF77-YP90S4，WF107RF77-YPB100L4，WF107RF77-YPB112M4，WF107RF77-YPB63M4，WF107RF77-YPB71M4，WF107RF77-YPB80M4，WF107RF77-YPB90S4，WF107RF77-YPE100L4，WF107RF77-YPE112M4，WF107RF77-YPE63M4，WF107RF77-YPE71M4，WF107RF77-YPE80M4，WF107RF77-YPE90S4，WF107RF77-YS100L4，WF107RF77-YS112M4，WF107RF77-YS63M4，WF107RF77-YS71M4，WF107RF77-YS80M4，WF107RF77-YS90S4，WF107RF77-YVB100L4，WF107RF77-YVB112M4，WF107RF77-YVB63M4，WF107RF77-YVB71M4，WF107RF77-YVB80M4，WF107RF77-YVB90S4，WF107RF77-YVP100L4，WF107RF77-YVP112M4，WF107RF77-YVP63M4，WF107RF77-YVP71M4，WF107RF77-YVP80M4，WF107RF77-YVP90S4，WF107RF77-YVPEJ100L4，WF107RF77-YVPEJ112M4，WF107RF77-YVPEJ63M4，WF107RF77-YVPEJ71M4，WF107RF77-YVPEJ80M4，WF107RF77-YVPEJ90S4，XDF107R77-Y0.12KW，XDF107R77-Y0.18KW，XDF107R77-Y0.25KW，XDF107R77-Y0.37KW，XDF107R77-Y0.55KW，XDF107R77-Y0.75KW，XDF107R77-Y1.1KW，XDF107R77-Y1.5KW，XDF107R77-Y100M4，XDF107R77-Y112M4，XDF107R77-Y2.2KW，XDF107R77-Y3KW，XDF107R77-Y4KW，XDF107R77-Y63M4，XDF107R77-Y71M4，XDF107R77-Y80M4，XDF107R77-Y90M4，XDF107RF77-Y100M4，XDF107RF77-Y112M4，XDF107RF77-Y63M4，XDF107RF77-Y71M4，XDF107RF77-Y80M4，XDF107RF77-Y90M4，XDF107RF77-YB100L4，XDF107RF77-YB112M4，XDF107RF77-YB63M4，XDF107RF77-YB71M4，XDF107RF77-YB80M4，XDF107RF77-YB90S4，XDF107RF77-YDP100L4，XDF107RF77-YDP112M4，XDF107RF77-YDP63M4，XDF107RF77-YDP71M4，XDF107RF77-YDP80M4，XDF107RF77-YDP90S4，XDF107RF77-YE100L4，XDF107RF77-YE112M4，XDF107RF77-YE63M4，XDF107RF77-YE71M4，XDF107RF77-YE80M4，XDF107RF77-YE90S4，XDF107RF77-YEJ100L4，XDF107RF77-YEJ112M4，XDF107RF77-YEJ63M4，XDF107RF77-YEJ71M4，XDF107RF77-YEJ80M4，XDF107RF77-YEJ90S4，XDF107RF77-YEJB100L4，XDF107RF77-YEJB112M4，XDF107RF77-YEJB63M4，XDF107RF77-YEJB71M4，XDF107RF77-YEJB80M4，XDF107RF77-YEJB90S4，XDF107RF77-YP100L4，XDF107RF77-YP112M4，XDF107RF77-YP63M4，XDF107RF77-YP71M4，XDF107RF77-YP80M4，XDF107RF77-YP90S4，XDF107RF77-YPB100L4，XDF107RF77-YPB112M4，XDF107RF77-YPB63M4，XDF107RF77-YPB71M4，XDF107RF77-YPB80M4，XDF107RF77-YPB90S4，XDF107RF77-YPE100L4，XDF107RF77-YPE112M4，XDF107RF77-YPE63M4，XDF107RF77-YPE71M4，XDF107RF77-YPE80M4，XDF107RF77-YPE90S4，XDF107RF77-YS100L4，XDF107RF77-YS112M4，XDF107RF77-YS63M4，XDF107RF77-YS71M4，XDF107RF77-YS80M4，XDF107RF77-YS90S4，XDF107RF77-YVB100L4，XDF107RF77-YVB112M4，XDF107RF77-YVB63M4，XDF107RF77-YVB71M4，XDF107RF77-YVB80M4，XDF107RF77-YVB90S4，XDF107RF77-YVP100L4，XDF107RF77-YVP112M4，XDF107RF77-YVP63M4，XDF107RF77-YVP71M4，XDF107RF77-YVP80M4，XDF107RF77-YVP90S4，XDF107RF77-YVPEJ100L4，XDF107RF77-YVPEJ112M4，XDF107RF77-YVPEJ63M4，XDF107RF77-YVPEJ71M4，XDF107RF77-YVPEJ80M4，XDF107RF77-YVPEJ90S4，JCF107R77-Y0.12KW，JCF107R77-Y0.18KW，JCF107R77-Y0.25KW，JCF107R77-Y0.37KW，JCF107R77-Y0.55KW，JCF107R77-Y0.75KW，JCF107R77-Y1.1KW，JCF107R77-Y1.5KW，JCF107R77-Y100M4，JCF107R77-Y112M4，JCF107R77-Y2.2KW，JCF107R77-Y3KW，JCF107R77-Y4KW，JCF107R77-Y63M4，JCF107R77-Y71M4，JCF107R77-Y80M4，JCF107R77-Y90M4，JCF107RF77-Y100M4，JCF107RF77-Y112M4，JCF107RF77-Y63M4，JCF107RF77-Y71M4，JCF107RF77-Y80M4，JCF107RF77-Y90M4，JCF107RF77-YB100L4，JCF107RF77-YB112M4，JCF107RF77-YB63M4，JCF107RF77-YB71M4，JCF107RF77-YB80M4，JCF107RF77-YB90S4，JCF107RF77-YDP100L4，JCF107RF77-YDP112M4，JCF107RF77-YDP63M4，JCF107RF77-YDP71M4，JCF107RF77-YDP80M4，JCF107RF77-YDP90S4，JCF107RF77-YE100L4，JCF107RF77-YE112M4，JCF107RF77-YE63M4，JCF107RF77-YE71M4，JCF107RF77-YE80M4，JCF107RF77-YE90S4，JCF107RF77-YEJ100L4，JCF107RF77-YEJ112M4，JCF107RF77-YEJ63M4，JCF107RF77-YEJ71M4，JCF107RF77-YEJ80M4，JCF107RF77-YEJ90S4，JCF107RF77-YEJB100L4，JCF107RF77-YEJB112M4，JCF107RF77-YEJB63M4，JCF107RF77-YEJB71M4，JCF107RF77-YEJB80M4，JCF107RF77-YEJB90S4，JCF107RF77-YP100L4，JCF107RF77-YP112M4，JCF107RF77-YP63M4，JCF107RF77-YP71M4，JCF107RF77-YP80M4，JCF107RF77-YP90S4，JCF107RF77-YPB100L4，JCF107RF77-YPB112M4，JCF107RF77-YPB63M4，JCF107RF77-YPB71M4，JCF107RF77-YPB80M4，JCF107RF77-YPB90S4，JCF107RF77-YPE100L4，JCF107RF77-YPE112M4，JCF107RF77-YPE63M4，JCF107RF77-YPE71M4，JCF107RF77-YPE80M4，JCF107RF77-YPE90S4，JCF107RF77-YS100L4，JCF107RF77-YS112M4，JCF107RF77-YS63M4，JCF107RF77-YS71M4，JCF107RF77-YS80M4，JCF107RF77-YS90S4，JCF107RF77-YVB100L4，JCF107RF77-YVB112M4，JCF107RF77-YVB63M4，JCF107RF77-YVB71M4，JCF107RF77-YVB80M4，JCF107RF77-YVB90S4，JCF107RF77-YVP100L4，JCF107RF77-YVP112M4，JCF107RF77-YVP63M4，JCF107RF77-YVP71M4，JCF107RF77-YVP80M4，JCF107RF77-YVP90S4，JCF107RF77-YVPEJ100L4，JCF107RF77-YVPEJ112M4，JCF107RF77-YVPEJ63M4，JCF107RF77-YVPEJ71M4，JCF107RF77-YVPEJ80M4，JCF107RF77-YVPEJ90S4，NF107R77-Y0.12KW，NF107R77-Y0.18KW，NF107R77-Y0.25KW，NF107R77-Y0.37KW，NF107R77-Y0.55KW，NF107R77-Y0.75KW，NF107R77-Y1.1KW，NF107R77-Y1.5KW，NF107R77-Y100M4，NF107R77-Y112M4，NF107R77-Y2.2KW，NF107R77-Y3KW，NF107R77-Y4KW，NF107R77-Y63M4，NF107R77-Y71M4，NF107R77-Y80M4，NF107R77-Y90M4，NF107RF77-Y100M4，NF107RF77-Y112M4，NF107RF77-Y63M4，NF107RF77-Y71M4，NF107RF77-Y80M4，NF107RF77-Y90M4，NF107RF77-YB100L4，NF107RF77-YB112M4，NF107RF77-YB63M4，NF107RF77-YB71M4，NF107RF77-YB80M4，NF107RF77-YB90S4，NF107RF77-YDP100L4，NF107RF77-YDP112M4，NF107RF77-YDP63M4，NF107RF77-YDP71M4，NF107RF77-YDP80M4，NF107RF77-YDP90S4，NF107RF77-YE100L4，NF107RF77-YE112M4，NF107RF77-YE63M4，NF107RF77-YE71M4，NF107RF77-YE80M4，NF107RF77-YE90S4，NF107RF77-YEJ100L4，NF107RF77-YEJ112M4，NF107RF77-YEJ63M4，NF107RF77-YEJ71M4，NF107RF77-YEJ80M4，NF107RF77-YEJ90S4，NF107RF77-YEJB100L4，NF107RF77-YEJB112M4，NF107RF77-YEJB63M4，NF107RF77-YEJB71M4，NF107RF77-YEJB80M4，NF107RF77-YEJB90S4，NF107RF77-YP100L4，NF107RF77-YP112M4，NF107RF77-YP63M4，NF107RF77-YP71M4，NF107RF77-YP80M4，NF107RF77-YP90S4，NF107RF77-YPB100L4，NF107RF77-YPB112M4，NF107RF77-YPB63M4，NF107RF77-YPB71M4，NF107RF77-YPB80M4，NF107RF77-YPB90S4，NF107RF77-YPE100L4，NF107RF77-YPE112M4，NF107RF77-YPE63M4，NF107RF77-YPE71M4，NF107RF77-YPE80M4，NF107RF77-YPE90S4，NF107RF77-YS100L4，NF107RF77-YS112M4，NF107RF77-YS63M4，NF107RF77-YS71M4，NF107RF77-YS80M4，NF107RF77-YS90S4，NF107RF77-YVB100L4，NF107RF77-YVB112M4，NF107RF77-YVB63M4，NF107RF77-YVB71M4，NF107RF77-YVB80M4，NF107RF77-YVB90S4，NF107RF77-YVP100L4，NF107RF77-YVP112M4，NF107RF77-YVP63M4，NF107RF77-YVP71M4，NF107RF77-YVP80M4，NF107RF77-YVP90S4，NF107RF77-YVPEJ100L4，NF107RF77-YVPEJ112M4，NF107RF77-YVPEJ63M4，NF107RF77-YVPEJ71M4，NF107RF77-YVPEJ80M4，NF107RF77-YVPEJ90S4，SF107R77-Y0.12KW，SF107R77-Y0.18KW，SF107R77-Y0.25KW，SF107R77-Y0.37KW，SF107R77-Y0.55KW，SF107R77-Y0.75KW，SF107R77-Y1.1KW，SF107R77-Y1.5KW，SF107R77-Y100M4，SF107R77-Y112M4，SF107R77-Y2.2KW，SF107R77-Y3KW，SF107R77-Y4KW，SF107R77-Y63M4，SF107R77-Y71M4，SF107R77-Y80M4，SF107R77-Y90M4，SF107RF77-Y100M4，SF107RF77-Y112M4，SF107RF77-Y63M4，SF107RF77-Y71M4，SF107RF77-Y80M4，SF107RF77-Y90M4，SF107RF77-YB100L4，SF107RF77-YB112M4，SF107RF77-YB63M4，SF107RF77-YB71M4，SF107RF77-YB80M4，SF107RF77-YB90S4，SF107RF77-YDP100L4，SF107RF77-YDP112M4，SF107RF77-YDP63M4，SF107RF77-YDP71M4，SF107RF77-YDP80M4，SF107RF77-YDP90S4，SF107RF77-YE100L4，SF107RF77-YE112M4，SF107RF77-YE63M4，SF107RF77-YE71M4，SF107RF77-YE80M4，SF107RF77-YE90S4，SF107RF77-YEJ100L4，SF107RF77-YEJ112M4，SF107RF77-YEJ63M4，SF107RF77-YEJ71M4，SF107RF77-YEJ80M4，SF107RF77-YEJ90S4，SF107RF77-YEJB100L4，SF107RF77-YEJB112M4，SF107RF77-YEJB63M4，SF107RF77-YEJB71M4，SF107RF77-YEJB80M4，SF107RF77-YEJB90S4，SF107RF77-YP100L4，SF107RF77-YP112M4，SF107RF77-YP63M4，SF107RF77-YP71M4，SF107RF77-YP80M4，SF107RF77-YP90S4，SF107RF77-YPB100L4，SF107RF77-YPB112M4，SF107RF77-YPB63M4，SF107RF77-YPB71M4，SF107RF77-YPB80M4，SF107RF77-YPB90S4，SF107RF77-YPE100L4，SF107RF77-YPE112M4，SF107RF77-YPE63M4，SF107RF77-YPE71M4，SF107RF77-YPE80M4，SF107RF77-YPE90S4，SF107RF77-YS100L4，SF107RF77-YS112M4，SF107RF77-YS63M4，SF107RF77-YS71M4，SF107RF77-YS80M4，SF107RF77-YS90S4，SF107RF77-YVB100L4，SF107RF77-YVB112M4，SF107RF77-YVB63M4，SF107RF77-YVB71M4，SF107RF77-YVB80M4，SF107RF77-YVB90S4，SF107RF77-YVP100L4，SF107RF77-YVP112M4，SF107RF77-YVP63M4，SF107RF77-YVP71M4，SF107RF77-YVP80M4，SF107RF77-YVP90S4，SF107RF77-YVPEJ100L4，SF107RF77-YVPEJ112M4，SF107RF77-YVPEJ63M4，SF107RF77-YVPEJ71M4，SF107RF77-YVPEJ80M4，SF107RF77-YVPEJ90S4，AF107R77-Y0.12KW，AF107R77-Y0.18KW，AF107R77-Y0.25KW，AF107R77-Y0.37KW，AF107R77-Y0.55KW，AF107R77-Y0.75KW，AF107R77-Y1.1KW，AF107R77-Y1.5KW，AF107R77-Y100M4，AF107R77-Y112M4，AF107R77-Y2.2KW，AF107R77-Y3KW，AF107R77-Y4KW，AF107R77-Y63M4，AF107R77-Y71M4，AF107R77-Y80M4，AF107R77-Y90M4，AF107RF77-Y100M4，AF107RF77-Y112M4，AF107RF77-Y63M4，AF107RF77-Y71M4，AF107RF77-Y80M4，AF107RF77-Y90M4，AF107RF77-YB100L4，AF107RF77-YB112M4，AF107RF77-YB63M4，AF107RF77-YB71M4，AF107RF77-YB80M4，AF107RF77-YB90S4，AF107RF77-YDP100L4，AF107RF77-YDP112M4，AF107RF77-YDP63M4，AF107RF77-YDP71M4，AF107RF77-YDP80M4，AF107RF77-YDP90S4，AF107RF77-YE100L4，AF107RF77-YE112M4，AF107RF77-YE63M4，AF107RF77-YE71M4，AF107RF77-YE80M4，AF107RF77-YE90S4，AF107RF77-YEJ100L4，AF107RF77-YEJ112M4，AF107RF77-YEJ63M4，AF107RF77-YEJ71M4，AF107RF77-YEJ80M4，AF107RF77-YEJ90S4，AF107RF77-YEJB100L4，AF107RF77-YEJB112M4，AF107RF77-YEJB63M4，AF107RF77-YEJB71M4，AF107RF77-YEJB80M4，AF107RF77-YEJB90S4，AF107RF77-YP100L4，AF107RF77-YP112M4，AF107RF77-YP63M4，AF107RF77-YP71M4，AF107RF77-YP80M4，AF107RF77-YP90S4，AF107RF77-YPB100L4，AF107RF77-YPB112M4，AF107RF77-YPB63M4，AF107RF77-YPB71M4，AF107RF77-YPB80M4，AF107RF77-YPB90S4，AF107RF77-YPE100L4，AF107RF77-YPE112M4，AF107RF77-YPE63M4，AF107RF77-YPE71M4，AF107RF77-YPE80M4，AF107RF77-YPE90S4，AF107RF77-YS100L4，AF107RF77-YS112M4，AF107RF77-YS63M4，AF107RF77-YS71M4，AF107RF77-YS80M4，AF107RF77-YS90S4，AF107RF77-YVB100L4，AF107RF77-YVB112M4，AF107RF77-YVB63M4，AF107RF77-YVB71M4，AF107RF77-YVB80M4，AF107RF77-YVB90S4，AF107RF77-YVP100L4，AF107RF77-YVP112M4，AF107RF77-YVP63M4，AF107RF77-YVP71M4，AF107RF77-YVP80M4，AF107RF77-YVP90S4，AF107RF77-YVPEJ100L4，AF107RF77-YVPEJ112M4，AF107RF77-YVPEJ63M4，AF107RF77-YVPEJ71M4，AF107RF77-YVPEJ80M4，AF107RF77-YVPEJ90S4，FW107RW77-Y0.12KW，FW107RW77-Y0.18KW，FW107RW77-Y0.25KW，FW107RW77-Y0.37KW，FW107RW77-Y0.55KW，FW107RW77-Y0.75KW，FW107RW77-Y1.1KW，FW107RW77-Y1.5KW，FW107RW77-Y100M4，FW107RW77-Y112M4，FW107RW77-Y2.2KW，FW107RW77-Y3KW，FW107RW77-Y4KW，FW107RW77-Y63M4，FW107RW77-Y71M4，FW107RW77-Y80M4，FW107RW77-Y90M4，FW107RWF77-Y100M4，FW107RWF77-Y112M4，FW107RWF77-Y63M4，FW107RWF77-Y71M4，FW107RWF77-Y80M4，FW107RWF77-Y90M4，FW107RWF77-YB100L4，FW107RWF77-YB112M4，FW107RWF77-YB63M4，FW107RWF77-YB71M4，FW107RWF77-YB80M4，FW107RWF77-YB90S4，FW107RWF77-YDP100L4，FW107RWF77-YDP112M4，FW107RWF77-YDP63M4，FW107RWF77-YDP71M4，FW107RWF77-YDP80M4，FW107RWF77-YDP90S4，FW107RWF77-YE100L4，FW107RWF77-YE112M4，FW107RWF77-YE63M4，FW107RWF77-YE71M4，FW107RWF77-YE80M4，FW107RWF77-YE90S4，FW107RWF77-YEJ100L4，FW107RWF77-YEJ112M4，FW107RWF77-YEJ63M4，FW107RWF77-YEJ71M4，FW107RWF77-YEJ80M4，FW107RWF77-YEJ90S4，FW107RWF77-YEJB100L4，FW107RWF77-YEJB112M4，FW107RWF77-YEJB63M4，FW107RWF77-YEJB71M4，FW107RWF77-YEJB80M4，FW107RWF77-YEJB90S4，FW107RWF77-YP100L4，FW107RWF77-YP112M4，FW107RWF77-YP63M4，FW107RWF77-YP71M4，FW107RWF77-YP80M4，FW107RWF77-YP90S4，FW107RWF77-YPB100L4，FW107RWF77-YPB112M4，FW107RWF77-YPB63M4，FW107RWF77-YPB71M4，FW107RWF77-YPB80M4，FW107RWF77-YPB90S4，FW107RWF77-YPE100L4，FW107RWF77-YPE112M4，FW107RWF77-YPE63M4，FW107RWF77-YPE71M4，FW107RWF77-YPE80M4，FW107RWF77-YPE90S4，FW107RWF77-YS100L4，FW107RWF77-YS112M4，FW107RWF77-YS63M4，FW107RWF77-YS71M4，FW107RWF77-YS80M4，FW107RWF77-YS90S4，FW107RWF77-YVB100L4，FW107RWF77-YVB112M4，FW107RWF77-YVB63M4，FW107RWF77-YVB71M4，FW107RWF77-YVB80M4，FW107RWF77-YVB90S4，FW107RWF77-YVP100L4，FW107RWF77-YVP112M4，FW107RWF77-YVP63M4，FW107RWF77-YVP71M4，FW107RWF77-YVP80M4，FW107RWF77-YVP90S4，FW107RWF77-YVPEJ100L4，FW107RWF77-YVPEJ112M4，FW107RWF77-YVPEJ63M4，FW107RWF77-YVPEJ71M4，FW107RWF77-YVPEJ80M4，FW107RWF77-YVPEJ90S4，F109R79-Y0.12KW，F109R79-Y0.18KW，F109R79-Y0.25KW，F109R79-Y0.37KW，F109R79-Y0.55KW，F109R79-Y0.75KW，F109R79-Y1.1KW，F109R79-Y1.5KW，F109R79-Y100M4，F109R79-Y112M4，F109R79-Y2.2KW，F109R79-Y3KW，F109R79-Y4KW，F109R79-Y63M4，F109R79-Y71M4，F109R79-Y80M4，F109R79-Y90M4，F109RF79-Y100M4，F109RF79-Y112M4，F109RF79-Y63M4，F109RF79-Y71M4，F109RF79-Y80M4，F109RF79-Y90M4，F109RF79-YB100L4，F109RF79-YB112M4，F109RF79-YB63M4，F109RF79-YB71M4，F109RF79-YB80M4，F109RF79-YB90S4，F109RF79-YDP100L4，F109RF79-YDP112M4，F109RF79-YDP63M4，F109RF79-YDP71M4，F109RF79-YDP80M4，F109RF79-YDP90S4，F109RF79-YE100L4，F109RF79-YE112M4，F109RF79-YE63M4，F109RF79-YE71M4，F109RF79-YE80M4，F109RF79-YE90S4，F109RF79-YEJ100L4，F109RF79-YEJ112M4，F109RF79-YEJ63M4，F109RF79-YEJ71M4，F109RF79-YEJ80M4，F109RF79-YEJ90S4，F109RF79-YEJB100L4，F109RF79-YEJB112M4，F109RF79-YEJB63M4，F109RF79-YEJB71M4，F109RF79-YEJB80M4，F109RF79-YEJB90S4，F109RF79-YP100L4，F109RF79-YP112M4，F109RF79-YP63M4，F109RF79-YP71M4，F109RF79-YP80M4，F109RF79-YP90S4，F109RF79-YPB100L4，F109RF79-YPB112M4，F109RF79-YPB63M4，F109RF79-YPB71M4，F109RF79-YPB80M4，F109RF79-YPB90S4，F109RF79-YPE100L4，F109RF79-YPE112M4，F109RF79-YPE63M4，F109RF79-YPE71M4，F109RF79-YPE80M4，F109RF79-YPE90S4，F109RF79-YS100L4，F109RF79-YS112M4，F109RF79-YS63M4，F109RF79-YS71M4，F109RF79-YS80M4，F109RF79-YS90S4，F109RF79-YVB100L4，F109RF79-YVB112M4，F109RF79-YVB63M4，F109RF79-YVB71M4，F109RF79-YVB80M4，F109RF79-YVB90S4，F109RF79-YVP100L4，F109RF79-YVP112M4，F109RF79-YVP63M4，F109RF79-YVP71M4，F109RF79-YVP80M4，F109RF79-YVP90S4，F109RF79-YVPEJ100L4，F109RF79-YVPEJ112M4，F109RF79-YVPEJ63M4，F109RF79-YVPEJ71M4，F109RF79-YVPEJ80M4，F109RF79-YVPEJ90S4。

F109R79減速電機生產廠家：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.zhbhgs.cn/product/list-fxiliejiansuji-cn.html

推薦型號：F109減速機
