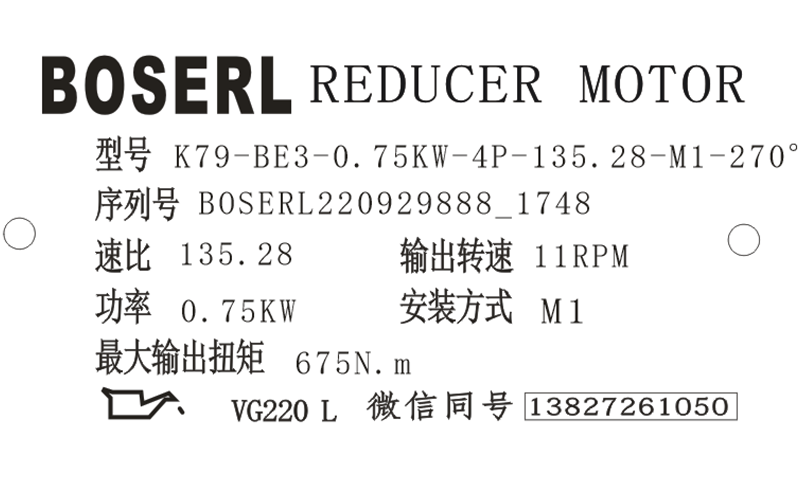

K79減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K79減速器選型樣本。
K79-BE3-0.75KW-4P-135.28-M1-270°
K：系列代號
79：減速機規格代號
BE3：電機
0.75KW：電機功率
4P：電機級數
135.28：減速機傳動比
M1：減速機安裝位置
270°：接線盒位置
K79減速器上的圖標說明：下表列出安裝位置章節中所采用的圖標及其含義
K79減速器安裝所需工具以及材料：
由于安裝位置的原因，從油位螺栓觀察，油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時，潤滑油加注油量和透氣閥的位置必須作相應的調整。K79減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近！同時還要檢查，注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。K79減速器在出廠時加注了相應油量的潤滑油。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將K79減速器的安裝位置改變為M5或M6，或者M5、M6之間的安裝位置，請您咨詢BOSERL公司客戶服務部。若要將K79減速器改裝成M2或M3時，請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕，請您在K79減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須＜109Ω。電化學腐蝕可能發生在不同的金屬物質之間，如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片！還要通過電機上的接地螺栓對K79減速器箱體進行連接接地。直角減速機
輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件（墊片、間隔環）、輸入/輸出元件的緊固裝置、 潤滑油（K79減速器出廠已經自帶潤滑油）、用于緊固螺栓的密封膠（針對帶對中軸肩的輸入軸裝置AD/ZR），所有的標準部件均不是供貨范圍。
K79減速器故障售后服務統籌：
K79減速器潤滑油泄露：K79減速器密封面密封性能不良，擰緊K79減速器蓋上的螺釘并觀察K79減速器。如果潤滑油繼續泄露，請向客戶服務部咨詢；密封圈損壞，請向客戶服務部咨詢；K79減速器透氣閥失效，給K79減速器透氣參見“K79減速器說明書的安裝位置”章節。齒輪減速電機
K79減速器異常、無規律的運轉噪音：軸承損壞，檢查潤滑油參見“K79減速器說明書的檢查/維護”章節，更換軸承；齒輪有損失，請向客戶服務部咨詢；潤滑油中有異物，檢查潤滑油參見“K79減速器說明書的檢查/維護”章節；傳動裝置停車，請向客戶服務部咨詢；
K79減速器潤滑油從透氣閥處滲出：潤滑油太多，調節油量參見“K79減速器說明書的檢查/維護”章節；K79減速器安裝位置錯誤，正確安裝透氣閥參見“K79減速器說明書的安裝位置”章節，調節油位參見“K79減速器說明書的檢查/維護”章節。
K79減速器電機或輸入軸轉動，而輸出軸不轉：K79減速器中的軸輪轂聯接斷裂，將K79減速器或減速電機送來我司修理。K系列減速機
在磨合期（48小時的運轉時間內）油封可能出現短期內的滲油或油脂的現象。對K79減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障，請與BOSERL公司客戶服務部聯系。
K79減速器型號：
KW77-Y0.25KW，KW77-Y0.37KW，KW77-Y0.55KW，KW77-Y0.75KW，KW77-Y1.1KW，KW77-Y1.5KW，KW77-Y100M4，KW77-Y112M4，KW77-Y11KW，KW77-Y132M4，KW77-Y160M4，KW77-Y2.2KW，KW77-Y3KW，KW77-Y4KW，KW77-Y5.5KW，KW77-Y7.5KW，KW77-Y71M4，KW77-Y80M4，KW77-Y90M4，KW77-YB100M4，KW77-YB112M4，KW77-YB132M4，KW77-YB160M4，KW77-YB71M4，KW77-YB80M4，KW77-YB90M4，KW77-YDP100M4，KW77-YDP112M4，KW77-YDP132M4，KW77-YDP160M4，KW77-YDP71M4，KW77-YDP80M4，KW77-YDP90M4，KW77-YE100M4，KW77-YE112M4，KW77-YE132M4，KW77-YE160M4，KW77-YE71M4，KW77-YE80M4，KW77-YE90M4，KW77-YEJ100M4，KW77-YEJ112M4，KW77-YEJ132M4，KW77-YEJ160M4，KW77-YEJ71M4，KW77-YEJ80M4，KW77-YEJ90M4，KW77-YEJB100M4，KW77-YEJB112M4，KW77-YEJB132M4，KW77-YEJB160M4，KW77-YEJB71M4，KW77-YEJB80M4，KW77-YEJB90M4，KW77-YP100M4，KW77-YP112M4，KW77-YP132M4，KW77-YP160M4，KW77-YP71M4，KW77-YP80M4，KW77-YP90M4，KW77-YPB100M4，KW77-YPB112M4，KW77-YPB132M4，KW77-YPB160M4，KW77-YPB71M4，KW77-YPB80M4，KW77-YPB90M4，KW77-YPE100M4，KW77-YPE112M4，KW77-YPE132M4，KW77-YPE160M4，KW77-YPE71M4，KW77-YPE80M4，KW77-YPE90M4，KW77-YS100M4，KW77-YS112M4，KW77-YS132M4，KW77-YS160M4，KW77-YS71M4，KW77-YS80M4，KW77-YS90M4，KW77-YVB100M4，KW77-YVB112M4，KW77-YVB132M4，KW77-YVB160M4，KW77-YVB71M4，KW77-YVB80M4，KW77-YVB90M4，KW77-YVP100M4，KW77-YVP112M4，KW77-YVP132M4，KW77-YVP160M4，KW77-YVP71M4，KW77-YVP80M4，KW77-YVP90M4，KW77-YVPEJ100M4，KW77-YVPEJ112M4，KW77-YVPEJ132M4，KW77-YVPEJ160M4，KW77-YVPEJ71M4，KW77-YVPEJ80M4，KW77-YVPEJ90M4，XDK77-Y0.25KW，XDK77-Y0.37KW，XDK77-Y0.55KW，XDK77-Y0.75KW，XDK77-Y1.1KW，XDK77-Y1.5KW，XDK77-Y100M4，XDK77-Y112M4，XDK77-Y11KW，XDK77-Y132M4，XDK77-Y160M4，XDK77-Y2.2KW，XDK77-Y3KW，XDK77-Y4KW，XDK77-Y5.5KW，XDK77-Y7.5KW，XDK77-Y71M4，XDK77-Y80M4，XDK77-Y90M4，XDK77-YB100M4，XDK77-YB112M4，XDK77-YB132M4，XDK77-YB160M4，XDK77-YB71M4，XDK77-YB80M4，XDK77-YB90M4，XDK77-YDP100M4，XDK77-YDP112M4，XDK77-YDP132M4，XDK77-YDP160M4，XDK77-YDP71M4，XDK77-YDP80M4，XDK77-YDP90M4，XDK77-YE100M4，XDK77-YE112M4，XDK77-YE132M4，XDK77-YE160M4，XDK77-YE71M4，XDK77-YE80M4，XDK77-YE90M4，XDK77-YEJ100M4，XDK77-YEJ112M4，XDK77-YEJ132M4，XDK77-YEJ160M4，XDK77-YEJ71M4，XDK77-YEJ80M4，XDK77-YEJ90M4，XDK77-YEJB100M4，XDK77-YEJB112M4，XDK77-YEJB132M4，XDK77-YEJB160M4，XDK77-YEJB71M4，XDK77-YEJB80M4，XDK77-YEJB90M4，XDK77-YP100M4，XDK77-YP112M4，XDK77-YP132M4，XDK77-YP160M4，XDK77-YP71M4，XDK77-YP80M4，XDK77-YP90M4，XDK77-YPB100M4，XDK77-YPB112M4，XDK77-YPB132M4，XDK77-YPB160M4，XDK77-YPB71M4，XDK77-YPB80M4，XDK77-YPB90M4，XDK77-YPE100M4，XDK77-YPE112M4，XDK77-YPE132M4，XDK77-YPE160M4，XDK77-YPE71M4，XDK77-YPE80M4，XDK77-YPE90M4，XDK77-YS100M4，XDK77-YS112M4，XDK77-YS132M4，XDK77-YS160M4，XDK77-YS71M4，XDK77-YS80M4，XDK77-YS90M4，XDK77-YVB100M4，XDK77-YVB112M4，XDK77-YVB132M4，XDK77-YVB160M4，XDK77-YVB71M4，XDK77-YVB80M4，XDK77-YVB90M4，XDK77-YVP100M4，XDK77-YVP112M4，XDK77-YVP132M4，XDK77-YVP160M4，XDK77-YVP71M4，XDK77-YVP80M4，XDK77-YVP90M4，XDK77-YVPEJ100M4，XDK77-YVPEJ112M4，XDK77-YVPEJ132M4，XDK77-YVPEJ160M4，XDK77-YVPEJ71M4，XDK77-YVPEJ80M4，XDK77-YVPEJ90M4，YQK77-Y0.25KW，YQK77-Y0.37KW，YQK77-Y0.55KW，YQK77-Y0.75KW，YQK77-Y1.1KW，YQK77-Y1.5KW，YQK77-Y100M4，YQK77-Y112M4，YQK77-Y11KW，YQK77-Y132M4，YQK77-Y160M4，YQK77-Y2.2KW，YQK77-Y3KW，YQK77-Y4KW，YQK77-Y5.5KW，YQK77-Y7.5KW，YQK77-Y71M4，YQK77-Y80M4，YQK77-Y90M4，YQK77-YB100M4，YQK77-YB112M4，YQK77-YB132M4，YQK77-YB160M4，YQK77-YB71M4，YQK77-YB80M4，YQK77-YB90M4，YQK77-YDP100M4，YQK77-YDP112M4，YQK77-YDP132M4，YQK77-YDP160M4，YQK77-YDP71M4，YQK77-YDP80M4，YQK77-YDP90M4，YQK77-YE100M4，YQK77-YE112M4，YQK77-YE132M4，YQK77-YE160M4，YQK77-YE71M4，YQK77-YE80M4，YQK77-YE90M4，YQK77-YEJ100M4，YQK77-YEJ112M4，YQK77-YEJ132M4，YQK77-YEJ160M4，YQK77-YEJ71M4，YQK77-YEJ80M4，YQK77-YEJ90M4，YQK77-YEJB100M4，YQK77-YEJB112M4，YQK77-YEJB132M4，YQK77-YEJB160M4，YQK77-YEJB71M4，YQK77-YEJB80M4，YQK77-YEJB90M4，YQK77-YP100M4，YQK77-YP112M4，YQK77-YP132M4，YQK77-YP160M4，YQK77-YP71M4，YQK77-YP80M4，YQK77-YP90M4，YQK77-YPB100M4，YQK77-YPB112M4，YQK77-YPB132M4，YQK77-YPB160M4，YQK77-YPB71M4，YQK77-YPB80M4，YQK77-YPB90M4，YQK77-YPE100M4，YQK77-YPE112M4，YQK77-YPE132M4，YQK77-YPE160M4，YQK77-YPE71M4，YQK77-YPE80M4，YQK77-YPE90M4，YQK77-YS100M4，YQK77-YS112M4，YQK77-YS132M4，YQK77-YS160M4，YQK77-YS71M4，YQK77-YS80M4，YQK77-YS90M4，YQK77-YVB100M4，YQK77-YVB112M4，YQK77-YVB132M4，YQK77-YVB160M4，YQK77-YVB71M4，YQK77-YVB80M4，YQK77-YVB90M4，YQK77-YVP100M4，YQK77-YVP112M4，YQK77-YVP132M4，YQK77-YVP160M4，YQK77-YVP71M4，YQK77-YVP80M4，YQK77-YVP90M4，YQK77-YVPEJ100M4，YQK77-YVPEJ112M4，YQK77-YVPEJ132M4，YQK77-YVPEJ160M4，YQK77-YVPEJ71M4，YQK77-YVPEJ80M4，YQK77-YVPEJ90M4，JCK77-Y0.25KW，JCK77-Y0.37KW，JCK77-Y0.55KW，JCK77-Y0.75KW，JCK77-Y1.1KW，JCK77-Y1.5KW，JCK77-Y100M4，JCK77-Y112M4，JCK77-Y11KW，JCK77-Y132M4，JCK77-Y160M4，JCK77-Y2.2KW，JCK77-Y3KW，JCK77-Y4KW，JCK77-Y5.5KW，JCK77-Y7.5KW，JCK77-Y71M4，JCK77-Y80M4，JCK77-Y90M4，JCK77-YB100M4，JCK77-YB112M4，JCK77-YB132M4，JCK77-YB160M4，JCK77-YB71M4，JCK77-YB80M4，JCK77-YB90M4，JCK77-YDP100M4，JCK77-YDP112M4，JCK77-YDP132M4，JCK77-YDP160M4，JCK77-YDP71M4，JCK77-YDP80M4，JCK77-YDP90M4，JCK77-YE100M4，JCK77-YE112M4，JCK77-YE132M4，JCK77-YE160M4，JCK77-YE71M4，JCK77-YE80M4，JCK77-YE90M4，JCK77-YEJ100M4，JCK77-YEJ112M4，JCK77-YEJ132M4，JCK77-YEJ160M4，JCK77-YEJ71M4，JCK77-YEJ80M4，JCK77-YEJ90M4，JCK77-YEJB100M4，JCK77-YEJB112M4，JCK77-YEJB132M4，JCK77-YEJB160M4，JCK77-YEJB71M4，JCK77-YEJB80M4，JCK77-YEJB90M4，JCK77-YP100M4，JCK77-YP112M4，JCK77-YP132M4，JCK77-YP160M4，JCK77-YP71M4，JCK77-YP80M4，JCK77-YP90M4，JCK77-YPB100M4，JCK77-YPB112M4，JCK77-YPB132M4，JCK77-YPB160M4，JCK77-YPB71M4，JCK77-YPB80M4，JCK77-YPB90M4，JCK77-YPE100M4，JCK77-YPE112M4，JCK77-YPE132M4，JCK77-YPE160M4，JCK77-YPE71M4，JCK77-YPE80M4，JCK77-YPE90M4，JCK77-YS100M4，JCK77-YS112M4，JCK77-YS132M4，JCK77-YS160M4，JCK77-YS71M4，JCK77-YS80M4，JCK77-YS90M4，JCK77-YVB100M4，JCK77-YVB112M4，JCK77-YVB132M4，JCK77-YVB160M4，JCK77-YVB71M4，JCK77-YVB80M4，JCK77-YVB90M4，JCK77-YVP100M4，JCK77-YVP112M4，JCK77-YVP132M4，JCK77-YVP160M4，JCK77-YVP71M4，JCK77-YVP80M4，JCK77-YVP90M4，JCK77-YVPEJ100M4，JCK77-YVPEJ112M4，JCK77-YVPEJ132M4，JCK77-YVPEJ160M4，JCK77-YVPEJ71M4，JCK77-YVPEJ80M4，JCK77-YVPEJ90M4，K79-Y0.25KW，K79-Y0.37KW，K79-Y0.55KW，K79-Y0.75KW，K79-Y1.1KW，K79-Y1.5KW，K79-Y100M4，K79-Y112M4，K79-Y11KW，K79-Y132M4，K79-Y160M4，K79-Y2.2KW，K79-Y3KW，K79-Y4KW，K79-Y5.5KW，K79-Y7.5KW，K79-Y71M4，K79-Y80M4，K79-Y90M4，K79-YB100M4，K79-YB112M4，K79-YB132M4，K79-YB160M4，K79-YB71M4，K79-YB80M4，K79-YB90M4，K79-YDP100M4，K79-YDP112M4，K79-YDP132M4，K79-YDP160M4，K79-YDP71M4，K79-YDP80M4，K79-YDP90M4，K79-YE100M4，K79-YE112M4，K79-YE132M4，K79-YE160M4，K79-YE71M4，K79-YE80M4，K79-YE90M4，K79-YEJ100M4，K79-YEJ112M4，K79-YEJ132M4，K79-YEJ160M4，K79-YEJ71M4，K79-YEJ80M4，K79-YEJ90M4，K79-YEJB100M4，K79-YEJB112M4，K79-YEJB132M4，K79-YEJB160M4，K79-YEJB71M4，K79-YEJB80M4，K79-YEJB90M4，K79-YP100M4，K79-YP112M4，K79-YP132M4，K79-YP160M4，K79-YP71M4，K79-YP80M4，K79-YP90M4，K79-YPB100M4，K79-YPB112M4，K79-YPB132M4，K79-YPB160M4，K79-YPB71M4，K79-YPB80M4，K79-YPB90M4，K79-YPE100M4，K79-YPE112M4，K79-YPE132M4，K79-YPE160M4，K79-YPE71M4，K79-YPE80M4，K79-YPE90M4，K79-YS100M4，K79-YS112M4，K79-YS132M4，K79-YS160M4，K79-YS71M4，K79-YS80M4，K79-YS90M4，K79-YVB100M4，K79-YVB112M4，K79-YVB132M4，K79-YVB160M4，K79-YVB71M4，K79-YVB80M4，K79-YVB90M4，K79-YVP100M4，K79-YVP112M4，K79-YVP132M4，K79-YVP160M4，K79-YVP71M4，K79-YVP80M4，K79-YVP90M4，K79-YVPEJ100M4，K79-YVPEJ112M4，K79-YVPEJ132M4，K79-YVPEJ160M4，K79-YVPEJ71M4，K79-YVPEJ80M4，K79-YVPEJ90M4，K77SF80，K77SF90，K77SF100，K77SF112，K77SF115，K77SF140，K77SF160，K77SF190。
K79減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.zhbhgs.cn/product/list-kxiliejiansuji-cn.html
推薦類似型號：K79減速機
關鍵詞:雙出軸減速機帶電機一體機_K系列減速機_90度減速機_螺旋錐齒輪減速機_螺旋錐齒輪減速器_GK系列減速機_K系列減速器_雙出軸減速器_90度減速器
K系列齒輪減速電機型號：K39減速機,K49減速機,K59減速機,K69減速機,K79減速機,K89減速機,K99減速機,K109減速機,K129減速機,K159減速機,K169減速機,K189減速機
K系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
