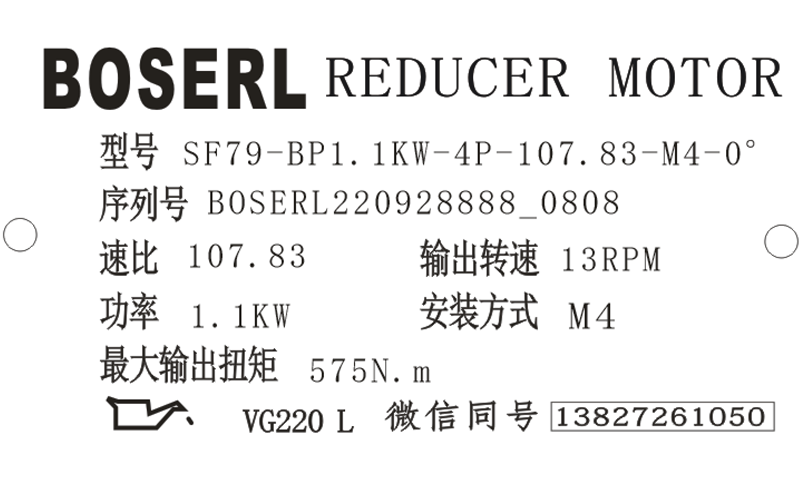

SF79減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SF79減速器選型樣本。
SF79-BP1.1KW-4P-107.83-M4-0°
SF：系列代號
79：減速機規格代號
BP：電機
1.1KW：電機功率
4P：電機級數
107.83：減速機傳動比
M4：減速機安裝位置
0°：接線盒位置
SF79減速器透氣閥開啟操作教程：
安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動SF79減速器前拆下透氣閥的運輸保險！齒輪減速電機
第一步帶運輸橡膠圈的透氣閥；
第二步拆下運輸橡膠圈；
第三步已經開啟的透氣閥。
SF79減速器安裝操作的正確方法：
SF79減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的SF79減速器選型樣本”）。自鎖減速機
SF79減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。
SF79減速器的透氣：安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列SF79減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的SF79減速器，啟動SF79減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。伺服電機蝸輪蝸桿減速機
SF79減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。
SF79減速器型號：
ASF77-Y0.25KW，ASF77-Y0.37KW，ASF77-Y0.55KW，ASF77-Y0.75KW，ASF77-Y1.1KW，ASF77-Y1.5KW，ASF77-Y100M4，ASF77-Y112M4，ASF77-Y132M4，ASF77-Y2.2KW，ASF77-Y3KW，ASF77-Y4KW，ASF77-Y5.5KW，ASF77-Y7.5KW，ASF77-Y71M4，ASF77-Y80M4，ASF77-Y90M4，ASF77-YB100M4，ASF77-YB112M4，ASF77-YB132M4，ASF77-YB71M4，ASF77-YB80M4，ASF77-YB90M4，ASF77-YDP100M4，ASF77-YDP112M4，ASF77-YDP132M4，ASF77-YDP71M4，ASF77-YDP80M4，ASF77-YDP90M4，ASF77-YE100M4，ASF77-YE112M4，ASF77-YE132M4，ASF77-YE71M4，ASF77-YE80M4，ASF77-YE90M4，ASF77-YEJ100M4，ASF77-YEJ112M4，ASF77-YEJ132M4，ASF77-YEJ71M4，ASF77-YEJ80M4，ASF77-YEJ90M4，ASF77-YEJB100M4，ASF77-YEJB112M4，ASF77-YEJB132M4，ASF77-YEJB71M4，ASF77-YEJB80M4，ASF77-YEJB90M4，ASF77-YP100M4，ASF77-YP112M4，ASF77-YP132M4，ASF77-YP71M4，ASF77-YP80M4，ASF77-YP90M4，ASF77-YPB100M4，ASF77-YPB112M4，ASF77-YPB132M4，ASF77-YPB71M4，ASF77-YPB80M4，ASF77-YPB90M4，ASF77-YPE100M4，ASF77-YPE112M4，ASF77-YPE132M4，ASF77-YPE71M4，ASF77-YPE80M4，ASF77-YPE90M4，ASF77-YS100M4，ASF77-YS112M4，ASF77-YS132M4，ASF77-YS71M4，ASF77-YS80M4，ASF77-YS90M4，ASF77-YVB100M4，ASF77-YVB112M4，ASF77-YVB132M4，ASF77-YVB71M4，ASF77-YVB80M4，ASF77-YVB90M4，ASF77-YVP100M4，ASF77-YVP112M4，ASF77-YVP132M4，ASF77-YVP71M4，ASF77-YVP80M4，ASF77-YVP90M4，ASF77-YVPEJ100M4，ASF77-YVPEJ112M4，ASF77-YVPEJ132M4，ASF77-YVPEJ71M4，ASF77-YVPEJ80M4，ASF77-YVPEJ90M4，WSF77-Y0.25KW，WSF77-Y0.37KW，WSF77-Y0.55KW，WSF77-Y0.75KW，WSF77-Y1.1KW，WSF77-Y1.5KW，WSF77-Y100M4，WSF77-Y112M4，WSF77-Y132M4，WSF77-Y2.2KW，WSF77-Y3KW，WSF77-Y4KW，WSF77-Y5.5KW，WSF77-Y7.5KW，WSF77-Y71M4，WSF77-Y80M4，WSF77-Y90M4，WSF77-YB100M4，WSF77-YB112M4，WSF77-YB132M4，WSF77-YB71M4，WSF77-YB80M4，WSF77-YB90M4，WSF77-YDP100M4，WSF77-YDP112M4，WSF77-YDP132M4，WSF77-YDP71M4，WSF77-YDP80M4，WSF77-YDP90M4，WSF77-YE100M4，WSF77-YE112M4，WSF77-YE132M4，WSF77-YE71M4，WSF77-YE80M4，WSF77-YE90M4，WSF77-YEJ100M4，WSF77-YEJ112M4，WSF77-YEJ132M4，WSF77-YEJ71M4，WSF77-YEJ80M4，WSF77-YEJ90M4，WSF77-YEJB100M4，WSF77-YEJB112M4，WSF77-YEJB132M4，WSF77-YEJB71M4，WSF77-YEJB80M4，WSF77-YEJB90M4，WSF77-YP100M4，WSF77-YP112M4，WSF77-YP132M4，WSF77-YP71M4，WSF77-YP80M4，WSF77-YP90M4，WSF77-YPB100M4，WSF77-YPB112M4，WSF77-YPB132M4，WSF77-YPB71M4，WSF77-YPB80M4，WSF77-YPB90M4，WSF77-YPE100M4，WSF77-YPE112M4，WSF77-YPE132M4，WSF77-YPE71M4，WSF77-YPE80M4，WSF77-YPE90M4，WSF77-YS100M4，WSF77-YS112M4，WSF77-YS132M4，WSF77-YS71M4，WSF77-YS80M4，WSF77-YS90M4，WSF77-YVB100M4，WSF77-YVB112M4，WSF77-YVB132M4，WSF77-YVB71M4，WSF77-YVB80M4，WSF77-YVB90M4，WSF77-YVP100M4，WSF77-YVP112M4，WSF77-YVP132M4，WSF77-YVP71M4，WSF77-YVP80M4，WSF77-YVP90M4，WSF77-YVPEJ100M4，WSF77-YVPEJ112M4，WSF77-YVPEJ132M4，WSF77-YVPEJ71M4，WSF77-YVPEJ80M4，WSF77-YVPEJ90M4，NSF77-Y0.25KW，NSF77-Y0.37KW，NSF77-Y0.55KW，NSF77-Y0.75KW，NSF77-Y1.1KW，NSF77-Y1.5KW，NSF77-Y100M4，NSF77-Y112M4，NSF77-Y132M4，NSF77-Y2.2KW，NSF77-Y3KW，NSF77-Y4KW，NSF77-Y5.5KW，NSF77-Y7.5KW，NSF77-Y71M4，NSF77-Y80M4，NSF77-Y90M4，NSF77-YB100M4，NSF77-YB112M4，NSF77-YB132M4，NSF77-YB71M4，NSF77-YB80M4，NSF77-YB90M4，NSF77-YDP100M4，NSF77-YDP112M4，NSF77-YDP132M4，NSF77-YDP71M4，NSF77-YDP80M4，NSF77-YDP90M4，NSF77-YE100M4，NSF77-YE112M4，NSF77-YE132M4，NSF77-YE71M4，NSF77-YE80M4，NSF77-YE90M4，NSF77-YEJ100M4，NSF77-YEJ112M4，NSF77-YEJ132M4，NSF77-YEJ71M4，NSF77-YEJ80M4，NSF77-YEJ90M4，NSF77-YEJB100M4，NSF77-YEJB112M4，NSF77-YEJB132M4，NSF77-YEJB71M4，NSF77-YEJB80M4，NSF77-YEJB90M4，NSF77-YP100M4，NSF77-YP112M4，NSF77-YP132M4，NSF77-YP71M4，NSF77-YP80M4，NSF77-YP90M4，NSF77-YPB100M4，NSF77-YPB112M4，NSF77-YPB132M4，NSF77-YPB71M4，NSF77-YPB80M4，NSF77-YPB90M4，NSF77-YPE100M4，NSF77-YPE112M4，NSF77-YPE132M4，NSF77-YPE71M4，NSF77-YPE80M4，NSF77-YPE90M4，NSF77-YS100M4，NSF77-YS112M4，NSF77-YS132M4，NSF77-YS71M4，NSF77-YS80M4，NSF77-YS90M4，NSF77-YVB100M4，NSF77-YVB112M4，NSF77-YVB132M4，NSF77-YVB71M4，NSF77-YVB80M4，NSF77-YVB90M4，NSF77-YVP100M4，NSF77-YVP112M4，NSF77-YVP132M4，NSF77-YVP71M4，NSF77-YVP80M4，NSF77-YVP90M4，NSF77-YVPEJ100M4，NSF77-YVPEJ112M4，NSF77-YVPEJ132M4，NSF77-YVPEJ71M4，NSF77-YVPEJ80M4，NSF77-YVPEJ90M4，SSF77-Y0.25KW，SSF77-Y0.37KW，SSF77-Y0.55KW，SSF77-Y0.75KW，SSF77-Y1.1KW，SSF77-Y1.5KW，SSF77-Y100M4，SSF77-Y112M4，SSF77-Y132M4，SSF77-Y2.2KW，SSF77-Y3KW，SSF77-Y4KW，SSF77-Y5.5KW，SSF77-Y7.5KW，SSF77-Y71M4，SSF77-Y80M4，SSF77-Y90M4，SSF77-YB100M4，SSF77-YB112M4，SSF77-YB132M4，SSF77-YB71M4，SSF77-YB80M4，SSF77-YB90M4，SSF77-YDP100M4，SSF77-YDP112M4，SSF77-YDP132M4，SSF77-YDP71M4，SSF77-YDP80M4，SSF77-YDP90M4，SSF77-YE100M4，SSF77-YE112M4，SSF77-YE132M4，SSF77-YE71M4，SSF77-YE80M4，SSF77-YE90M4，SSF77-YEJ100M4，SSF77-YEJ112M4，SSF77-YEJ132M4，SSF77-YEJ71M4，SSF77-YEJ80M4，SSF77-YEJ90M4，SSF77-YEJB100M4，SSF77-YEJB112M4，SSF77-YEJB132M4，SSF77-YEJB71M4，SSF77-YEJB80M4，SSF77-YEJB90M4，SSF77-YP100M4，SSF77-YP112M4，SSF77-YP132M4，SSF77-YP71M4，SSF77-YP80M4，SSF77-YP90M4，SSF77-YPB100M4，SSF77-YPB112M4，SSF77-YPB132M4，SSF77-YPB71M4，SSF77-YPB80M4，SSF77-YPB90M4，SSF77-YPE100M4，SSF77-YPE112M4，SSF77-YPE132M4，SSF77-YPE71M4，SSF77-YPE80M4，SSF77-YPE90M4，SSF77-YS100M4，SSF77-YS112M4，SSF77-YS132M4，SSF77-YS71M4，SSF77-YS80M4，SSF77-YS90M4，SSF77-YVB100M4，SSF77-YVB112M4，SSF77-YVB132M4，SSF77-YVB71M4，SSF77-YVB80M4，SSF77-YVB90M4，SSF77-YVP100M4，SSF77-YVP112M4，SSF77-YVP132M4，SSF77-YVP71M4，SSF77-YVP80M4，SSF77-YVP90M4，SSF77-YVPEJ100M4，SSF77-YVPEJ112M4，SSF77-YVPEJ132M4，SSF77-YVPEJ71M4，SSF77-YVPEJ80M4，SSF77-YVPEJ90M4，GSF79-Y0.25KW，GSF79-Y0.37KW，GSF79-Y0.55KW，GSF79-Y0.75KW，GSF79-Y1.1KW，GSF79-Y1.5KW，GSF79-Y100M4，GSF79-Y112M4，GSF79-Y132M4，GSF79-Y2.2KW，GSF79-Y3KW，GSF79-Y4KW，GSF79-Y5.5KW，GSF79-Y7.5KW，GSF79-Y71M4，GSF79-Y80M4，GSF79-Y90M4，GSF79-YB100M4，GSF79-YB112M4，GSF79-YB132M4，GSF79-YB71M4，GSF79-YB80M4，GSF79-YB90M4，GSF79-YDP100M4，GSF79-YDP112M4，GSF79-YDP132M4，GSF79-YDP71M4，GSF79-YDP80M4，GSF79-YDP90M4，GSF79-YE100M4，GSF79-YE112M4，GSF79-YE132M4，GSF79-YE71M4，GSF79-YE80M4，GSF79-YE90M4，GSF79-YEJ100M4，GSF79-YEJ112M4，GSF79-YEJ132M4，GSF79-YEJ71M4，GSF79-YEJ80M4，GSF79-YEJ90M4，GSF79-YEJB100M4，GSF79-YEJB112M4，GSF79-YEJB132M4，GSF79-YEJB71M4，GSF79-YEJB80M4，GSF79-YEJB90M4，GSF79-YP100M4，GSF79-YP112M4，GSF79-YP132M4，GSF79-YP71M4，GSF79-YP80M4，GSF79-YP90M4，GSF79-YPB100M4，GSF79-YPB112M4，GSF79-YPB132M4，GSF79-YPB71M4，GSF79-YPB80M4，GSF79-YPB90M4，GSF79-YPE100M4，GSF79-YPE112M4，GSF79-YPE132M4，GSF79-YPE71M4，GSF79-YPE80M4，GSF79-YPE90M4，GSF79-YS100M4，GSF79-YS112M4，GSF79-YS132M4，GSF79-YS71M4，GSF79-YS80M4，GSF79-YS90M4，GSF79-YVB100M4，GSF79-YVB112M4，GSF79-YVB132M4，GSF79-YVB71M4，GSF79-YVB80M4，GSF79-YVB90M4，GSF79-YVP100M4，GSF79-YVP112M4，GSF79-YVP132M4，GSF79-YVP71M4，GSF79-YVP80M4，GSF79-YVP90M4，GSF79-YVPEJ100M4，GSF79-YVPEJ112M4，GSF79-YVPEJ132M4，GSF79-YVPEJ71M4，GSF79-YVPEJ80M4，GSF79-YVPEJ90M4，SF77SF80，SF77SF90，SF77SF100，SF77SF112，SF77SF115，SF77SF140，SF77SF160，SF77SF190。
SF79減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.zhbhgs.cn/product/list-sfxiliejiansuji-cn.html
推薦類似型號：S79減速機
關鍵詞:帶伺服電機蝸輪蝸桿減速機一體機_蝸輪蝸桿減速機制造廠家_SF系列減速機_伺服蝸輪蝸桿減速機_SF系列減速器_GSF系列減速機_伺服電機蝸輪蝸桿減速器_伺服蝸輪蝸桿減速器
SF系列減速機型號：SF39減速機,SF49減速機,SF59減速機,SF69減速機,SF79減速機,SF89減速機,SF99齒輪減速電機
SF系列自鎖減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
