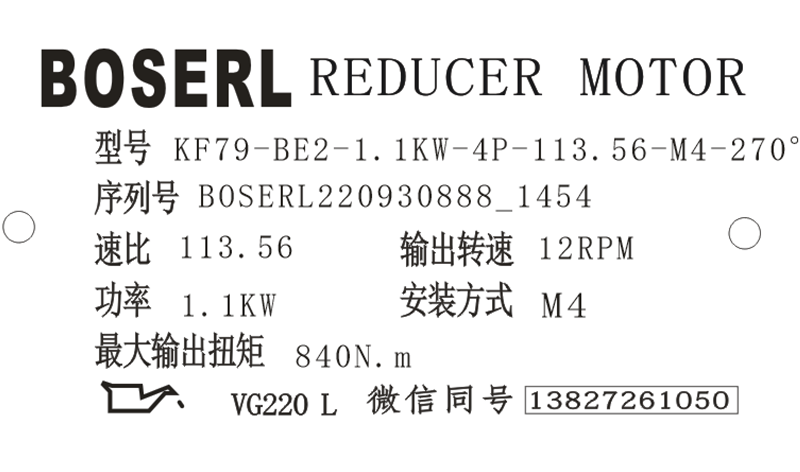

KF79減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KF79減速器選型樣本。
KF79-BE2-1.1KW-4P-113.56-M4-270°
KF：系列代號
79：減速機規格代號
BE2：電機
1.1KW：電機功率
4P：電機級數
113.56：減速機傳動比
M4：減速機安裝位置
270°：接線盒位置
KF79減速器透氣閥開啟操作教程：
安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動KF79減速器前拆下透氣閥的運輸保險！齒輪減速電機
第一步帶運輸橡膠圈的透氣閥；
第二步拆下運輸橡膠圈；
第三步已經開啟的透氣閥。
KF79減速器安裝操作的正確方法：
KF79減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。
KF79減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的KF79減速器選型樣本”）。直角減速機
KF79減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。
KF79減速器的透氣：安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列KF79減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的KF79減速器，啟動KF79減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。伺服電機減速機
KF79減速器型號：
KWF77-Y0.25KWF，KWF77-Y0.37KWF，KWF77-Y0.55KWF，KWF77-Y0.75KWF，KWF77-Y1.1KWF，KWF77-Y1.5KWF，KWF77-Y100M4，KWF77-Y112M4，KWF77-Y11KWF，KWF77-Y132M4，KWF77-Y160M4，KWF77-Y2.2KWF，KWF77-Y3KWF，KWF77-Y4KWF，KWF77-Y5.5KWF，KWF77-Y7.5KWF，KWF77-Y71M4，KWF77-Y80M4，KWF77-Y90M4，KWF77-YB100M4，KWF77-YB112M4，KWF77-YB132M4，KWF77-YB160M4，KWF77-YB71M4，KWF77-YB80M4，KWF77-YB90M4，KWF77-YDP100M4，KWF77-YDP112M4，KWF77-YDP132M4，KWF77-YDP160M4，KWF77-YDP71M4，KWF77-YDP80M4，KWF77-YDP90M4，KWF77-YE100M4，KWF77-YE112M4，KWF77-YE132M4，KWF77-YE160M4，KWF77-YE71M4，KWF77-YE80M4，KWF77-YE90M4，KWF77-YEJ100M4，KWF77-YEJ112M4，KWF77-YEJ132M4，KWF77-YEJ160M4，KWF77-YEJ71M4，KWF77-YEJ80M4，KWF77-YEJ90M4，KWF77-YEJB100M4，KWF77-YEJB112M4，KWF77-YEJB132M4，KWF77-YEJB160M4，KWF77-YEJB71M4，KWF77-YEJB80M4，KWF77-YEJB90M4，KWF77-YP100M4，KWF77-YP112M4，KWF77-YP132M4，KWF77-YP160M4，KWF77-YP71M4，KWF77-YP80M4，KWF77-YP90M4，KWF77-YPB100M4，KWF77-YPB112M4，KWF77-YPB132M4，KWF77-YPB160M4，KWF77-YPB71M4，KWF77-YPB80M4，KWF77-YPB90M4，KWF77-YPE100M4，KWF77-YPE112M4，KWF77-YPE132M4，KWF77-YPE160M4，KWF77-YPE71M4，KWF77-YPE80M4，KWF77-YPE90M4，KWF77-YS100M4，KWF77-YS112M4，KWF77-YS132M4，KWF77-YS160M4，KWF77-YS71M4，KWF77-YS80M4，KWF77-YS90M4，KWF77-YVB100M4，KWF77-YVB112M4，KWF77-YVB132M4，KWF77-YVB160M4，KWF77-YVB71M4，KWF77-YVB80M4，KWF77-YVB90M4，KWF77-YVP100M4，KWF77-YVP112M4，KWF77-YVP132M4，KWF77-YVP160M4，KWF77-YVP71M4，KWF77-YVP80M4，KWF77-YVP90M4，KWF77-YVPEJ100M4，KWF77-YVPEJ112M4，KWF77-YVPEJ132M4，KWF77-YVPEJ160M4，KWF77-YVPEJ71M4，KWF77-YVPEJ80M4，KWF77-YVPEJ90M4，XDKF77-Y0.25KWF，XDKF77-Y0.37KWF，XDKF77-Y0.55KWF，XDKF77-Y0.75KWF，XDKF77-Y1.1KWF，XDKF77-Y1.5KWF，XDKF77-Y100M4，XDKF77-Y112M4，XDKF77-Y11KWF，XDKF77-Y132M4，XDKF77-Y160M4，XDKF77-Y2.2KWF，XDKF77-Y3KWF，XDKF77-Y4KWF，XDKF77-Y5.5KWF，XDKF77-Y7.5KWF，XDKF77-Y71M4，XDKF77-Y80M4，XDKF77-Y90M4，XDKF77-YB100M4，XDKF77-YB112M4，XDKF77-YB132M4，XDKF77-YB160M4，XDKF77-YB71M4，XDKF77-YB80M4，XDKF77-YB90M4，XDKF77-YDP100M4，XDKF77-YDP112M4，XDKF77-YDP132M4，XDKF77-YDP160M4，XDKF77-YDP71M4，XDKF77-YDP80M4，XDKF77-YDP90M4，XDKF77-YE100M4，XDKF77-YE112M4，XDKF77-YE132M4，XDKF77-YE160M4，XDKF77-YE71M4，XDKF77-YE80M4，XDKF77-YE90M4，XDKF77-YEJ100M4，XDKF77-YEJ112M4，XDKF77-YEJ132M4，XDKF77-YEJ160M4，XDKF77-YEJ71M4，XDKF77-YEJ80M4，XDKF77-YEJ90M4，XDKF77-YEJB100M4，XDKF77-YEJB112M4，XDKF77-YEJB132M4，XDKF77-YEJB160M4，XDKF77-YEJB71M4，XDKF77-YEJB80M4，XDKF77-YEJB90M4，XDKF77-YP100M4，XDKF77-YP112M4，XDKF77-YP132M4，XDKF77-YP160M4，XDKF77-YP71M4，XDKF77-YP80M4，XDKF77-YP90M4，XDKF77-YPB100M4，XDKF77-YPB112M4，XDKF77-YPB132M4，XDKF77-YPB160M4，XDKF77-YPB71M4，XDKF77-YPB80M4，XDKF77-YPB90M4，XDKF77-YPE100M4，XDKF77-YPE112M4，XDKF77-YPE132M4，XDKF77-YPE160M4，XDKF77-YPE71M4，XDKF77-YPE80M4，XDKF77-YPE90M4，XDKF77-YS100M4，XDKF77-YS112M4，XDKF77-YS132M4，XDKF77-YS160M4，XDKF77-YS71M4，XDKF77-YS80M4，XDKF77-YS90M4，XDKF77-YVB100M4，XDKF77-YVB112M4，XDKF77-YVB132M4，XDKF77-YVB160M4，XDKF77-YVB71M4，XDKF77-YVB80M4，XDKF77-YVB90M4，XDKF77-YVP100M4，XDKF77-YVP112M4，XDKF77-YVP132M4，XDKF77-YVP160M4，XDKF77-YVP71M4，XDKF77-YVP80M4，XDKF77-YVP90M4，XDKF77-YVPEJ100M4，XDKF77-YVPEJ112M4，XDKF77-YVPEJ132M4，XDKF77-YVPEJ160M4，XDKF77-YVPEJ71M4，XDKF77-YVPEJ80M4，XDKF77-YVPEJ90M4，YQKF77-Y0.25KWF，YQKF77-Y0.37KWF，YQKF77-Y0.55KWF，YQKF77-Y0.75KWF，YQKF77-Y1.1KWF，YQKF77-Y1.5KWF，YQKF77-Y100M4，YQKF77-Y112M4，YQKF77-Y11KWF，YQKF77-Y132M4，YQKF77-Y160M4，YQKF77-Y2.2KWF，YQKF77-Y3KWF，YQKF77-Y4KWF，YQKF77-Y5.5KWF，YQKF77-Y7.5KWF，YQKF77-Y71M4，YQKF77-Y80M4，YQKF77-Y90M4，YQKF77-YB100M4，YQKF77-YB112M4，YQKF77-YB132M4，YQKF77-YB160M4，YQKF77-YB71M4，YQKF77-YB80M4，YQKF77-YB90M4，YQKF77-YDP100M4，YQKF77-YDP112M4，YQKF77-YDP132M4，YQKF77-YDP160M4，YQKF77-YDP71M4，YQKF77-YDP80M4，YQKF77-YDP90M4，YQKF77-YE100M4，YQKF77-YE112M4，YQKF77-YE132M4，YQKF77-YE160M4，YQKF77-YE71M4，YQKF77-YE80M4，YQKF77-YE90M4，YQKF77-YEJ100M4，YQKF77-YEJ112M4，YQKF77-YEJ132M4，YQKF77-YEJ160M4，YQKF77-YEJ71M4，YQKF77-YEJ80M4，YQKF77-YEJ90M4，YQKF77-YEJB100M4，YQKF77-YEJB112M4，YQKF77-YEJB132M4，YQKF77-YEJB160M4，YQKF77-YEJB71M4，YQKF77-YEJB80M4，YQKF77-YEJB90M4，YQKF77-YP100M4，YQKF77-YP112M4，YQKF77-YP132M4，YQKF77-YP160M4，YQKF77-YP71M4，YQKF77-YP80M4，YQKF77-YP90M4，YQKF77-YPB100M4，YQKF77-YPB112M4，YQKF77-YPB132M4，YQKF77-YPB160M4，YQKF77-YPB71M4，YQKF77-YPB80M4，YQKF77-YPB90M4，YQKF77-YPE100M4，YQKF77-YPE112M4，YQKF77-YPE132M4，YQKF77-YPE160M4，YQKF77-YPE71M4，YQKF77-YPE80M4，YQKF77-YPE90M4，YQKF77-YS100M4，YQKF77-YS112M4，YQKF77-YS132M4，YQKF77-YS160M4，YQKF77-YS71M4，YQKF77-YS80M4，YQKF77-YS90M4，YQKF77-YVB100M4，YQKF77-YVB112M4，YQKF77-YVB132M4，YQKF77-YVB160M4，YQKF77-YVB71M4，YQKF77-YVB80M4，YQKF77-YVB90M4，YQKF77-YVP100M4，YQKF77-YVP112M4，YQKF77-YVP132M4，YQKF77-YVP160M4，YQKF77-YVP71M4，YQKF77-YVP80M4，YQKF77-YVP90M4，YQKF77-YVPEJ100M4，YQKF77-YVPEJ112M4，YQKF77-YVPEJ132M4，YQKF77-YVPEJ160M4，YQKF77-YVPEJ71M4，YQKF77-YVPEJ80M4，YQKF77-YVPEJ90M4，JCKF77-Y0.25KWF，JCKF77-Y0.37KWF，JCKF77-Y0.55KWF，JCKF77-Y0.75KWF，JCKF77-Y1.1KWF，JCKF77-Y1.5KWF，JCKF77-Y100M4，JCKF77-Y112M4，JCKF77-Y11KWF，JCKF77-Y132M4，JCKF77-Y160M4，JCKF77-Y2.2KWF，JCKF77-Y3KWF，JCKF77-Y4KWF，JCKF77-Y5.5KWF，JCKF77-Y7.5KWF，JCKF77-Y71M4，JCKF77-Y80M4，JCKF77-Y90M4，JCKF77-YB100M4，JCKF77-YB112M4，JCKF77-YB132M4，JCKF77-YB160M4，JCKF77-YB71M4，JCKF77-YB80M4，JCKF77-YB90M4，JCKF77-YDP100M4，JCKF77-YDP112M4，JCKF77-YDP132M4，JCKF77-YDP160M4，JCKF77-YDP71M4，JCKF77-YDP80M4，JCKF77-YDP90M4，JCKF77-YE100M4，JCKF77-YE112M4，JCKF77-YE132M4，JCKF77-YE160M4，JCKF77-YE71M4，JCKF77-YE80M4，JCKF77-YE90M4，JCKF77-YEJ100M4，JCKF77-YEJ112M4，JCKF77-YEJ132M4，JCKF77-YEJ160M4，JCKF77-YEJ71M4，JCKF77-YEJ80M4，JCKF77-YEJ90M4，JCKF77-YEJB100M4，JCKF77-YEJB112M4，JCKF77-YEJB132M4，JCKF77-YEJB160M4，JCKF77-YEJB71M4，JCKF77-YEJB80M4，JCKF77-YEJB90M4，JCKF77-YP100M4，JCKF77-YP112M4，JCKF77-YP132M4，JCKF77-YP160M4，JCKF77-YP71M4，JCKF77-YP80M4，JCKF77-YP90M4，JCKF77-YPB100M4，JCKF77-YPB112M4，JCKF77-YPB132M4，JCKF77-YPB160M4，JCKF77-YPB71M4，JCKF77-YPB80M4，JCKF77-YPB90M4，JCKF77-YPE100M4，JCKF77-YPE112M4，JCKF77-YPE132M4，JCKF77-YPE160M4，JCKF77-YPE71M4，JCKF77-YPE80M4，JCKF77-YPE90M4，JCKF77-YS100M4，JCKF77-YS112M4，JCKF77-YS132M4，JCKF77-YS160M4，JCKF77-YS71M4，JCKF77-YS80M4，JCKF77-YS90M4，JCKF77-YVB100M4，JCKF77-YVB112M4，JCKF77-YVB132M4，JCKF77-YVB160M4，JCKF77-YVB71M4，JCKF77-YVB80M4，JCKF77-YVB90M4，JCKF77-YVP100M4，JCKF77-YVP112M4，JCKF77-YVP132M4，JCKF77-YVP160M4，JCKF77-YVP71M4，JCKF77-YVP80M4，JCKF77-YVP90M4，JCKF77-YVPEJ100M4，JCKF77-YVPEJ112M4，JCKF77-YVPEJ132M4，JCKF77-YVPEJ160M4，JCKF77-YVPEJ71M4，JCKF77-YVPEJ80M4，JCKF77-YVPEJ90M4，KF79-Y0.25KWF，KF79-Y0.37KWF，KF79-Y0.55KWF，KF79-Y0.75KWF，KF79-Y1.1KWF，KF79-Y1.5KWF，KF79-Y100M4，KF79-Y112M4，KF79-Y11KWF，KF79-Y132M4，KF79-Y160M4，KF79-Y2.2KWF，KF79-Y3KWF，KF79-Y4KWF，KF79-Y5.5KWF，KF79-Y7.5KWF，KF79-Y71M4，KF79-Y80M4，KF79-Y90M4，KF79-YB100M4，KF79-YB112M4，KF79-YB132M4，KF79-YB160M4，KF79-YB71M4，KF79-YB80M4，KF79-YB90M4，KF79-YDP100M4，KF79-YDP112M4，KF79-YDP132M4，KF79-YDP160M4，KF79-YDP71M4，KF79-YDP80M4，KF79-YDP90M4，KF79-YE100M4，KF79-YE112M4，KF79-YE132M4，KF79-YE160M4，KF79-YE71M4，KF79-YE80M4，KF79-YE90M4，KF79-YEJ100M4，KF79-YEJ112M4，KF79-YEJ132M4，KF79-YEJ160M4，KF79-YEJ71M4，KF79-YEJ80M4，KF79-YEJ90M4，KF79-YEJB100M4，KF79-YEJB112M4，KF79-YEJB132M4，KF79-YEJB160M4，KF79-YEJB71M4，KF79-YEJB80M4，KF79-YEJB90M4，KF79-YP100M4，KF79-YP112M4，KF79-YP132M4，KF79-YP160M4，KF79-YP71M4，KF79-YP80M4，KF79-YP90M4，KF79-YPB100M4，KF79-YPB112M4，KF79-YPB132M4，KF79-YPB160M4，KF79-YPB71M4，KF79-YPB80M4，KF79-YPB90M4，KF79-YPE100M4，KF79-YPE112M4，KF79-YPE132M4，KF79-YPE160M4，KF79-YPE71M4，KF79-YPE80M4，KF79-YPE90M4，KF79-YS100M4，KF79-YS112M4，KF79-YS132M4，KF79-YS160M4，KF79-YS71M4，KF79-YS80M4，KF79-YS90M4，KF79-YVB100M4，KF79-YVB112M4，KF79-YVB132M4，KF79-YVB160M4，KF79-YVB71M4，KF79-YVB80M4，KF79-YVB90M4，KF79-YVP100M4，KF79-YVP112M4，KF79-YVP132M4，KF79-YVP160M4，KF79-YVP71M4，KF79-YVP80M4，KF79-YVP90M4，KF79-YVPEJ100M4，KF79-YVPEJ112M4，KF79-YVPEJ132M4，KF79-YVPEJ160M4，KF79-YVPEJ71M4，KF79-YVPEJ80M4，KF79-YVPEJ90M4，KF77SF80，KF77SF90，KF77SF100，KF77SF112，KF77SF115，KF77SF140，KF77SF160，KF77SF190。
KF79減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.zhbhgs.cn/product/list-kfxiliejiansuji-cn.html
推薦類似型號：K79減速機
關鍵詞:帶伺服減速機_伺服電機減速機_伺服電機減速器_伺服減速器_大扭力減速機_大扭力減速器_交流減速機_GKF系列減速機_KF系列減速機_伺服電機減速機一體機_伺服減速機一體機_KF系列減速器
KF系列齒輪減速電機型號：KF39減速機,KF49減速機,KF59減速機,KF69減速機,KF79減速機,KF89減速機,KF99減速機,KF109減速機,KF129減速機,KF159減速機,KF167減速機,KF187減速機
KF系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
