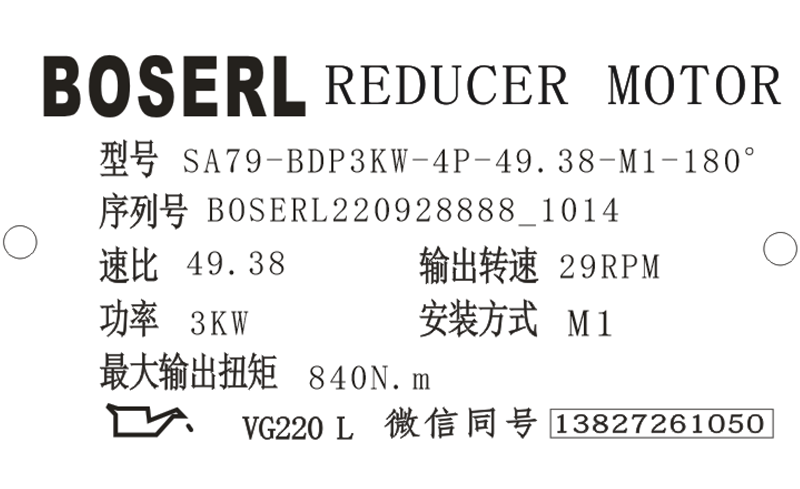

SA79減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA79減速器選型樣本。
SA79-BDP3KW-4P-49.38-M1-180°
SA：系列代號
79：減速機規格代號
BDP：電機
3KW：電機功率
4P：電機級數
49.38：減速機傳動比
M1：減速機安裝位置
180°：接線盒位置
SA79減速器逆止器安裝：
如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：
型號 | 逆止器最大逆止力矩 ［Nm］ | 最小超越轉速 ［r/min］ |
AD2/RS | 65 | 820 |
AD3/RS | 425 | 620 |
AD4/RS | 850 | 530 |
AD5/RS | 1450 | 480 |
AD6/RS | 1950 | 450 |
AD7/RS | 1950 | 450 |
AD8/RS | 1950 | 450 |
SA79減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。齒輪減速電機
逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。
轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。自鎖減速機
SA79減速器無油位檢查螺栓和安裝蓋：
通過密封螺栓檢查油位:由于SA79減速器無油位螺栓或安裝蓋，因此需要通過檢查孔進行檢查；按照M5或M6的安裝位置防止SA79減速器，即檢查孔朝上；擰出密封螺栓1（見下圖）；將測量標尺垂直通過檢查孔伸入減速器箱體的底部，然后再將測量標尺重新從檢查孔中垂直抽出（見下圖）。
用油標卡尺測出測量標尺上所沾的潤滑油長度（見下圖）。
將側的值“X”與下表中根據安裝位置所列的最小值進行比較，必要情況下調節油位高度；重新擰緊密封螺栓。伺服電機連接減速機
減速機型號 | 油位=測量標尺上所沾的長度X(mm)安裝位置 |
SA79減速器 | M1 | M2 | M3 | M4 | M5 | M6 |
10±1 | 24±1 | 34±1 | 37±1 | 24±1 | 24±1 |
SA79減速器型號：
XDSA77-Y0.25KW，XDSA77-Y0.37KW，XDSA77-Y0.55KW，XDSA77-Y0.75KW，XDSA77-Y1.1KW，XDSA77-Y1.5KW，XDSA77-Y100M4，XDSA77-Y112M4，XDSA77-Y132M4，XDSA77-Y2.2KW，XDSA77-Y3KW，XDSA77-Y4KW，XDSA77-Y5.5KW，XDSA77-Y7.5KW，XDSA77-Y71M4，XDSA77-Y80M4，XDSA77-Y90M4，XDSA77-YB100M4，XDSA77-YB112M4，XDSA77-YB132M4，XDSA77-YB71M4，XDSA77-YB80M4，XDSA77-YB90M4，XDSA77-YDP100M4，XDSA77-YDP112M4，XDSA77-YDP132M4，XDSA77-YDP71M4，XDSA77-YDP80M4，XDSA77-YDP90M4，XDSA77-YE100M4，XDSA77-YE112M4，XDSA77-YE132M4，XDSA77-YE71M4，XDSA77-YE80M4，XDSA77-YE90M4，XDSA77-YEJ100M4，XDSA77-YEJ112M4，XDSA77-YEJ132M4，XDSA77-YEJ71M4，XDSA77-YEJ80M4，XDSA77-YEJ90M4，XDSA77-YEJB100M4，XDSA77-YEJB112M4，XDSA77-YEJB132M4，XDSA77-YEJB71M4，XDSA77-YEJB80M4，XDSA77-YEJB90M4，XDSA77-YP100M4，XDSA77-YP112M4，XDSA77-YP132M4，XDSA77-YP71M4，XDSA77-YP80M4，XDSA77-YP90M4，XDSA77-YPB100M4，XDSA77-YPB112M4，XDSA77-YPB132M4，XDSA77-YPB71M4，XDSA77-YPB80M4，XDSA77-YPB90M4，XDSA77-YPE100M4，XDSA77-YPE112M4，XDSA77-YPE132M4，XDSA77-YPE71M4，XDSA77-YPE80M4，XDSA77-YPE90M4，XDSA77-YS100M4，XDSA77-YS112M4，XDSA77-YS132M4，XDSA77-YS71M4，XDSA77-YS80M4，XDSA77-YS90M4，XDSA77-YVB100M4，XDSA77-YVB112M4，XDSA77-YVB132M4，XDSA77-YVB71M4，XDSA77-YVB80M4，XDSA77-YVB90M4，XDSA77-YVP100M4，XDSA77-YVP112M4，XDSA77-YVP132M4，XDSA77-YVP71M4，XDSA77-YVP80M4，XDSA77-YVP90M4，XDSA77-YVPEJ100M4，XDSA77-YVPEJ112M4，XDSA77-YVPEJ132M4，XDSA77-YVPEJ71M4，XDSA77-YVPEJ80M4，XDSA77-YVPEJ90M4，YQSA77-Y0.25KW，YQSA77-Y0.37KW，YQSA77-Y0.55KW，YQSA77-Y0.75KW，YQSA77-Y1.1KW，YQSA77-Y1.5KW，YQSA77-Y100M4，YQSA77-Y112M4，YQSA77-Y132M4，YQSA77-Y2.2KW，YQSA77-Y3KW，YQSA77-Y4KW，YQSA77-Y5.5KW，YQSA77-Y7.5KW，YQSA77-Y71M4，YQSA77-Y80M4，YQSA77-Y90M4，YQSA77-YB100M4，YQSA77-YB112M4，YQSA77-YB132M4，YQSA77-YB71M4，YQSA77-YB80M4，YQSA77-YB90M4，YQSA77-YDP100M4，YQSA77-YDP112M4，YQSA77-YDP132M4，YQSA77-YDP71M4，YQSA77-YDP80M4，YQSA77-YDP90M4，YQSA77-YE100M4，YQSA77-YE112M4，YQSA77-YE132M4，YQSA77-YE71M4，YQSA77-YE80M4，YQSA77-YE90M4，YQSA77-YEJ100M4，YQSA77-YEJ112M4，YQSA77-YEJ132M4，YQSA77-YEJ71M4，YQSA77-YEJ80M4，YQSA77-YEJ90M4，YQSA77-YEJB100M4，YQSA77-YEJB112M4，YQSA77-YEJB132M4，YQSA77-YEJB71M4，YQSA77-YEJB80M4，YQSA77-YEJB90M4，YQSA77-YP100M4，YQSA77-YP112M4，YQSA77-YP132M4，YQSA77-YP71M4，YQSA77-YP80M4，YQSA77-YP90M4，YQSA77-YPB100M4，YQSA77-YPB112M4，YQSA77-YPB132M4，YQSA77-YPB71M4，YQSA77-YPB80M4，YQSA77-YPB90M4，YQSA77-YPE100M4，YQSA77-YPE112M4，YQSA77-YPE132M4，YQSA77-YPE71M4，YQSA77-YPE80M4，YQSA77-YPE90M4，YQSA77-YS100M4，YQSA77-YS112M4，YQSA77-YS132M4，YQSA77-YS71M4，YQSA77-YS80M4，YQSA77-YS90M4，YQSA77-YVB100M4，YQSA77-YVB112M4，YQSA77-YVB132M4，YQSA77-YVB71M4，YQSA77-YVB80M4，YQSA77-YVB90M4，YQSA77-YVP100M4，YQSA77-YVP112M4，YQSA77-YVP132M4，YQSA77-YVP71M4，YQSA77-YVP80M4，YQSA77-YVP90M4，YQSA77-YVPEJ100M4，YQSA77-YVPEJ112M4，YQSA77-YVPEJ132M4，YQSA77-YVPEJ71M4，YQSA77-YVPEJ80M4，YQSA77-YVPEJ90M4，JCSA77-Y0.25KW，JCSA77-Y0.37KW，JCSA77-Y0.55KW，JCSA77-Y0.75KW，JCSA77-Y1.1KW，JCSA77-Y1.5KW，JCSA77-Y100M4，JCSA77-Y112M4，JCSA77-Y132M4，JCSA77-Y2.2KW，JCSA77-Y3KW，JCSA77-Y4KW，JCSA77-Y5.5KW，JCSA77-Y7.5KW，JCSA77-Y71M4，JCSA77-Y80M4，JCSA77-Y90M4，JCSA77-YB100M4，JCSA77-YB112M4，JCSA77-YB132M4，JCSA77-YB71M4，JCSA77-YB80M4，JCSA77-YB90M4，JCSA77-YDP100M4，JCSA77-YDP112M4，JCSA77-YDP132M4，JCSA77-YDP71M4，JCSA77-YDP80M4，JCSA77-YDP90M4，JCSA77-YE100M4，JCSA77-YE112M4，JCSA77-YE132M4，JCSA77-YE71M4，JCSA77-YE80M4，JCSA77-YE90M4，JCSA77-YEJ100M4，JCSA77-YEJ112M4，JCSA77-YEJ132M4，JCSA77-YEJ71M4，JCSA77-YEJ80M4，JCSA77-YEJ90M4，JCSA77-YEJB100M4，JCSA77-YEJB112M4，JCSA77-YEJB132M4，JCSA77-YEJB71M4，JCSA77-YEJB80M4，JCSA77-YEJB90M4，JCSA77-YP100M4，JCSA77-YP112M4，JCSA77-YP132M4，JCSA77-YP71M4，JCSA77-YP80M4，JCSA77-YP90M4，JCSA77-YPB100M4，JCSA77-YPB112M4，JCSA77-YPB132M4，JCSA77-YPB71M4，JCSA77-YPB80M4，JCSA77-YPB90M4，JCSA77-YPE100M4，JCSA77-YPE112M4，JCSA77-YPE132M4，JCSA77-YPE71M4，JCSA77-YPE80M4，JCSA77-YPE90M4，JCSA77-YS100M4，JCSA77-YS112M4，JCSA77-YS132M4，JCSA77-YS71M4，JCSA77-YS80M4，JCSA77-YS90M4，JCSA77-YVB100M4，JCSA77-YVB112M4，JCSA77-YVB132M4，JCSA77-YVB71M4，JCSA77-YVB80M4，JCSA77-YVB90M4，JCSA77-YVP100M4，JCSA77-YVP112M4，JCSA77-YVP132M4，JCSA77-YVP71M4，JCSA77-YVP80M4，JCSA77-YVP90M4，JCSA77-YVPEJ100M4，JCSA77-YVPEJ112M4，JCSA77-YVPEJ132M4，JCSA77-YVPEJ71M4，JCSA77-YVPEJ80M4，JCSA77-YVPEJ90M4，SWA77-Y0.25KW，SWA77-Y0.37KW，SWA77-Y0.55KW，SWA77-Y0.75KW，SWA77-Y1.1KW，SWA77-Y1.5KW，SWA77-Y100M4，SWA77-Y112M4，SWA77-Y132M4，SWA77-Y2.2KW，SWA77-Y3KW，SWA77-Y4KW，SWA77-Y5.5KW，SWA77-Y7.5KW，SWA77-Y71M4，SWA77-Y80M4，SWA77-Y90M4，SWA77-YB100M4，SWA77-YB112M4，SWA77-YB132M4，SWA77-YB71M4，SWA77-YB80M4，SWA77-YB90M4，SWA77-YDP100M4，SWA77-YDP112M4，SWA77-YDP132M4，SWA77-YDP71M4，SWA77-YDP80M4，SWA77-YDP90M4，SWA77-YE100M4，SWA77-YE112M4，SWA77-YE132M4，SWA77-YE71M4，SWA77-YE80M4，SWA77-YE90M4，SWA77-YEJ100M4，SWA77-YEJ112M4，SWA77-YEJ132M4，SWA77-YEJ71M4，SWA77-YEJ80M4，SWA77-YEJ90M4，SWA77-YEJB100M4，SWA77-YEJB112M4，SWA77-YEJB132M4，SWA77-YEJB71M4，SWA77-YEJB80M4，SWA77-YEJB90M4，SWA77-YP100M4，SWA77-YP112M4，SWA77-YP132M4，SWA77-YP71M4，SWA77-YP80M4，SWA77-YP90M4，SWA77-YPB100M4，SWA77-YPB112M4，SWA77-YPB132M4，SWA77-YPB71M4，SWA77-YPB80M4，SWA77-YPB90M4，SWA77-YPE100M4，SWA77-YPE112M4，SWA77-YPE132M4，SWA77-YPE71M4，SWA77-YPE80M4，SWA77-YPE90M4，SWA77-YS100M4，SWA77-YS112M4，SWA77-YS132M4，SWA77-YS71M4，SWA77-YS80M4，SWA77-YS90M4，SWA77-YVB100M4，SWA77-YVB112M4，SWA77-YVB132M4，SWA77-YVB71M4，SWA77-YVB80M4，SWA77-YVB90M4，SWA77-YVP100M4，SWA77-YVP112M4，SWA77-YVP132M4，SWA77-YVP71M4，SWA77-YVP80M4，SWA77-YVP90M4，SWA77-YVPEJ100M4，SWA77-YVPEJ112M4，SWA77-YVPEJ132M4，SWA77-YVPEJ71M4，SWA77-YVPEJ80M4，SWA77-YVPEJ90M4，SA79-Y0.25KW，SA79-Y0.37KW，SA79-Y0.55KW，SA79-Y0.75KW，SA79-Y1.1KW，SA79-Y1.5KW，SA79-Y100M4，SA79-Y112M4，SA79-Y132M4，SA79-Y2.2KW，SA79-Y3KW，SA79-Y4KW，SA79-Y5.5KW，SA79-Y7.5KW，SA79-Y71M4，SA79-Y80M4，SA79-Y90M4，SA79-YB100M4，SA79-YB112M4，SA79-YB132M4，SA79-YB71M4，SA79-YB80M4，SA79-YB90M4，SA79-YDP100M4，SA79-YDP112M4，SA79-YDP132M4，SA79-YDP71M4，SA79-YDP80M4，SA79-YDP90M4，SA79-YE100M4，SA79-YE112M4，SA79-YE132M4，SA79-YE71M4，SA79-YE80M4，SA79-YE90M4，SA79-YEJ100M4，SA79-YEJ112M4，SA79-YEJ132M4，SA79-YEJ71M4，SA79-YEJ80M4，SA79-YEJ90M4，SA79-YEJB100M4，SA79-YEJB112M4，SA79-YEJB132M4，SA79-YEJB71M4，SA79-YEJB80M4，SA79-YEJB90M4，SA79-YP100M4，SA79-YP112M4，SA79-YP132M4，SA79-YP71M4，SA79-YP80M4，SA79-YP90M4，SA79-YPB100M4，SA79-YPB112M4，SA79-YPB132M4，SA79-YPB71M4，SA79-YPB80M4，SA79-YPB90M4，SA79-YPE100M4，SA79-YPE112M4，SA79-YPE132M4，SA79-YPE71M4，SA79-YPE80M4，SA79-YPE90M4，SA79-YS100M4，SA79-YS112M4，SA79-YS132M4，SA79-YS71M4，SA79-YS80M4，SA79-YS90M4，SA79-YVB100M4，SA79-YVB112M4，SA79-YVB132M4，SA79-YVB71M4，SA79-YVB80M4，SA79-YVB90M4，SA79-YVP100M4，SA79-YVP112M4，SA79-YVP132M4，SA79-YVP71M4，SA79-YVP80M4，SA79-YVP90M4，SA79-YVPEJ100M4，SA79-YVPEJ112M4，SA79-YVPEJ132M4，SA79-YVPEJ71M4，SA79-YVPEJ80M4，SA79-YVPEJ90M4，SA77SF80，SA77SF90，SA77SF100，SA77SF112，SA77SF115，SA77SF140，SA77SF160，SA77SF190。
SA79減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.zhbhgs.cn/product/list-saxiliejiansuji-cn.html
推薦類似型號：S79減速機
關鍵詞:私服電機帶減速機一體機_伺服電機連接減速機_SA系列減速機_私服電機減速機_GSA系列減速機_SA系列減速器_伺服電機連接減速器_私服減速機_私服電機減速器
SA系列減速機型號：SA39減速機,SA49減速機,SA59減速機,SA69減速機,SA79減速機,SA89減速機,SA99齒輪減速電機
SA系列自鎖減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
