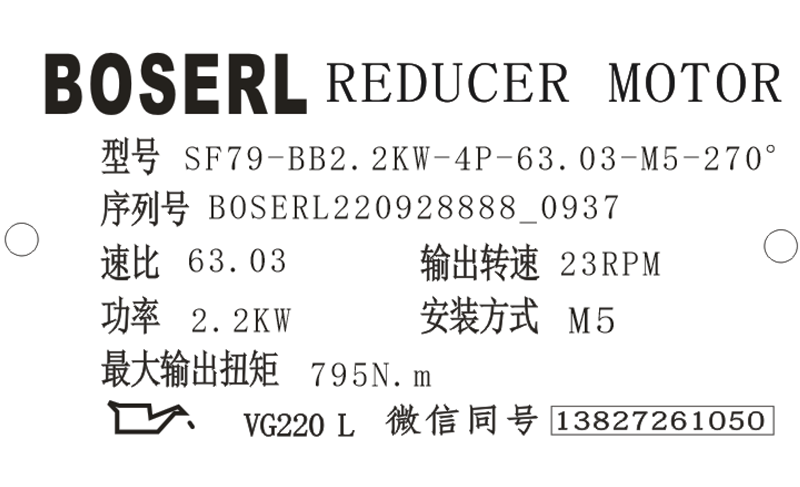

SF79減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SF79減速機選型樣本。
SF79-BB2.2KW-4P-63.03-M5-270°
SF：系列代號
79：減速機規格代號
BB：電機
2.2KW：電機功率
4P：電機級數
63.03：減速機傳動比
M5：減速機安裝位置
270°：接線盒位置
SF79減速機潤滑油型號：
SF79減速機推薦使用的潤滑油，其等級和粘度指標見下表：
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG220 | -10-+40 | R系列、F系列、K系列減速機 |
ISOVG680 | 0-+40 | S系列減速機 |
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG100 | -20-+25 | R系列、F系列、K系列減速機 |
Synthetic fluid,clp pg | ISOVG220 | -25-+80 | R系列、F系列、K系列減速機 |
Synthetic fluid,CLP HC | ISOVG460 | -30-+80 | S系列減速機 |
SF79減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據SF79減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“SF79減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。齒輪減速電機
SF79減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的SF79減速機選型樣本中列出了安裝位置從M1到M6SF79減速機相應的潤滑油加注標準，請自行下載查看。
SF79減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。
SF79減速機使用說明：
SF79減速機注意事項：若未注入正確的SF79減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。伺服電機蝸輪蝸桿減速機
SF79減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見SF79減速機說明書安裝位置章節中的內容。
SF79減速機的螺母：立式安裝SF79減速機輸出法蘭螺母規格M12；SF79減速機螺母/螺母擰緊扭矩強度等級10.9。
SF79減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！
SF79減速機警告說明：由于SF79減速機發熱或SF79減速機油溫過高可能引起燙傷；對SF79減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。自鎖減速機
SF79減速機型號：
XDSF77-Y0.25KW，XDSF77-Y0.37KW，XDSF77-Y0.55KW，XDSF77-Y0.75KW，XDSF77-Y1.1KW，XDSF77-Y1.5KW，XDSF77-Y100M4，XDSF77-Y112M4，XDSF77-Y132M4，XDSF77-Y2.2KW，XDSF77-Y3KW，XDSF77-Y4KW，XDSF77-Y5.5KW，XDSF77-Y7.5KW，XDSF77-Y71M4，XDSF77-Y80M4，XDSF77-Y90M4，XDSF77-YB100M4，XDSF77-YB112M4，XDSF77-YB132M4，XDSF77-YB71M4，XDSF77-YB80M4，XDSF77-YB90M4，XDSF77-YDP100M4，XDSF77-YDP112M4，XDSF77-YDP132M4，XDSF77-YDP71M4，XDSF77-YDP80M4，XDSF77-YDP90M4，XDSF77-YE100M4，XDSF77-YE112M4，XDSF77-YE132M4，XDSF77-YE71M4，XDSF77-YE80M4，XDSF77-YE90M4，XDSF77-YEJ100M4，XDSF77-YEJ112M4，XDSF77-YEJ132M4，XDSF77-YEJ71M4，XDSF77-YEJ80M4，XDSF77-YEJ90M4，XDSF77-YEJB100M4，XDSF77-YEJB112M4，XDSF77-YEJB132M4，XDSF77-YEJB71M4，XDSF77-YEJB80M4，XDSF77-YEJB90M4，XDSF77-YP100M4，XDSF77-YP112M4，XDSF77-YP132M4，XDSF77-YP71M4，XDSF77-YP80M4，XDSF77-YP90M4，XDSF77-YPB100M4，XDSF77-YPB112M4，XDSF77-YPB132M4，XDSF77-YPB71M4，XDSF77-YPB80M4，XDSF77-YPB90M4，XDSF77-YPE100M4，XDSF77-YPE112M4，XDSF77-YPE132M4，XDSF77-YPE71M4，XDSF77-YPE80M4，XDSF77-YPE90M4，XDSF77-YS100M4，XDSF77-YS112M4，XDSF77-YS132M4，XDSF77-YS71M4，XDSF77-YS80M4，XDSF77-YS90M4，XDSF77-YVB100M4，XDSF77-YVB112M4，XDSF77-YVB132M4，XDSF77-YVB71M4，XDSF77-YVB80M4，XDSF77-YVB90M4，XDSF77-YVP100M4，XDSF77-YVP112M4，XDSF77-YVP132M4，XDSF77-YVP71M4，XDSF77-YVP80M4，XDSF77-YVP90M4，XDSF77-YVPEJ100M4，XDSF77-YVPEJ112M4，XDSF77-YVPEJ132M4，XDSF77-YVPEJ71M4，XDSF77-YVPEJ80M4，XDSF77-YVPEJ90M4，YQSF77-Y0.25KW，YQSF77-Y0.37KW，YQSF77-Y0.55KW，YQSF77-Y0.75KW，YQSF77-Y1.1KW，YQSF77-Y1.5KW，YQSF77-Y100M4，YQSF77-Y112M4，YQSF77-Y132M4，YQSF77-Y2.2KW，YQSF77-Y3KW，YQSF77-Y4KW，YQSF77-Y5.5KW，YQSF77-Y7.5KW，YQSF77-Y71M4，YQSF77-Y80M4，YQSF77-Y90M4，YQSF77-YB100M4，YQSF77-YB112M4，YQSF77-YB132M4，YQSF77-YB71M4，YQSF77-YB80M4，YQSF77-YB90M4，YQSF77-YDP100M4，YQSF77-YDP112M4，YQSF77-YDP132M4，YQSF77-YDP71M4，YQSF77-YDP80M4，YQSF77-YDP90M4，YQSF77-YE100M4，YQSF77-YE112M4，YQSF77-YE132M4，YQSF77-YE71M4，YQSF77-YE80M4，YQSF77-YE90M4，YQSF77-YEJ100M4，YQSF77-YEJ112M4，YQSF77-YEJ132M4，YQSF77-YEJ71M4，YQSF77-YEJ80M4，YQSF77-YEJ90M4，YQSF77-YEJB100M4，YQSF77-YEJB112M4，YQSF77-YEJB132M4，YQSF77-YEJB71M4，YQSF77-YEJB80M4，YQSF77-YEJB90M4，YQSF77-YP100M4，YQSF77-YP112M4，YQSF77-YP132M4，YQSF77-YP71M4，YQSF77-YP80M4，YQSF77-YP90M4，YQSF77-YPB100M4，YQSF77-YPB112M4，YQSF77-YPB132M4，YQSF77-YPB71M4，YQSF77-YPB80M4，YQSF77-YPB90M4，YQSF77-YPE100M4，YQSF77-YPE112M4，YQSF77-YPE132M4，YQSF77-YPE71M4，YQSF77-YPE80M4，YQSF77-YPE90M4，YQSF77-YS100M4，YQSF77-YS112M4，YQSF77-YS132M4，YQSF77-YS71M4，YQSF77-YS80M4，YQSF77-YS90M4，YQSF77-YVB100M4，YQSF77-YVB112M4，YQSF77-YVB132M4，YQSF77-YVB71M4，YQSF77-YVB80M4，YQSF77-YVB90M4，YQSF77-YVP100M4，YQSF77-YVP112M4，YQSF77-YVP132M4，YQSF77-YVP71M4，YQSF77-YVP80M4，YQSF77-YVP90M4，YQSF77-YVPEJ100M4，YQSF77-YVPEJ112M4，YQSF77-YVPEJ132M4，YQSF77-YVPEJ71M4，YQSF77-YVPEJ80M4，YQSF77-YVPEJ90M4，JCSF77-Y0.25KW，JCSF77-Y0.37KW，JCSF77-Y0.55KW，JCSF77-Y0.75KW，JCSF77-Y1.1KW，JCSF77-Y1.5KW，JCSF77-Y100M4，JCSF77-Y112M4，JCSF77-Y132M4，JCSF77-Y2.2KW，JCSF77-Y3KW，JCSF77-Y4KW，JCSF77-Y5.5KW，JCSF77-Y7.5KW，JCSF77-Y71M4，JCSF77-Y80M4，JCSF77-Y90M4，JCSF77-YB100M4，JCSF77-YB112M4，JCSF77-YB132M4，JCSF77-YB71M4，JCSF77-YB80M4，JCSF77-YB90M4，JCSF77-YDP100M4，JCSF77-YDP112M4，JCSF77-YDP132M4，JCSF77-YDP71M4，JCSF77-YDP80M4，JCSF77-YDP90M4，JCSF77-YE100M4，JCSF77-YE112M4，JCSF77-YE132M4，JCSF77-YE71M4，JCSF77-YE80M4，JCSF77-YE90M4，JCSF77-YEJ100M4，JCSF77-YEJ112M4，JCSF77-YEJ132M4，JCSF77-YEJ71M4，JCSF77-YEJ80M4，JCSF77-YEJ90M4，JCSF77-YEJB100M4，JCSF77-YEJB112M4，JCSF77-YEJB132M4，JCSF77-YEJB71M4，JCSF77-YEJB80M4，JCSF77-YEJB90M4，JCSF77-YP100M4，JCSF77-YP112M4，JCSF77-YP132M4，JCSF77-YP71M4，JCSF77-YP80M4，JCSF77-YP90M4，JCSF77-YPB100M4，JCSF77-YPB112M4，JCSF77-YPB132M4，JCSF77-YPB71M4，JCSF77-YPB80M4，JCSF77-YPB90M4，JCSF77-YPE100M4，JCSF77-YPE112M4，JCSF77-YPE132M4，JCSF77-YPE71M4，JCSF77-YPE80M4，JCSF77-YPE90M4，JCSF77-YS100M4，JCSF77-YS112M4，JCSF77-YS132M4，JCSF77-YS71M4，JCSF77-YS80M4，JCSF77-YS90M4，JCSF77-YVB100M4，JCSF77-YVB112M4，JCSF77-YVB132M4，JCSF77-YVB71M4，JCSF77-YVB80M4，JCSF77-YVB90M4，JCSF77-YVP100M4，JCSF77-YVP112M4，JCSF77-YVP132M4，JCSF77-YVP71M4，JCSF77-YVP80M4，JCSF77-YVP90M4，JCSF77-YVPEJ100M4，JCSF77-YVPEJ112M4，JCSF77-YVPEJ132M4，JCSF77-YVPEJ71M4，JCSF77-YVPEJ80M4，JCSF77-YVPEJ90M4，SWF77-Y0.25KW，SWF77-Y0.37KW，SWF77-Y0.55KW，SWF77-Y0.75KW，SWF77-Y1.1KW，SWF77-Y1.5KW，SWF77-Y100M4，SWF77-Y112M4，SWF77-Y132M4，SWF77-Y2.2KW，SWF77-Y3KW，SWF77-Y4KW，SWF77-Y5.5KW，SWF77-Y7.5KW，SWF77-Y71M4，SWF77-Y80M4，SWF77-Y90M4，SWF77-YB100M4，SWF77-YB112M4，SWF77-YB132M4，SWF77-YB71M4，SWF77-YB80M4，SWF77-YB90M4，SWF77-YDP100M4，SWF77-YDP112M4，SWF77-YDP132M4，SWF77-YDP71M4，SWF77-YDP80M4，SWF77-YDP90M4，SWF77-YE100M4，SWF77-YE112M4，SWF77-YE132M4，SWF77-YE71M4，SWF77-YE80M4，SWF77-YE90M4，SWF77-YEJ100M4，SWF77-YEJ112M4，SWF77-YEJ132M4，SWF77-YEJ71M4，SWF77-YEJ80M4，SWF77-YEJ90M4，SWF77-YEJB100M4，SWF77-YEJB112M4，SWF77-YEJB132M4，SWF77-YEJB71M4，SWF77-YEJB80M4，SWF77-YEJB90M4，SWF77-YP100M4，SWF77-YP112M4，SWF77-YP132M4，SWF77-YP71M4，SWF77-YP80M4，SWF77-YP90M4，SWF77-YPB100M4，SWF77-YPB112M4，SWF77-YPB132M4，SWF77-YPB71M4，SWF77-YPB80M4，SWF77-YPB90M4，SWF77-YPE100M4，SWF77-YPE112M4，SWF77-YPE132M4，SWF77-YPE71M4，SWF77-YPE80M4，SWF77-YPE90M4，SWF77-YS100M4，SWF77-YS112M4，SWF77-YS132M4，SWF77-YS71M4，SWF77-YS80M4，SWF77-YS90M4，SWF77-YVB100M4，SWF77-YVB112M4，SWF77-YVB132M4，SWF77-YVB71M4，SWF77-YVB80M4，SWF77-YVB90M4，SWF77-YVP100M4，SWF77-YVP112M4，SWF77-YVP132M4，SWF77-YVP71M4，SWF77-YVP80M4，SWF77-YVP90M4，SWF77-YVPEJ100M4，SWF77-YVPEJ112M4，SWF77-YVPEJ132M4，SWF77-YVPEJ71M4，SWF77-YVPEJ80M4，SWF77-YVPEJ90M4，SF79-Y0.25KW，SF79-Y0.37KW，SF79-Y0.55KW，SF79-Y0.75KW，SF79-Y1.1KW，SF79-Y1.5KW，SF79-Y100M4，SF79-Y112M4，SF79-Y132M4，SF79-Y2.2KW，SF79-Y3KW，SF79-Y4KW，SF79-Y5.5KW，SF79-Y7.5KW，SF79-Y71M4，SF79-Y80M4，SF79-Y90M4，SF79-YB100M4，SF79-YB112M4，SF79-YB132M4，SF79-YB71M4，SF79-YB80M4，SF79-YB90M4，SF79-YDP100M4，SF79-YDP112M4，SF79-YDP132M4，SF79-YDP71M4，SF79-YDP80M4，SF79-YDP90M4，SF79-YE100M4，SF79-YE112M4，SF79-YE132M4，SF79-YE71M4，SF79-YE80M4，SF79-YE90M4，SF79-YEJ100M4，SF79-YEJ112M4，SF79-YEJ132M4，SF79-YEJ71M4，SF79-YEJ80M4，SF79-YEJ90M4，SF79-YEJB100M4，SF79-YEJB112M4，SF79-YEJB132M4，SF79-YEJB71M4，SF79-YEJB80M4，SF79-YEJB90M4，SF79-YP100M4，SF79-YP112M4，SF79-YP132M4，SF79-YP71M4，SF79-YP80M4，SF79-YP90M4，SF79-YPB100M4，SF79-YPB112M4，SF79-YPB132M4，SF79-YPB71M4，SF79-YPB80M4，SF79-YPB90M4，SF79-YPE100M4，SF79-YPE112M4，SF79-YPE132M4，SF79-YPE71M4，SF79-YPE80M4，SF79-YPE90M4，SF79-YS100M4，SF79-YS112M4，SF79-YS132M4，SF79-YS71M4，SF79-YS80M4，SF79-YS90M4，SF79-YVB100M4，SF79-YVB112M4，SF79-YVB132M4，SF79-YVB71M4，SF79-YVB80M4，SF79-YVB90M4，SF79-YVP100M4，SF79-YVP112M4，SF79-YVP132M4，SF79-YVP71M4，SF79-YVP80M4，SF79-YVP90M4，SF79-YVPEJ100M4，SF79-YVPEJ112M4，SF79-YVPEJ132M4，SF79-YVPEJ71M4，SF79-YVPEJ80M4，SF79-YVPEJ90M4。
SF79減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.zhbhgs.cn/product/list-sfxiliejiansuji-cn.html
推薦類似型號：S79減速機
關鍵詞:帶伺服電機蝸輪蝸桿減速機一體機_蝸輪蝸桿減速機制造廠家_SF系列減速機_伺服蝸輪蝸桿減速機_SF系列減速器_GSF系列減速機_伺服電機蝸輪蝸桿減速器_伺服蝸輪蝸桿減速器
SF系列減速機型號：SF39減速機,SF49減速機,SF59減速機,SF69減速機,SF79減速機,SF89減速機,SF99齒輪減速電機
SF系列自鎖減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
