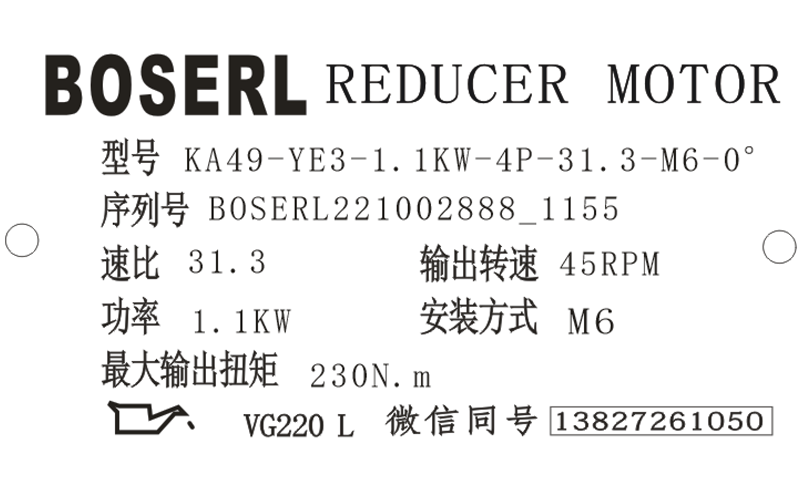

KA49減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA49減速機選型樣本。
KA49-YE3-1.1KW-4P-31.3-M6-0°
KA：系列代號
49：減速機規格代號
YE3：電機
1.1KW：電機功率
4P：電機級數
31.3：減速機傳動比
M6：減速機安裝位置
0°：接線盒位置
KA49減速機空心軸扭矩臂安裝：
裝配時不得對扭矩支架用力過猛，固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA49減速機的扭矩臂安裝示意圖：兩面均安裝支架，連接面B與連接A對稱安裝。齒輪減速電機
減速機型號 | 螺栓 | 擰緊扭矩 |
KA39減速機 | 4Xm10x25-8.8 | 48Nm |
KA49減速機 | 4Xm10x30-8.8 | 48Nm |
KA69減速機 | 4Xm12x35-8.8 | 86Nm |
KA79減速機 | 4Xm16x40-8.8 | 210Nm |
KA89減速機 | 4Xm16x45-8.8 | 210Nm |
KA99減速機 | 4Xm20x50-8.8 | 410Nm |
KA109減速機 | 4Xm24x60-8.8 | 710Nm |
KA129減速機 | 4Xm36x60-8.8 | 2500Nm |
KA159減速機 | 4Xm36x60-8.8 | 2500Nm |
KA169減速機 | 4Xm30x60-8.8 | 1450Nm |
KA189減速機 | 4Xm36x60-8.8 | 2500Nm |
KA49減速機電機安裝和電機安裝位置的調整：
均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA49減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。直角減速機
將電機與電機安裝平臺對準(軸端不許對齊)并固定。
將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。
裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。
擰緊非調整螺母以固定螺桿。空心軸減速機
KA49減速機型號：
WKA47-Y0.12SKA，WKA47-Y0.18SKA，WKA47-Y0.25SKA，WKA47-Y0.37SKA，WKA47-Y0.55SKA，WKA47-Y0.75SKA，WKA47-Y1.1SKA，WKA47-Y1.5SKA，WKA47-Y100M4，WKA47-Y2.2SKA，WKA47-Y3SKA，WKA47-Y63M4，WKA47-Y71M4，WKA47-Y80M4，WKA47-Y90M4，WKA47-YB100M4，WKA47-YB63M4，WKA47-YB71M4，WKA47-YB80M4，WKA47-YB90M4，WKA47-YDP100M4，WKA47-YDP63M4，WKA47-YDP71M4，WKA47-YDP80M4，WKA47-YDP90M4，WKA47-YE100M4，WKA47-YE63M4，WKA47-YE71M4，WKA47-YE80M4，WKA47-YE90M4，WKA47-YEJ100M4，WKA47-YEJ63M4，WKA47-YEJ71M4，WKA47-YEJ80M4，WKA47-YEJ90M4，WKA47-YEJB100M4，WKA47-YEJB63M4，WKA47-YEJB71M4，WKA47-YEJB80M4，WKA47-YEJB90M4，WKA47-YP100M4，WKA47-YP63M4，WKA47-YP71M4，WKA47-YP80M4，WKA47-YP90M4，WKA47-YPB100M4，WKA47-YPB63M4，WKA47-YPB71M4，WKA47-YPB80M4，WKA47-YPB90M4，WKA47-YPE100M4，WKA47-YPE63M4，WKA47-YPE71M4，WKA47-YPE80M4，WKA47-YPE90M4，WKA47-YS100M4，WKA47-YS63M4，WKA47-YS71M4，WKA47-YS80M4，WKA47-YS90M4，WKA47-YVB100M4，WKA47-YVB63M4，WKA47-YVB71M4，WKA47-YVB80M4，WKA47-YVB90M4，WKA47-YVP100M4，WKA47-YVP63M4，WKA47-YVP71M4，WKA47-YVP80M4，WKA47-YVP90M4，WKA47-YVPEJ100M4，WKA47-YVPEJ63M4，WKA47-YVPEJ71M4，WKA47-YVPEJ80M4，WKA47-YVPEJ90M4，AKA47-Y0.12SKA，AKA47-Y0.18SKA，AKA47-Y0.25SKA，AKA47-Y0.37SKA，AKA47-Y0.55SKA，AKA47-Y0.75SKA，AKA47-Y1.1SKA，AKA47-Y1.5SKA，AKA47-Y100M4，AKA47-Y2.2SKA，AKA47-Y3SKA，AKA47-Y63M4，AKA47-Y71M4，AKA47-Y80M4，AKA47-Y90M4，AKA47-YB100M4，AKA47-YB63M4，AKA47-YB71M4，AKA47-YB80M4，AKA47-YB90M4，AKA47-YDP100M4，AKA47-YDP63M4，AKA47-YDP71M4，AKA47-YDP80M4，AKA47-YDP90M4，AKA47-YE100M4，AKA47-YE63M4，AKA47-YE71M4，AKA47-YE80M4，AKA47-YE90M4，AKA47-YEJ100M4，AKA47-YEJ63M4，AKA47-YEJ71M4，AKA47-YEJ80M4，AKA47-YEJ90M4，AKA47-YEJB100M4，AKA47-YEJB63M4，AKA47-YEJB71M4，AKA47-YEJB80M4，AKA47-YEJB90M4，AKA47-YP100M4，AKA47-YP63M4，AKA47-YP71M4，AKA47-YP80M4，AKA47-YP90M4，AKA47-YPB100M4，AKA47-YPB63M4，AKA47-YPB71M4，AKA47-YPB80M4，AKA47-YPB90M4，AKA47-YPE100M4，AKA47-YPE63M4，AKA47-YPE71M4，AKA47-YPE80M4，AKA47-YPE90M4，AKA47-YS100M4，AKA47-YS63M4，AKA47-YS71M4，AKA47-YS80M4，AKA47-YS90M4，AKA47-YVB100M4，AKA47-YVB63M4，AKA47-YVB71M4，AKA47-YVB80M4，AKA47-YVB90M4，AKA47-YVP100M4，AKA47-YVP63M4，AKA47-YVP71M4，AKA47-YVP80M4，AKA47-YVP90M4，AKA47-YVPEJ100M4，AKA47-YVPEJ63M4，AKA47-YVPEJ71M4，AKA47-YVPEJ80M4，AKA47-YVPEJ90M4，NKA47-Y0.12SKA，NKA47-Y0.18SKA，NKA47-Y0.25SKA，NKA47-Y0.37SKA，NKA47-Y0.55SKA，NKA47-Y0.75SKA，NKA47-Y1.1SKA，NKA47-Y1.5SKA，NKA47-Y100M4，NKA47-Y2.2SKA，NKA47-Y3SKA，NKA47-Y63M4，NKA47-Y71M4，NKA47-Y80M4，NKA47-Y90M4，NKA47-YB100M4，NKA47-YB63M4，NKA47-YB71M4，NKA47-YB80M4，NKA47-YB90M4，NKA47-YDP100M4，NKA47-YDP63M4，NKA47-YDP71M4，NKA47-YDP80M4，NKA47-YDP90M4，NKA47-YE100M4，NKA47-YE63M4，NKA47-YE71M4，NKA47-YE80M4，NKA47-YE90M4，NKA47-YEJ100M4，NKA47-YEJ63M4，NKA47-YEJ71M4，NKA47-YEJ80M4，NKA47-YEJ90M4，NKA47-YEJB100M4，NKA47-YEJB63M4，NKA47-YEJB71M4，NKA47-YEJB80M4，NKA47-YEJB90M4，NKA47-YP100M4，NKA47-YP63M4，NKA47-YP71M4，NKA47-YP80M4，NKA47-YP90M4，NKA47-YPB100M4，NKA47-YPB63M4，NKA47-YPB71M4，NKA47-YPB80M4，NKA47-YPB90M4，NKA47-YPE100M4，NKA47-YPE63M4，NKA47-YPE71M4，NKA47-YPE80M4，NKA47-YPE90M4，NKA47-YS100M4，NKA47-YS63M4，NKA47-YS71M4，NKA47-YS80M4，NKA47-YS90M4，NKA47-YVB100M4，NKA47-YVB63M4，NKA47-YVB71M4，NKA47-YVB80M4，NKA47-YVB90M4，NKA47-YVP100M4，NKA47-YVP63M4，NKA47-YVP71M4，NKA47-YVP80M4，NKA47-YVP90M4，NKA47-YVPEJ100M4，NKA47-YVPEJ63M4，NKA47-YVPEJ71M4，NKA47-YVPEJ80M4，NKA47-YVPEJ90M4，SKA47-Y0.12SKA，SKA47-Y0.18SKA，SKA47-Y0.25SKA，SKA47-Y0.37SKA，SKA47-Y0.55SKA，SKA47-Y0.75SKA，SKA47-Y1.1SKA，SKA47-Y1.5SKA，SKA47-Y100M4，SKA47-Y2.2SKA，SKA47-Y3SKA，SKA47-Y63M4，SKA47-Y71M4，SKA47-Y80M4，SKA47-Y90M4，SKA47-YB100M4，SKA47-YB63M4，SKA47-YB71M4，SKA47-YB80M4，SKA47-YB90M4，SKA47-YDP100M4，SKA47-YDP63M4，SKA47-YDP71M4，SKA47-YDP80M4，SKA47-YDP90M4，SKA47-YE100M4，SKA47-YE63M4，SKA47-YE71M4，SKA47-YE80M4，SKA47-YE90M4，SKA47-YEJ100M4，SKA47-YEJ63M4，SKA47-YEJ71M4，SKA47-YEJ80M4，SKA47-YEJ90M4，SKA47-YEJB100M4，SKA47-YEJB63M4，SKA47-YEJB71M4，SKA47-YEJB80M4，SKA47-YEJB90M4，SKA47-YP100M4，SKA47-YP63M4，SKA47-YP71M4，SKA47-YP80M4，SKA47-YP90M4，SKA47-YPB100M4，SKA47-YPB63M4，SKA47-YPB71M4，SKA47-YPB80M4，SKA47-YPB90M4，SKA47-YPE100M4，SKA47-YPE63M4，SKA47-YPE71M4，SKA47-YPE80M4，SKA47-YPE90M4，SKA47-YS100M4，SKA47-YS63M4，SKA47-YS71M4，SKA47-YS80M4，SKA47-YS90M4，SKA47-YVB100M4，SKA47-YVB63M4，SKA47-YVB71M4，SKA47-YVB80M4，SKA47-YVB90M4，SKA47-YVP100M4，SKA47-YVP63M4，SKA47-YVP71M4，SKA47-YVP80M4，SKA47-YVP90M4，SKA47-YVPEJ100M4，SKA47-YVPEJ63M4，SKA47-YVPEJ71M4，SKA47-YVPEJ80M4，SKA47-YVPEJ90M4，GKA49-Y0.12SKA，GKA49-Y0.18SKA，GKA49-Y0.25SKA，GKA49-Y0.37SKA，GKA49-Y0.55SKA，GKA49-Y0.75SKA，GKA49-Y1.1SKA，GKA49-Y1.5SKA，GKA49-Y100M4，GKA49-Y2.2SKA，GKA49-Y3SKA，GKA49-Y63M4，GKA49-Y71M4，GKA49-Y80M4，GKA49-Y90M4，GKA49-YB100M4，GKA49-YB63M4，GKA49-YB71M4，GKA49-YB80M4，GKA49-YB90M4，GKA49-YDP100M4，GKA49-YDP63M4，GKA49-YDP71M4，GKA49-YDP80M4，GKA49-YDP90M4，GKA49-YE100M4，GKA49-YE63M4，GKA49-YE71M4，GKA49-YE80M4，GKA49-YE90M4，GKA49-YEJ100M4，GKA49-YEJ63M4，GKA49-YEJ71M4，GKA49-YEJ80M4，GKA49-YEJ90M4，GKA49-YEJB100M4，GKA49-YEJB63M4，GKA49-YEJB71M4，GKA49-YEJB80M4，GKA49-YEJB90M4，GKA49-YP100M4，GKA49-YP63M4，GKA49-YP71M4，GKA49-YP80M4，GKA49-YP90M4，GKA49-YPB100M4，GKA49-YPB63M4，GKA49-YPB71M4，GKA49-YPB80M4，GKA49-YPB90M4，GKA49-YPE100M4，GKA49-YPE63M4，GKA49-YPE71M4，GKA49-YPE80M4，GKA49-YPE90M4，GKA49-YS100M4，GKA49-YS63M4，GKA49-YS71M4，GKA49-YS80M4，GKA49-YS90M4，GKA49-YVB100M4，GKA49-YVB63M4，GKA49-YVB71M4，GKA49-YVB80M4，GKA49-YVB90M4，GKA49-YVP100M4，GKA49-YVP63M4，GKA49-YVP71M4，GKA49-YVP80M4，GKA49-YVP90M4，GKA49-YVPEJ100M4，GKA49-YVPEJ63M4，GKA49-YVPEJ71M4，GKA49-YVPEJ80M4，GKA49-YVPEJ90M4。
