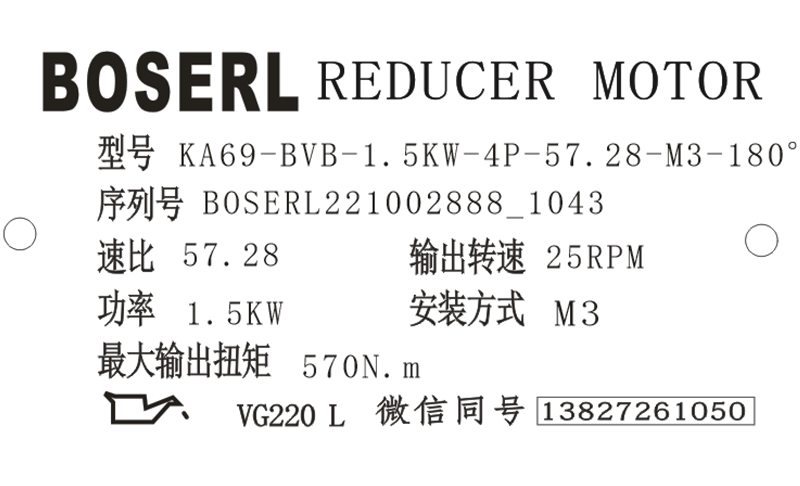

KA69減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA69減速器選型樣本。
KA69-BVB-1.5KW-4P-57.28-M3-180°
KA：系列代號
69：減速機規格代號
BVB：電機
1.5KW：電機功率
4P：電機級數
57.28：減速機傳動比
M3：減速機安裝位置
180°：接線盒位置
KA69減速器逆止器安裝：
KA69減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。齒輪減速電機
如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：
型號 | 逆止器最大逆止力矩 ［Nm］ | 最小超越轉速 ［r/min］ |
AD2/RS | 65 | 820 |
AD3/RS | 425 | 620 |
AD4/RS | 850 | 530 |
AD5/RS | 1450 | 480 |
AD6/RS | 1950 | 450 |
AD7/RS | 1950 | 450 |
AD8/RS | 1950 | 450 |
逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。
轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。
KA69減速器潤滑油更換：
由于KA69減速器發熱或KA69減速器油溫過高可能引起燙傷，對KA69減速器進行操作前先冷卻，KA69減速器必須保持一定溫度以避免由于油溫過低引起流動性差影響正常排放。直角減速機
通過放油螺栓和透氣閥進行換油：將一個容器置于放油螺栓下方；卸下油位檢查螺栓、透氣閥與放油螺栓；將潤滑油完全排放；重新擰入放油螺栓；通過透氣閥注入新的同類潤滑油（否則必須與客戶服務聯系），禁止混用不同種類的合成潤滑油；重新擰入油位檢查螺栓與透氣閥。
通過安裝蓋換油：擰開安裝蓋的螺絲，打開安裝蓋提取少許潤滑油，檢查潤滑油的狀況，將潤滑油完全排放，裝上安裝蓋。
通過密封螺栓換油：通過密封孔將潤滑油完全排放；通過檢查孔加入新的同類潤滑油（否則必須與客戶服務部聯系），禁止混用不同種類的合成潤滑油；檢查油位；重新擰緊密封螺栓。空心軸減速機
KA69減速器電機型號：
KWA67-Y0.18KWA，KWA67-Y0.25KWA，KWA67-Y0.37KWA，KWA67-Y0.55KWA，KWA67-Y0.75KWA，KWA67-Y1.1KWA，KWA67-Y1.5KWA，KWA67-Y100M4，KWA67-Y112M4，KWA67-Y2.2KWA，KWA67-Y3KWA，KWA67-Y4KWA，KWA67-Y5.5KWA，KWA67-Y63M4，KWA67-Y71M4，KWA67-Y80M4，KWA67-Y90M4，KWA67-YB100M4，KWA67-YB112M4，KWA67-YB132M4，KWA67-YB63M4，KWA67-YB71M4，KWA67-YB80M4，KWA67-YB90M4，KWA67-YDP100M4，KWA67-YDP112M4，KWA67-YDP132M4，KWA67-YDP63M4，KWA67-YDP71M4，KWA67-YDP80M4，KWA67-YDP90M4，KWA67-YE100M4，KWA67-YE112M4，KWA67-YE132M4，KWA67-YE63M4，KWA67-YE71M4，KWA67-YE80M4，KWA67-YE90M4，KWA67-YEJ100M4，KWA67-YEJ112M4，KWA67-YEJ132M4，KWA67-YEJ63M4，KWA67-YEJ71M4，KWA67-YEJ80M4，KWA67-YEJ90M4，KWA67-YEJB100M4，KWA67-YEJB112M4，KWA67-YEJB132M4，KWA67-YEJB63M4，KWA67-YEJB71M4，KWA67-YEJB80M4，KWA67-YEJB90M4，KWA67-YP100M4，KWA67-YP112M4，KWA67-YP132M4，KWA67-YP63M4，KWA67-YP71M4，KWA67-YP80M4，KWA67-YP90M4，KWA67-YPB100M4，KWA67-YPB112M4，KWA67-YPB132M4，KWA67-YPB63M4，KWA67-YPB71M4，KWA67-YPB80M4，KWA67-YPB90M4，KWA67-YPE100M4，KWA67-YPE112M4，KWA67-YPE132M4，KWA67-YPE63M4，KWA67-YPE71M4，KWA67-YPE80M4，KWA67-YPE90M4，KWA67-YS100M4，KWA67-YS112M4，KWA67-YS132M4，KWA67-YS63M4，KWA67-YS71M4，KWA67-YS80M4，KWA67-YS90M4，KWA67-YVB100M4，KWA67-YVB112M4，KWA67-YVB132M4，KWA67-YVB63M4，KWA67-YVB71M4，KWA67-YVB80M4，KWA67-YVB90M4，KWA67-YVP100M4，KWA67-YVP112M4，KWA67-YVP132M4，KWA67-YVP63M4，KWA67-YVP71M4，KWA67-YVP80M4，KWA67-YVP90M4，KWA67-YVPEJ100M4，KWA67-YVPEJ112M4，KWA67-YVPEJ132M4，KWA67-YVPEJ63M4，KWA67-YVPEJ71M4，KWA67-YVPEJ80M4，KWA67-YVPEJ90M4，XDKA67-Y0.18KWA，XDKA67-Y0.25KWA，XDKA67-Y0.37KWA，XDKA67-Y0.55KWA，XDKA67-Y0.75KWA，XDKA67-Y1.1KWA，XDKA67-Y1.5KWA，XDKA67-Y100M4，XDKA67-Y112M4，XDKA67-Y2.2KWA，XDKA67-Y3KWA，XDKA67-Y4KWA，XDKA67-Y5.5KWA，XDKA67-Y63M4，XDKA67-Y71M4，XDKA67-Y80M4，XDKA67-Y90M4，XDKA67-YB100M4，XDKA67-YB112M4，XDKA67-YB132M4，XDKA67-YB63M4，XDKA67-YB71M4，XDKA67-YB80M4，XDKA67-YB90M4，XDKA67-YDP100M4，XDKA67-YDP112M4，XDKA67-YDP132M4，XDKA67-YDP63M4，XDKA67-YDP71M4，XDKA67-YDP80M4，XDKA67-YDP90M4，XDKA67-YE100M4，XDKA67-YE112M4，XDKA67-YE132M4，XDKA67-YE63M4，XDKA67-YE71M4，XDKA67-YE80M4，XDKA67-YE90M4，XDKA67-YEJ100M4，XDKA67-YEJ112M4，XDKA67-YEJ132M4，XDKA67-YEJ63M4，XDKA67-YEJ71M4，XDKA67-YEJ80M4，XDKA67-YEJ90M4，XDKA67-YEJB100M4，XDKA67-YEJB112M4，XDKA67-YEJB132M4，XDKA67-YEJB63M4，XDKA67-YEJB71M4，XDKA67-YEJB80M4，XDKA67-YEJB90M4，XDKA67-YP100M4，XDKA67-YP112M4，XDKA67-YP132M4，XDKA67-YP63M4，XDKA67-YP71M4，XDKA67-YP80M4，XDKA67-YP90M4，XDKA67-YPB100M4，XDKA67-YPB112M4，XDKA67-YPB132M4，XDKA67-YPB63M4，XDKA67-YPB71M4，XDKA67-YPB80M4，XDKA67-YPB90M4，XDKA67-YPE100M4，XDKA67-YPE112M4，XDKA67-YPE132M4，XDKA67-YPE63M4，XDKA67-YPE71M4，XDKA67-YPE80M4，XDKA67-YPE90M4，XDKA67-YS100M4，XDKA67-YS112M4，XDKA67-YS132M4，XDKA67-YS63M4，XDKA67-YS71M4，XDKA67-YS80M4，XDKA67-YS90M4，XDKA67-YVB100M4，XDKA67-YVB112M4，XDKA67-YVB132M4，XDKA67-YVB63M4，XDKA67-YVB71M4，XDKA67-YVB80M4，XDKA67-YVB90M4，XDKA67-YVP100M4，XDKA67-YVP112M4，XDKA67-YVP132M4，XDKA67-YVP63M4，XDKA67-YVP71M4，XDKA67-YVP80M4，XDKA67-YVP90M4，XDKA67-YVPEJ100M4，XDKA67-YVPEJ112M4，XDKA67-YVPEJ132M4，XDKA67-YVPEJ63M4，XDKA67-YVPEJ71M4，XDKA67-YVPEJ80M4，XDKA67-YVPEJ90M4，JCKA67-Y0.18KWA，JCKA67-Y0.25KWA，JCKA67-Y0.37KWA，JCKA67-Y0.55KWA，JCKA67-Y0.75KWA，JCKA67-Y1.1KWA，JCKA67-Y1.5KWA，JCKA67-Y100M4，JCKA67-Y112M4，JCKA67-Y2.2KWA，JCKA67-Y3KWA，JCKA67-Y4KWA，JCKA67-Y5.5KWA，JCKA67-Y63M4，JCKA67-Y71M4，JCKA67-Y80M4，JCKA67-Y90M4，JCKA67-YB100M4，JCKA67-YB112M4，JCKA67-YB132M4，JCKA67-YB63M4，JCKA67-YB71M4，JCKA67-YB80M4，JCKA67-YB90M4，JCKA67-YDP100M4，JCKA67-YDP112M4，JCKA67-YDP132M4，JCKA67-YDP63M4，JCKA67-YDP71M4，JCKA67-YDP80M4，JCKA67-YDP90M4，JCKA67-YE100M4，JCKA67-YE112M4，JCKA67-YE132M4，JCKA67-YE63M4，JCKA67-YE71M4，JCKA67-YE80M4，JCKA67-YE90M4，JCKA67-YEJ100M4，JCKA67-YEJ112M4，JCKA67-YEJ132M4，JCKA67-YEJ63M4，JCKA67-YEJ71M4，JCKA67-YEJ80M4，JCKA67-YEJ90M4，JCKA67-YEJB100M4，JCKA67-YEJB112M4，JCKA67-YEJB132M4，JCKA67-YEJB63M4，JCKA67-YEJB71M4，JCKA67-YEJB80M4，JCKA67-YEJB90M4，JCKA67-YP100M4，JCKA67-YP112M4，JCKA67-YP132M4，JCKA67-YP63M4，JCKA67-YP71M4，JCKA67-YP80M4，JCKA67-YP90M4，JCKA67-YPB100M4，JCKA67-YPB112M4，JCKA67-YPB132M4，JCKA67-YPB63M4，JCKA67-YPB71M4，JCKA67-YPB80M4，JCKA67-YPB90M4，JCKA67-YPE100M4，JCKA67-YPE112M4，JCKA67-YPE132M4，JCKA67-YPE63M4，JCKA67-YPE71M4，JCKA67-YPE80M4，JCKA67-YPE90M4，JCKA67-YS100M4，JCKA67-YS112M4，JCKA67-YS132M4，JCKA67-YS63M4，JCKA67-YS71M4，JCKA67-YS80M4，JCKA67-YS90M4，JCKA67-YVB100M4，JCKA67-YVB112M4，JCKA67-YVB132M4，JCKA67-YVB63M4，JCKA67-YVB71M4，JCKA67-YVB80M4，JCKA67-YVB90M4，JCKA67-YVP100M4，JCKA67-YVP112M4，JCKA67-YVP132M4，JCKA67-YVP63M4，JCKA67-YVP71M4，JCKA67-YVP80M4，JCKA67-YVP90M4，JCKA67-YVPEJ100M4，JCKA67-YVPEJ112M4，JCKA67-YVPEJ132M4，JCKA67-YVPEJ63M4，JCKA67-YVPEJ71M4，JCKA67-YVPEJ80M4，JCKA67-YVPEJ90M4，YQKA67-Y0.18KWA，YQKA67-Y0.25KWA，YQKA67-Y0.37KWA，YQKA67-Y0.55KWA，YQKA67-Y0.75KWA，YQKA67-Y1.1KWA，YQKA67-Y1.5KWA，YQKA67-Y100M4，YQKA67-Y112M4，YQKA67-Y2.2KWA，YQKA67-Y3KWA，YQKA67-Y4KWA，YQKA67-Y5.5KWA，YQKA67-Y63M4，YQKA67-Y71M4，YQKA67-Y80M4，YQKA67-Y90M4，YQKA67-YB100M4，YQKA67-YB112M4，YQKA67-YB132M4，YQKA67-YB63M4，YQKA67-YB71M4，YQKA67-YB80M4，YQKA67-YB90M4，YQKA67-YDP100M4，YQKA67-YDP112M4，YQKA67-YDP132M4，YQKA67-YDP63M4，YQKA67-YDP71M4，YQKA67-YDP80M4，YQKA67-YDP90M4，YQKA67-YE100M4，YQKA67-YE112M4，YQKA67-YE132M4，YQKA67-YE63M4，YQKA67-YE71M4，YQKA67-YE80M4，YQKA67-YE90M4，YQKA67-YEJ100M4，YQKA67-YEJ112M4，YQKA67-YEJ132M4，YQKA67-YEJ63M4，YQKA67-YEJ71M4，YQKA67-YEJ80M4，YQKA67-YEJ90M4，YQKA67-YEJB100M4，YQKA67-YEJB112M4，YQKA67-YEJB132M4，YQKA67-YEJB63M4，YQKA67-YEJB71M4，YQKA67-YEJB80M4，YQKA67-YEJB90M4，YQKA67-YP100M4，YQKA67-YP112M4，YQKA67-YP132M4，YQKA67-YP63M4，YQKA67-YP71M4，YQKA67-YP80M4，YQKA67-YP90M4，YQKA67-YPB100M4，YQKA67-YPB112M4，YQKA67-YPB132M4，YQKA67-YPB63M4，YQKA67-YPB71M4，YQKA67-YPB80M4，YQKA67-YPB90M4，YQKA67-YPE100M4，YQKA67-YPE112M4，YQKA67-YPE132M4，YQKA67-YPE63M4，YQKA67-YPE71M4，YQKA67-YPE80M4，YQKA67-YPE90M4，YQKA67-YS100M4，YQKA67-YS112M4，YQKA67-YS132M4，YQKA67-YS63M4，YQKA67-YS71M4，YQKA67-YS80M4，YQKA67-YS90M4，YQKA67-YVB100M4，YQKA67-YVB112M4，YQKA67-YVB132M4，YQKA67-YVB63M4，YQKA67-YVB71M4，YQKA67-YVB80M4，YQKA67-YVB90M4，YQKA67-YVP100M4，YQKA67-YVP112M4，YQKA67-YVP132M4，YQKA67-YVP63M4，YQKA67-YVP71M4，YQKA67-YVP80M4，YQKA67-YVP90M4，YQKA67-YVPEJ100M4，YQKA67-YVPEJ112M4，YQKA67-YVPEJ132M4，YQKA67-YVPEJ63M4，YQKA67-YVPEJ71M4，YQKA67-YVPEJ80M4，YQKA67-YVPEJ90M4，KA69-Y0.18KWA，KA69-Y0.25KWA，KA69-Y0.37KWA，KA69-Y0.55KWA，KA69-Y0.75KWA，KA69-Y1.1KWA，KA69-Y1.5KWA，KA69-Y100M4，KA69-Y112M4，KA69-Y2.2KWA，KA69-Y3KWA，KA69-Y4KWA，KA69-Y5.5KWA，KA69-Y63M4，KA69-Y71M4，KA69-Y80M4，KA69-Y90M4，KA69-YB100M4，KA69-YB112M4，KA69-YB132M4，KA69-YB63M4，KA69-YB71M4，KA69-YB80M4，KA69-YB90M4，KA69-YDP100M4，KA69-YDP112M4，KA69-YDP132M4，KA69-YDP63M4，KA69-YDP71M4，KA69-YDP80M4，KA69-YDP90M4，KA69-YE100M4，KA69-YE112M4，KA69-YE132M4，KA69-YE63M4，KA69-YE71M4，KA69-YE80M4，KA69-YE90M4，KA69-YEJ100M4，KA69-YEJ112M4，KA69-YEJ132M4，KA69-YEJ63M4，KA69-YEJ71M4，KA69-YEJ80M4，KA69-YEJ90M4，KA69-YEJB100M4，KA69-YEJB112M4，KA69-YEJB132M4，KA69-YEJB63M4，KA69-YEJB71M4，KA69-YEJB80M4，KA69-YEJB90M4，KA69-YP100M4，KA69-YP112M4，KA69-YP132M4，KA69-YP63M4，KA69-YP71M4，KA69-YP80M4，KA69-YP90M4，KA69-YPB100M4，KA69-YPB112M4，KA69-YPB132M4，KA69-YPB63M4，KA69-YPB71M4，KA69-YPB80M4，KA69-YPB90M4，KA69-YPE100M4，KA69-YPE112M4，KA69-YPE132M4，KA69-YPE63M4，KA69-YPE71M4，KA69-YPE80M4，KA69-YPE90M4，KA69-YS100M4，KA69-YS112M4，KA69-YS132M4，KA69-YS63M4，KA69-YS71M4，KA69-YS80M4，KA69-YS90M4，KA69-YVB100M4，KA69-YVB112M4，KA69-YVB132M4，KA69-YVB63M4，KA69-YVB71M4，KA69-YVB80M4，KA69-YVB90M4，KA69-YVP100M4，KA69-YVP112M4，KA69-YVP132M4，KA69-YVP63M4，KA69-YVP71M4，KA69-YVP80M4，KA69-YVP90M4，KA69-YVPEJ100M4，KA69-YVPEJ112M4，KA69-YVPEJ132M4，KA69-YVPEJ63M4，KA69-YVPEJ71M4，KA69-YVPEJ80M4，KA69-YVPEJ90M4，KA67SF80，KA67SF90，KA67SF100，KA67SF112，KA67SF115，KA67SF140，KA67SF160，KA67SF190。
