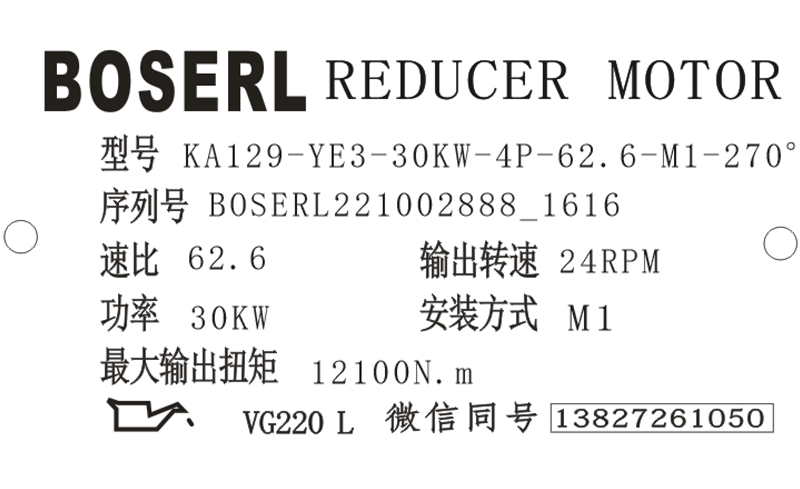

KA129減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA129減速機選型樣本。
KA129-YE3-30KW-4P-62.6-M1-270°
KA：系列代號
129：減速機規格代號
YE3：電機
30KW：電機功率
4P：電機級數
62.6：減速機傳動比
M1：減速機安裝位置
270°：接線盒位置
KA129減速機空心軸扭矩臂安裝：
裝配時不得對扭矩支架用力過猛，固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA129減速機的扭矩臂安裝示意圖：兩面均安裝支架，連接面B與連接A對稱安裝。齒輪減速電機
減速機型號 | 螺栓 | 擰緊扭矩 |
KA39減速機 | 4Xm10x25-8.8 | 48Nm |
KA49減速機 | 4Xm10x30-8.8 | 48Nm |
KA69減速機 | 4Xm12x35-8.8 | 86Nm |
KA79減速機 | 4Xm16x40-8.8 | 210Nm |
KA89減速機 | 4Xm16x45-8.8 | 210Nm |
KA99減速機 | 4Xm20x50-8.8 | 410Nm |
KA109減速機 | 4Xm24x60-8.8 | 710Nm |
KA129減速機 | 4Xm36x60-8.8 | 2500Nm |
KA159減速機 | 4Xm36x60-8.8 | 2500Nm |
KA169減速機 | 4Xm30x60-8.8 | 1450Nm |
KA189減速機 | 4Xm36x60-8.8 | 2500Nm |
KA129減速機電機安裝和電機安裝位置的調整：
均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA129減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。直角減速機
將電機與電機安裝平臺對準(軸端不許對齊)并固定。
將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。
裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。
擰緊非調整螺母以固定螺桿。空心軸減速機
KA129減速機型號：
WKA127-Y112M4，WKA127-Y11SKA，WKA127-Y132M4，WKA127-Y15SKA，WKA127-Y160M4，WKA127-Y18.5SKA，WKA127-Y180M4，WKA127-Y200M4，WKA127-Y225M4，WKA127-Y22SKA，WKA127-Y250M4，WKA127-Y280M4，WKA127-Y30SKA，WKA127-Y37SKA，WKA127-Y45SKA，WKA127-Y4SKA，WKA127-Y5.5SKA，WKA127-Y55SKA，WKA127-Y7.5SKA，WKA127-Y75SKA，WKA127-YB112M4，WKA127-YB132M4，WKA127-YB160M4，WKA127-YB180M4，WKA127-YB200M4，WKA127-YB225M4，WKA127-YB250M4，WKA127-YB280M4，WKA127-YDP112M4，WKA127-YDP132M4，WKA127-YDP160M4，WKA127-YDP180M4，WKA127-YDP200M4，WKA127-YDP225M4，WKA127-YDP250M4，WKA127-YDP280M4，WKA127-YE112M4，WKA127-YE132M4，WKA127-YE160M4，WKA127-YE180M4，WKA127-YE200M4，WKA127-YE225M4，WKA127-YE250M4，WKA127-YE280M4，WKA127-YEJ112M4，WKA127-YEJ132M4，WKA127-YEJ160M4，WKA127-YEJ180M4，WKA127-YEJ200M4，WKA127-YEJ225M4，WKA127-YEJ250M4，WKA127-YEJ280M4，WKA127-YEJB112M4，WKA127-YEJB132M4，WKA127-YEJB160M4，WKA127-YEJB180M4，WKA127-YEJB200M4，WKA127-YEJB225M4，WKA127-YEJB250M4，WKA127-YEJB280M4，WKA127-YP112M4，WKA127-YP132M4，WKA127-YP160M4，WKA127-YP180M4，WKA127-YP200M4，WKA127-YP225M4，WKA127-YP250M4，WKA127-YP280M4，WKA127-YPB112M4，WKA127-YPB132M4，WKA127-YPB160M4，WKA127-YPB180M4，WKA127-YPB200M4，WKA127-YPB225M4，WKA127-YPB250M4，WKA127-YPB280M4，WKA127-YPE112M4，WKA127-YPE132M4，WKA127-YPE160M4，WKA127-YPE180M4，WKA127-YPE200M4，WKA127-YPE225M4，WKA127-YPE250M4，WKA127-YPE280M4，WKA127-YS112M4，WKA127-YS132M4，WKA127-YS160M4，WKA127-YS180M4，WKA127-YS200M4，WKA127-YS225M4，WKA127-YS250M4，WKA127-YS280M4，WKA127-YVB112M4，WKA127-YVB132M4，WKA127-YVB160M4，WKA127-YVB180M4，WKA127-YVB200M4，WKA127-YVB225M4，WKA127-YVB250M4，WKA127-YVB280M4，WKA127-YVP112M4，WKA127-YVP132M4，WKA127-YVP160M4，WKA127-YVP180M4，WKA127-YVP200M4，WKA127-YVP225M4，WKA127-YVP250M4，WKA127-YVP280M4，WKA127-YVPEJ112M4，WKA127-YVPEJ132M4，WKA127-YVPEJ160M4，WKA127-YVPEJ180M4，WKA127-YVPEJ200M4，WKA127-YVPEJ225M4，WKA127-YVPEJ250M4，WKA127-YVPEJ280M4，AKA127-Y112M4，AKA127-Y11SKA，AKA127-Y132M4，AKA127-Y15SKA，AKA127-Y160M4，AKA127-Y18.5SKA，AKA127-Y180M4，AKA127-Y200M4，AKA127-Y225M4，AKA127-Y22SKA，AKA127-Y250M4，AKA127-Y280M4，AKA127-Y30SKA，AKA127-Y37SKA，AKA127-Y45SKA，AKA127-Y4SKA，AKA127-Y5.5SKA，AKA127-Y55SKA，AKA127-Y7.5SKA，AKA127-Y75SKA，AKA127-YB112M4，AKA127-YB132M4，AKA127-YB160M4，AKA127-YB180M4，AKA127-YB200M4，AKA127-YB225M4，AKA127-YB250M4，AKA127-YB280M4，AKA127-YDP112M4，AKA127-YDP132M4，AKA127-YDP160M4，AKA127-YDP180M4，AKA127-YDP200M4，AKA127-YDP225M4，AKA127-YDP250M4，AKA127-YDP280M4，AKA127-YE112M4，AKA127-YE132M4，AKA127-YE160M4，AKA127-YE180M4，AKA127-YE200M4，AKA127-YE225M4，AKA127-YE250M4，AKA127-YE280M4，AKA127-YEJ112M4，AKA127-YEJ132M4，AKA127-YEJ160M4，AKA127-YEJ180M4，AKA127-YEJ200M4，AKA127-YEJ225M4，AKA127-YEJ250M4，AKA127-YEJ280M4，AKA127-YEJB112M4，AKA127-YEJB132M4，AKA127-YEJB160M4，AKA127-YEJB180M4，AKA127-YEJB200M4，AKA127-YEJB225M4，AKA127-YEJB250M4，AKA127-YEJB280M4，AKA127-YP112M4，AKA127-YP132M4，AKA127-YP160M4，AKA127-YP180M4，AKA127-YP200M4，AKA127-YP225M4，AKA127-YP250M4，AKA127-YP280M4，AKA127-YPB112M4，AKA127-YPB132M4，AKA127-YPB160M4，AKA127-YPB180M4，AKA127-YPB200M4，AKA127-YPB225M4，AKA127-YPB250M4，AKA127-YPB280M4，AKA127-YPE112M4，AKA127-YPE132M4，AKA127-YPE160M4，AKA127-YPE180M4，AKA127-YPE200M4，AKA127-YPE225M4，AKA127-YPE250M4，AKA127-YPE280M4，AKA127-YS112M4，AKA127-YS132M4，AKA127-YS160M4，AKA127-YS180M4，AKA127-YS200M4，AKA127-YS225M4，AKA127-YS250M4，AKA127-YS280M4，AKA127-YVB112M4，AKA127-YVB132M4，AKA127-YVB160M4，AKA127-YVB180M4，AKA127-YVB200M4，AKA127-YVB225M4，AKA127-YVB250M4，AKA127-YVB280M4，AKA127-YVP112M4，AKA127-YVP132M4，AKA127-YVP160M4，AKA127-YVP180M4，AKA127-YVP200M4，AKA127-YVP225M4，AKA127-YVP250M4，AKA127-YVP280M4，AKA127-YVPEJ112M4，AKA127-YVPEJ132M4，AKA127-YVPEJ160M4，AKA127-YVPEJ180M4，AKA127-YVPEJ200M4，AKA127-YVPEJ225M4，AKA127-YVPEJ250M4，AKA127-YVPEJ280M4，NKA127-Y112M4，NKA127-Y11SKA，NKA127-Y132M4，NKA127-Y15SKA，NKA127-Y160M4，NKA127-Y18.5SKA，NKA127-Y180M4，NKA127-Y200M4，NKA127-Y225M4，NKA127-Y22SKA，NKA127-Y250M4，NKA127-Y280M4，NKA127-Y30SKA，NKA127-Y37SKA，NKA127-Y45SKA，NKA127-Y4SKA，NKA127-Y5.5SKA，NKA127-Y55SKA，NKA127-Y7.5SKA，NKA127-Y75SKA，NKA127-YB112M4，NKA127-YB132M4，NKA127-YB160M4，NKA127-YB180M4，NKA127-YB200M4，NKA127-YB225M4，NKA127-YB250M4，NKA127-YB280M4，NKA127-YDP112M4，NKA127-YDP132M4，NKA127-YDP160M4，NKA127-YDP180M4，NKA127-YDP200M4，NKA127-YDP225M4，NKA127-YDP250M4，NKA127-YDP280M4，NKA127-YE112M4，NKA127-YE132M4，NKA127-YE160M4，NKA127-YE180M4，NKA127-YE200M4，NKA127-YE225M4，NKA127-YE250M4，NKA127-YE280M4，NKA127-YEJ112M4，NKA127-YEJ132M4，NKA127-YEJ160M4，NKA127-YEJ180M4，NKA127-YEJ200M4，NKA127-YEJ225M4，NKA127-YEJ250M4，NKA127-YEJ280M4，NKA127-YEJB112M4，NKA127-YEJB132M4，NKA127-YEJB160M4，NKA127-YEJB180M4，NKA127-YEJB200M4，NKA127-YEJB225M4，NKA127-YEJB250M4，NKA127-YEJB280M4，NKA127-YP112M4，NKA127-YP132M4，NKA127-YP160M4，NKA127-YP180M4，NKA127-YP200M4，NKA127-YP225M4，NKA127-YP250M4，NKA127-YP280M4，NKA127-YPB112M4，NKA127-YPB132M4，NKA127-YPB160M4，NKA127-YPB180M4，NKA127-YPB200M4，NKA127-YPB225M4，NKA127-YPB250M4，NKA127-YPB280M4，NKA127-YPE112M4，NKA127-YPE132M4，NKA127-YPE160M4，NKA127-YPE180M4，NKA127-YPE200M4，NKA127-YPE225M4，NKA127-YPE250M4，NKA127-YPE280M4，NKA127-YS112M4，NKA127-YS132M4，NKA127-YS160M4，NKA127-YS180M4，NKA127-YS200M4，NKA127-YS225M4，NKA127-YS250M4，NKA127-YS280M4，NKA127-YVB112M4，NKA127-YVB132M4，NKA127-YVB160M4，NKA127-YVB180M4，NKA127-YVB200M4，NKA127-YVB225M4，NKA127-YVB250M4，NKA127-YVB280M4，NKA127-YVP112M4，NKA127-YVP132M4，NKA127-YVP160M4，NKA127-YVP180M4，NKA127-YVP200M4，NKA127-YVP225M4，NKA127-YVP250M4，NKA127-YVP280M4，NKA127-YVPEJ112M4，NKA127-YVPEJ132M4，NKA127-YVPEJ160M4，NKA127-YVPEJ180M4，NKA127-YVPEJ200M4，NKA127-YVPEJ225M4，NKA127-YVPEJ250M4，NKA127-YVPEJ280M4，SKA127-Y112M4，SKA127-Y11SKA，SKA127-Y132M4，SKA127-Y15SKA，SKA127-Y160M4，SKA127-Y18.5SKA，SKA127-Y180M4，SKA127-Y200M4，SKA127-Y225M4，SKA127-Y22SKA，SKA127-Y250M4，SKA127-Y280M4，SKA127-Y30SKA，SKA127-Y37SKA，SKA127-Y45SKA，SKA127-Y4SKA，SKA127-Y5.5SKA，SKA127-Y55SKA，SKA127-Y7.5SKA，SKA127-Y75SKA，SKA127-YB112M4，SKA127-YB132M4，SKA127-YB160M4，SKA127-YB180M4，SKA127-YB200M4，SKA127-YB225M4，SKA127-YB250M4，SKA127-YB280M4，SKA127-YDP112M4，SKA127-YDP132M4，SKA127-YDP160M4，SKA127-YDP180M4，SKA127-YDP200M4，SKA127-YDP225M4，SKA127-YDP250M4，SKA127-YDP280M4，SKA127-YE112M4，SKA127-YE132M4，SKA127-YE160M4，SKA127-YE180M4，SKA127-YE200M4，SKA127-YE225M4，SKA127-YE250M4，SKA127-YE280M4，SKA127-YEJ112M4，SKA127-YEJ132M4，SKA127-YEJ160M4，SKA127-YEJ180M4，SKA127-YEJ200M4，SKA127-YEJ225M4，SKA127-YEJ250M4，SKA127-YEJ280M4，SKA127-YEJB112M4，SKA127-YEJB132M4，SKA127-YEJB160M4，SKA127-YEJB180M4，SKA127-YEJB200M4，SKA127-YEJB225M4，SKA127-YEJB250M4，SKA127-YEJB280M4，SKA127-YP112M4，SKA127-YP132M4，SKA127-YP160M4，SKA127-YP180M4，SKA127-YP200M4，SKA127-YP225M4，SKA127-YP250M4，SKA127-YP280M4，SKA127-YPB112M4，SKA127-YPB132M4，SKA127-YPB160M4，SKA127-YPB180M4，SKA127-YPB200M4，SKA127-YPB225M4，SKA127-YPB250M4，SKA127-YPB280M4，SKA127-YPE112M4，SKA127-YPE132M4，SKA127-YPE160M4，SKA127-YPE180M4，SKA127-YPE200M4，SKA127-YPE225M4，SKA127-YPE250M4，SKA127-YPE280M4，SKA127-YS112M4，SKA127-YS132M4，SKA127-YS160M4，SKA127-YS180M4，SKA127-YS200M4，SKA127-YS225M4，SKA127-YS250M4，SKA127-YS280M4，SKA127-YVB112M4，SKA127-YVB132M4，SKA127-YVB160M4，SKA127-YVB180M4，SKA127-YVB200M4，SKA127-YVB225M4，SKA127-YVB250M4，SKA127-YVB280M4，SKA127-YVP112M4，SKA127-YVP132M4，SKA127-YVP160M4，SKA127-YVP180M4，SKA127-YVP200M4，SKA127-YVP225M4，SKA127-YVP250M4，SKA127-YVP280M4，SKA127-YVPEJ112M4，SKA127-YVPEJ132M4，SKA127-YVPEJ160M4，SKA127-YVPEJ180M4，SKA127-YVPEJ200M4，SKA127-YVPEJ225M4，SKA127-YVPEJ250M4，SKA127-YVPEJ280M4，GKA129-Y112M4，GKA129-Y11SKA，GKA129-Y132M4，GKA129-Y15SKA，GKA129-Y160M4，GKA129-Y18.5SKA，GKA129-Y180M4，GKA129-Y200M4，GKA129-Y225M4，GKA129-Y22SKA，GKA129-Y250M4，GKA129-Y280M4，GKA129-Y30SKA，GKA129-Y37SKA，GKA129-Y45SKA，GKA129-Y4SKA，GKA129-Y5.5SKA，GKA129-Y55SKA，GKA129-Y7.5SKA，GKA129-Y75SKA，GKA129-YB112M4，GKA129-YB132M4，GKA129-YB160M4，GKA129-YB180M4，GKA129-YB200M4，GKA129-YB225M4，GKA129-YB250M4，GKA129-YB280M4，GKA129-YDP112M4，GKA129-YDP132M4，GKA129-YDP160M4，GKA129-YDP180M4，GKA129-YDP200M4，GKA129-YDP225M4，GKA129-YDP250M4，GKA129-YDP280M4，GKA129-YE112M4，GKA129-YE132M4，GKA129-YE160M4，GKA129-YE180M4，GKA129-YE200M4，GKA129-YE225M4，GKA129-YE250M4，GKA129-YE280M4，GKA129-YEJ112M4，GKA129-YEJ132M4，GKA129-YEJ160M4，GKA129-YEJ180M4，GKA129-YEJ200M4，GKA129-YEJ225M4，GKA129-YEJ250M4，GKA129-YEJ280M4，GKA129-YEJB112M4，GKA129-YEJB132M4，GKA129-YEJB160M4，GKA129-YEJB180M4，GKA129-YEJB200M4，GKA129-YEJB225M4，GKA129-YEJB250M4，GKA129-YEJB280M4，GKA129-YP112M4，GKA129-YP132M4，GKA129-YP160M4，GKA129-YP180M4，GKA129-YP200M4，GKA129-YP225M4，GKA129-YP250M4，GKA129-YP280M4，GKA129-YPB112M4，GKA129-YPB132M4，GKA129-YPB160M4，GKA129-YPB180M4，GKA129-YPB200M4，GKA129-YPB225M4，GKA129-YPB250M4，GKA129-YPB280M4，GKA129-YPE112M4，GKA129-YPE132M4，GKA129-YPE160M4，GKA129-YPE180M4，GKA129-YPE200M4，GKA129-YPE225M4，GKA129-YPE250M4，GKA129-YPE280M4，GKA129-YS112M4，GKA129-YS132M4，GKA129-YS160M4，GKA129-YS180M4，GKA129-YS200M4，GKA129-YS225M4，GKA129-YS250M4，GKA129-YS280M4，GKA129-YVB112M4，GKA129-YVB132M4，GKA129-YVB160M4，GKA129-YVB180M4，GKA129-YVB200M4，GKA129-YVB225M4，GKA129-YVB250M4，GKA129-YVB280M4，GKA129-YVP112M4，GKA129-YVP132M4，GKA129-YVP160M4，GKA129-YVP180M4，GKA129-YVP200M4，GKA129-YVP225M4，GKA129-YVP250M4，GKA129-YVP280M4，GKA129-YVPEJ112M4，GKA129-YVPEJ132M4，GKA129-YVPEJ160M4，GKA129-YVPEJ180M4，GKA129-YVPEJ200M4，GKA129-YVPEJ225M4，GKA129-YVPEJ250M4，GKA129-YVPEJ280M4。
KA129減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.zhbhgs.cn/product/list-kaxiliejiansuji-cn.html
推薦類似型號：K129減速機
關鍵詞:直角中空減速機帶電機一體化_空心軸減速機_中孔輸出減速機_通孔減速機_KA系列減速機_GKA系列減速機_KA系列減速器_空心軸減速器_直角中空減速器_中孔輸出減速器_通孔減速器
KA系列齒輪減速電機型號：KA39減速機,KA49減速機,KA59減速機,KA69減速機,KA79減速機,KA89減速機,KA99減速機,KA109減速機,KA129減速機,KA159減速機,KA169減速機,KA189減速機
KA系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
