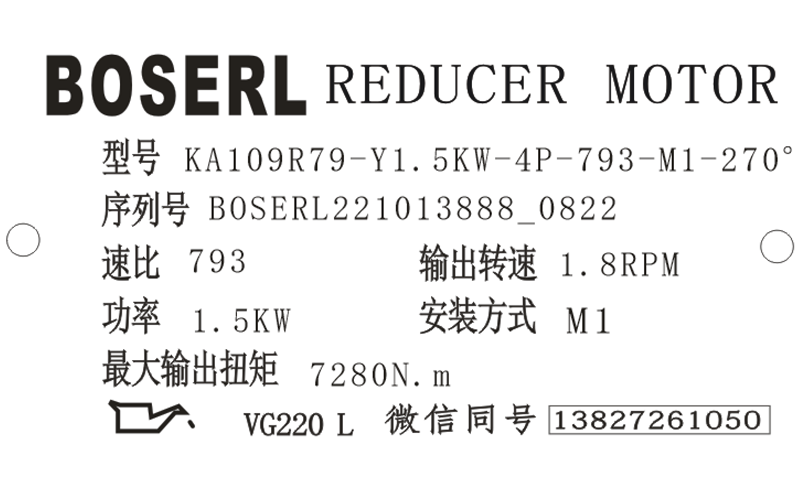

KA109R79減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA109R79減速機選型樣本。

KA109R79-Y1.5KW-4P-793-M1-270°

KA/R：系列代號

109/79：減速機規格代號

Y：電機

1.5KW：電機功率

4P：電機級數

793：減速機傳動比

M1：減速機安裝位置

270°：接線盒位置

KA109R79減速機電機保養檢查：

KA109R79減速機電機一般檢查：定期檢查電機。檢查頻率取決于周圍空氣的潮濕程度以及當地的天氣狀況?？深A先通過試驗確定，并嚴格遵守；保持電機清潔和自然通風。在多灰塵環境中使用電機時必須定期檢查通風系統并進行清潔；檢查油封的狀況，必要時應更換；檢查接線和安裝螺栓的狀況。齒輪減速電機

做一般定期檢查時，請需注意：溫度上升齒輪減速電機為F級絕緣，全密閉外扇構造，所以電機表面溫度比周圍高50°C左右即屬正常;如果溫度高于以上時，必須停機檢查（因素：電機或負載傳動系統異常）。

KA109R79減速機剎車電機剎車片因長時間使用會有磨損，請依據剎車間隙值進行調整（正常間隙值0.3~0.7mm）。

KA109R79減速機電機異常振動、噪音正常情況，本機幾乎沒有振動噪音。若有某些安裝異常使用，會產生振動噪音，所以請特別留意（當空載噪音值在70dB(A)/1M以下時，是被容許的）；電機通風口有時會積聚雜物妨礙通風，所以請清除電機外部，以確保電機正常運行溫度；定期檢查時，請用兆歐表以500V測試電機繞組之絕緣阻抗，對地電阻應1MQ以上，以避免漏電之風險。

測定絕緣電阻時，請勿觸摸端子。否則有可能會導致觸電。減速電機工作時的表面溫度較高，請勿赤手觸摸。否則有可能會導致燙傷。請勿超出額定負載使用。否則有可能會導致受傷、裝置損壞。單相電機的啟動用電容器的通電部分，在未完全放電前請勿觸及。否則有可能會導致觸電。使電機反轉時，請務必暫停后開始反轉。否則有可能會出現旋轉方向未發生改變的電機失控。直角減速機

KA109R79減速機電機不轉解決方案：

電源未接通或接觸不良或電源電壓過低，排查維修；

過載跳閘，選擇大容量電機或減輕負載；

機械故障，檢查電機和傳動裝置是否可以自由轉動。檢查軸承和潤滑脂；

電機卡死，更換電機；

電源連接錯誤，核對接線是否與電機接線圖一致；空心軸減速機

定子繞組斷路，用萬用表歐姆檔檢查，若有相無電阻，則是此原因，確認后換線圈繞組；

定子繞組匝間短路，用萬用表歐姆檔檢查，若有相電阻與標佳值偏差夭于10%，則是此原因，確認后換線圈繞組；

定子繞組對地短路，用萬用表歐姆檔檢查，若線圈與機殼間有電阻小于1000歐，則是此原因，確認后換線圈繞組；

定子繞組接線錯誤，拆開電機找出錯誤，重新接線；

定子線圈的6引線接錯，換定子線圈。

KA109R79減速電機型號：

YQKA107R77-Y100M4，YQKA107R77-Y112M4，YQKA107R77-Y132M4，YQKA107R77-Y63M4，YQKA107R77-Y71M4，YQKA107R77-Y80M4，YQKA107R77-Y90M4，YQKA107RF77-Y0.12KWA，YQKA107RF77-Y0.18KWA，YQKA107RF77-Y0.25KWA，YQKA107RF77-Y0.37KWA，YQKA107RF77-Y0.55KWA，YQKA107RF77-Y0.75KWA，YQKA107RF77-Y1.1KWA，YQKA107RF77-Y1.5KWA，YQKA107RF77-Y100M4，YQKA107RF77-Y112M4，YQKA107RF77-Y132M4，YQKA107RF77-Y2.2KWA，YQKA107RF77-Y3KWA，YQKA107RF77-Y4KWA，YQKA107RF77-Y5.5KWA，YQKA107RF77-Y63M4，YQKA107RF77-Y7.5KWA，YQKA107RF77-Y71M4，YQKA107RF77-Y80M4，YQKA107RF77-Y90M4，YQKA107RF77-YB100L4，YQKA107RF77-YB112M4，YQKA107RF77-YB132M4，YQKA107RF77-YB63M4，YQKA107RF77-YB71M4，YQKA107RF77-YB80M4，YQKA107RF77-YB90S4，YQKA107RF77-YDP100L4，YQKA107RF77-YDP112M4，YQKA107RF77-YDP132M4，YQKA107RF77-YDP63M4，YQKA107RF77-YDP71M4，YQKA107RF77-YDP80M4，YQKA107RF77-YDP90S4，YQKA107RF77-YE100L4，YQKA107RF77-YE112M4，YQKA107RF77-YE132M4，YQKA107RF77-YE63M4，YQKA107RF77-YE71M4，YQKA107RF77-YE80M4，YQKA107RF77-YE90S4，YQKA107RF77-YEJ100L4，YQKA107RF77-YEJ112M4，YQKA107RF77-YEJ132M4，YQKA107RF77-YEJ63M4，YQKA107RF77-YEJ71M4，YQKA107RF77-YEJ80M4，YQKA107RF77-YEJ90S4，YQKA107RF77-YEJB100L4，YQKA107RF77-YEJB112M4，YQKA107RF77-YEJB132M4，YQKA107RF77-YEJB63M4，YQKA107RF77-YEJB71M4，YQKA107RF77-YEJB80M4，YQKA107RF77-YEJB90S4，YQKA107RF77-YP100L4，YQKA107RF77-YP112M4，YQKA107RF77-YP132M4，YQKA107RF77-YP63M4，YQKA107RF77-YP71M4，YQKA107RF77-YP80M4，YQKA107RF77-YP90S4，YQKA107RF77-YPB100L4，YQKA107RF77-YPB112M4，YQKA107RF77-YPB132M4，YQKA107RF77-YPB63M4，YQKA107RF77-YPB71M4，YQKA107RF77-YPB80M4，YQKA107RF77-YPB90S4，YQKA107RF77-YPE100L4，YQKA107RF77-YPE112M4，YQKA107RF77-YPE132M4，YQKA107RF77-YPE63M4，YQKA107RF77-YPE71M4，YQKA107RF77-YPE80M4，YQKA107RF77-YPE90S4，YQKA107RF77-YS100L4，YQKA107RF77-YS112M4，YQKA107RF77-YS132M4，YQKA107RF77-YS63M4，YQKA107RF77-YS71M4，YQKA107RF77-YS80M4，YQKA107RF77-YS90S4，YQKA107RF77-YVB100L4，YQKA107RF77-YVB112M4，YQKA107RF77-YVB132M4，YQKA107RF77-YVB63M4，YQKA107RF77-YVB71M4，YQKA107RF77-YVB80M4，YQKA107RF77-YVB90S4，YQKA107RF77-YVP100L4，YQKA107RF77-YVP112M4，YQKA107RF77-YVP132M4，YQKA107RF77-YVP63M4，YQKA107RF77-YVP71M4，YQKA107RF77-YVP80M4，YQKA107RF77-YVP90S4，YQKA107RF77-YVPEJ100L4，YQKA107RF77-YVPEJ112M4，YQKA107RF77-YVPEJ132M4，YQKA107RF77-YVPEJ63M4，YQKA107RF77-YVPEJ71M4，YQKA107RF77-YVPEJ80M4，YQKA107RF77-YVPEJ90S4，AKA107R77-Y100M4，AKA107R77-Y112M4，AKA107R77-Y132M4，AKA107R77-Y63M4，AKA107R77-Y71M4，AKA107R77-Y80M4，AKA107R77-Y90M4，AKA107RF77-Y0.12KWA，AKA107RF77-Y0.18KWA，AKA107RF77-Y0.25KWA，AKA107RF77-Y0.37KWA，AKA107RF77-Y0.55KWA，AKA107RF77-Y0.75KWA，AKA107RF77-Y1.1KWA，AKA107RF77-Y1.5KWA，AKA107RF77-Y100M4，AKA107RF77-Y112M4，AKA107RF77-Y132M4，AKA107RF77-Y2.2KWA，AKA107RF77-Y3KWA，AKA107RF77-Y4KWA，AKA107RF77-Y5.5KWA，AKA107RF77-Y63M4，AKA107RF77-Y7.5KWA，AKA107RF77-Y71M4，AKA107RF77-Y80M4，AKA107RF77-Y90M4，AKA107RF77-YB100L4，AKA107RF77-YB112M4，AKA107RF77-YB132M4，AKA107RF77-YB63M4，AKA107RF77-YB71M4，AKA107RF77-YB80M4，AKA107RF77-YB90S4，AKA107RF77-YDP100L4，AKA107RF77-YDP112M4，AKA107RF77-YDP132M4，AKA107RF77-YDP63M4，AKA107RF77-YDP71M4，AKA107RF77-YDP80M4，AKA107RF77-YDP90S4，AKA107RF77-YE100L4，AKA107RF77-YE112M4，AKA107RF77-YE132M4，AKA107RF77-YE63M4，AKA107RF77-YE71M4，AKA107RF77-YE80M4，AKA107RF77-YE90S4，AKA107RF77-YEJ100L4，AKA107RF77-YEJ112M4，AKA107RF77-YEJ132M4，AKA107RF77-YEJ63M4，AKA107RF77-YEJ71M4，AKA107RF77-YEJ80M4，AKA107RF77-YEJ90S4，AKA107RF77-YEJB100L4，AKA107RF77-YEJB112M4，AKA107RF77-YEJB132M4，AKA107RF77-YEJB63M4，AKA107RF77-YEJB71M4，AKA107RF77-YEJB80M4，AKA107RF77-YEJB90S4，AKA107RF77-YP100L4，AKA107RF77-YP112M4，AKA107RF77-YP132M4，AKA107RF77-YP63M4，AKA107RF77-YP71M4，AKA107RF77-YP80M4，AKA107RF77-YP90S4，AKA107RF77-YPB100L4，AKA107RF77-YPB112M4，AKA107RF77-YPB132M4，AKA107RF77-YPB63M4，AKA107RF77-YPB71M4，AKA107RF77-YPB80M4，AKA107RF77-YPB90S4，AKA107RF77-YPE100L4，AKA107RF77-YPE112M4，AKA107RF77-YPE132M4，AKA107RF77-YPE63M4，AKA107RF77-YPE71M4，AKA107RF77-YPE80M4，AKA107RF77-YPE90S4，AKA107RF77-YS100L4，AKA107RF77-YS112M4，AKA107RF77-YS132M4，AKA107RF77-YS63M4，AKA107RF77-YS71M4，AKA107RF77-YS80M4，AKA107RF77-YS90S4，AKA107RF77-YVB100L4，AKA107RF77-YVB112M4，AKA107RF77-YVB132M4，AKA107RF77-YVB63M4，AKA107RF77-YVB71M4，AKA107RF77-YVB80M4，AKA107RF77-YVB90S4，AKA107RF77-YVP100L4，AKA107RF77-YVP112M4，AKA107RF77-YVP132M4，AKA107RF77-YVP63M4，AKA107RF77-YVP71M4，AKA107RF77-YVP80M4，AKA107RF77-YVP90S4，AKA107RF77-YVPEJ100L4，AKA107RF77-YVPEJ112M4，AKA107RF77-YVPEJ132M4，AKA107RF77-YVPEJ63M4，AKA107RF77-YVPEJ71M4，AKA107RF77-YVPEJ80M4，AKA107RF77-YVPEJ90S4，SKA107R77-Y100M4，SKA107R77-Y112M4，SKA107R77-Y132M4，SKA107R77-Y63M4，SKA107R77-Y71M4，SKA107R77-Y80M4，SKA107R77-Y90M4，SKA107RF77-Y0.12KWA，SKA107RF77-Y0.18KWA，SKA107RF77-Y0.25KWA，SKA107RF77-Y0.37KWA，SKA107RF77-Y0.55KWA，SKA107RF77-Y0.75KWA，SKA107RF77-Y1.1KWA，SKA107RF77-Y1.5KWA，SKA107RF77-Y100M4，SKA107RF77-Y112M4，SKA107RF77-Y132M4，SKA107RF77-Y2.2KWA，SKA107RF77-Y3KWA，SKA107RF77-Y4KWA，SKA107RF77-Y5.5KWA，SKA107RF77-Y63M4，SKA107RF77-Y7.5KWA，SKA107RF77-Y71M4，SKA107RF77-Y80M4，SKA107RF77-Y90M4，SKA107RF77-YB100L4，SKA107RF77-YB112M4，SKA107RF77-YB132M4，SKA107RF77-YB63M4，SKA107RF77-YB71M4，SKA107RF77-YB80M4，SKA107RF77-YB90S4，SKA107RF77-YDP100L4，SKA107RF77-YDP112M4，SKA107RF77-YDP132M4，SKA107RF77-YDP63M4，SKA107RF77-YDP71M4，SKA107RF77-YDP80M4，SKA107RF77-YDP90S4，SKA107RF77-YE100L4，SKA107RF77-YE112M4，SKA107RF77-YE132M4，SKA107RF77-YE63M4，SKA107RF77-YE71M4，SKA107RF77-YE80M4，SKA107RF77-YE90S4，SKA107RF77-YEJ100L4，SKA107RF77-YEJ112M4，SKA107RF77-YEJ132M4，SKA107RF77-YEJ63M4，SKA107RF77-YEJ71M4，SKA107RF77-YEJ80M4，SKA107RF77-YEJ90S4，SKA107RF77-YEJB100L4，SKA107RF77-YEJB112M4，SKA107RF77-YEJB132M4，SKA107RF77-YEJB63M4，SKA107RF77-YEJB71M4，SKA107RF77-YEJB80M4，SKA107RF77-YEJB90S4，SKA107RF77-YP100L4，SKA107RF77-YP112M4，SKA107RF77-YP132M4，SKA107RF77-YP63M4，SKA107RF77-YP71M4，SKA107RF77-YP80M4，SKA107RF77-YP90S4，SKA107RF77-YPB100L4，SKA107RF77-YPB112M4，SKA107RF77-YPB132M4，SKA107RF77-YPB63M4，SKA107RF77-YPB71M4，SKA107RF77-YPB80M4，SKA107RF77-YPB90S4，SKA107RF77-YPE100L4，SKA107RF77-YPE112M4，SKA107RF77-YPE132M4，SKA107RF77-YPE63M4，SKA107RF77-YPE71M4，SKA107RF77-YPE80M4，SKA107RF77-YPE90S4，SKA107RF77-YS100L4，SKA107RF77-YS112M4，SKA107RF77-YS132M4，SKA107RF77-YS63M4，SKA107RF77-YS71M4，SKA107RF77-YS80M4，SKA107RF77-YS90S4，SKA107RF77-YVB100L4，SKA107RF77-YVB112M4，SKA107RF77-YVB132M4，SKA107RF77-YVB63M4，SKA107RF77-YVB71M4，SKA107RF77-YVB80M4，SKA107RF77-YVB90S4，SKA107RF77-YVP100L4，SKA107RF77-YVP112M4，SKA107RF77-YVP132M4，SKA107RF77-YVP63M4，SKA107RF77-YVP71M4，SKA107RF77-YVP80M4，SKA107RF77-YVP90S4，SKA107RF77-YVPEJ100L4，SKA107RF77-YVPEJ112M4，SKA107RF77-YVPEJ132M4，SKA107RF77-YVPEJ63M4，SKA107RF77-YVPEJ71M4，SKA107RF77-YVPEJ80M4，SKA107RF77-YVPEJ90S4，XDKA107R77-Y100M4，XDKA107R77-Y112M4，XDKA107R77-Y132M4，XDKA107R77-Y63M4，XDKA107R77-Y71M4，XDKA107R77-Y80M4，XDKA107R77-Y90M4，XDKA107RF77-Y0.12KWA，XDKA107RF77-Y0.18KWA，XDKA107RF77-Y0.25KWA，XDKA107RF77-Y0.37KWA，XDKA107RF77-Y0.55KWA，XDKA107RF77-Y0.75KWA，XDKA107RF77-Y1.1KWA，XDKA107RF77-Y1.5KWA，XDKA107RF77-Y100M4，XDKA107RF77-Y112M4，XDKA107RF77-Y132M4，XDKA107RF77-Y2.2KWA，XDKA107RF77-Y3KWA，XDKA107RF77-Y4KWA，XDKA107RF77-Y5.5KWA，XDKA107RF77-Y63M4，XDKA107RF77-Y7.5KWA，XDKA107RF77-Y71M4，XDKA107RF77-Y80M4，XDKA107RF77-Y90M4，XDKA107RF77-YB100L4，XDKA107RF77-YB112M4，XDKA107RF77-YB132M4，XDKA107RF77-YB63M4，XDKA107RF77-YB71M4，XDKA107RF77-YB80M4，XDKA107RF77-YB90S4，XDKA107RF77-YDP100L4，XDKA107RF77-YDP112M4，XDKA107RF77-YDP132M4，XDKA107RF77-YDP63M4，XDKA107RF77-YDP71M4，XDKA107RF77-YDP80M4，XDKA107RF77-YDP90S4，XDKA107RF77-YE100L4，XDKA107RF77-YE112M4，XDKA107RF77-YE132M4，XDKA107RF77-YE63M4，XDKA107RF77-YE71M4，XDKA107RF77-YE80M4，XDKA107RF77-YE90S4，XDKA107RF77-YEJ100L4，XDKA107RF77-YEJ112M4，XDKA107RF77-YEJ132M4，XDKA107RF77-YEJ63M4，XDKA107RF77-YEJ71M4，XDKA107RF77-YEJ80M4，XDKA107RF77-YEJ90S4，XDKA107RF77-YEJB100L4，XDKA107RF77-YEJB112M4，XDKA107RF77-YEJB132M4，XDKA107RF77-YEJB63M4，XDKA107RF77-YEJB71M4，XDKA107RF77-YEJB80M4，XDKA107RF77-YEJB90S4，XDKA107RF77-YP100L4，XDKA107RF77-YP112M4，XDKA107RF77-YP132M4，XDKA107RF77-YP63M4，XDKA107RF77-YP71M4，XDKA107RF77-YP80M4，XDKA107RF77-YP90S4，XDKA107RF77-YPB100L4，XDKA107RF77-YPB112M4，XDKA107RF77-YPB132M4，XDKA107RF77-YPB63M4，XDKA107RF77-YPB71M4，XDKA107RF77-YPB80M4，XDKA107RF77-YPB90S4，XDKA107RF77-YPE100L4，XDKA107RF77-YPE112M4，XDKA107RF77-YPE132M4，XDKA107RF77-YPE63M4，XDKA107RF77-YPE71M4，XDKA107RF77-YPE80M4，XDKA107RF77-YPE90S4，XDKA107RF77-YS100L4，XDKA107RF77-YS112M4，XDKA107RF77-YS132M4，XDKA107RF77-YS63M4，XDKA107RF77-YS71M4，XDKA107RF77-YS80M4，XDKA107RF77-YS90S4，XDKA107RF77-YVB100L4，XDKA107RF77-YVB112M4，XDKA107RF77-YVB132M4，XDKA107RF77-YVB63M4，XDKA107RF77-YVB71M4，XDKA107RF77-YVB80M4，XDKA107RF77-YVB90S4，XDKA107RF77-YVP100L4，XDKA107RF77-YVP112M4，XDKA107RF77-YVP132M4，XDKA107RF77-YVP63M4，XDKA107RF77-YVP71M4，XDKA107RF77-YVP80M4，XDKA107RF77-YVP90S4，XDKA107RF77-YVPEJ100L4，XDKA107RF77-YVPEJ112M4，XDKA107RF77-YVPEJ132M4，XDKA107RF77-YVPEJ63M4，XDKA107RF77-YVPEJ71M4，XDKA107RF77-YVPEJ80M4，XDKA107RF77-YVPEJ90S4，WKA107R77-Y100M4，WKA107R77-Y112M4，WKA107R77-Y132M4，WKA107R77-Y63M4，WKA107R77-Y71M4，WKA107R77-Y80M4，WKA107R77-Y90M4，WKA107RF77-Y0.12KWA，WKA107RF77-Y0.18KWA，WKA107RF77-Y0.25KWA，WKA107RF77-Y0.37KWA，WKA107RF77-Y0.55KWA，WKA107RF77-Y0.75KWA，WKA107RF77-Y1.1KWA，WKA107RF77-Y1.5KWA，WKA107RF77-Y100M4，WKA107RF77-Y112M4，WKA107RF77-Y132M4，WKA107RF77-Y2.2KWA，WKA107RF77-Y3KWA，WKA107RF77-Y4KWA，WKA107RF77-Y5.5KWA，WKA107RF77-Y63M4，WKA107RF77-Y7.5KWA，WKA107RF77-Y71M4，WKA107RF77-Y80M4，WKA107RF77-Y90M4，WKA107RF77-YB100L4，WKA107RF77-YB112M4，WKA107RF77-YB132M4，WKA107RF77-YB63M4，WKA107RF77-YB71M4，WKA107RF77-YB80M4，WKA107RF77-YB90S4，WKA107RF77-YDP100L4，WKA107RF77-YDP112M4，WKA107RF77-YDP132M4，WKA107RF77-YDP63M4，WKA107RF77-YDP71M4，WKA107RF77-YDP80M4，WKA107RF77-YDP90S4，WKA107RF77-YE100L4，WKA107RF77-YE112M4，WKA107RF77-YE132M4，WKA107RF77-YE63M4，WKA107RF77-YE71M4，WKA107RF77-YE80M4，WKA107RF77-YE90S4，WKA107RF77-YEJ100L4，WKA107RF77-YEJ112M4，WKA107RF77-YEJ132M4，WKA107RF77-YEJ63M4，WKA107RF77-YEJ71M4，WKA107RF77-YEJ80M4，WKA107RF77-YEJ90S4，WKA107RF77-YEJB100L4，WKA107RF77-YEJB112M4，WKA107RF77-YEJB132M4，WKA107RF77-YEJB63M4，WKA107RF77-YEJB71M4，WKA107RF77-YEJB80M4，WKA107RF77-YEJB90S4，WKA107RF77-YP100L4，WKA107RF77-YP112M4，WKA107RF77-YP132M4，WKA107RF77-YP63M4，WKA107RF77-YP71M4，WKA107RF77-YP80M4，WKA107RF77-YP90S4，WKA107RF77-YPB100L4，WKA107RF77-YPB112M4，WKA107RF77-YPB132M4，WKA107RF77-YPB63M4，WKA107RF77-YPB71M4，WKA107RF77-YPB80M4，WKA107RF77-YPB90S4，WKA107RF77-YPE100L4，WKA107RF77-YPE112M4，WKA107RF77-YPE132M4，WKA107RF77-YPE63M4，WKA107RF77-YPE71M4，WKA107RF77-YPE80M4，WKA107RF77-YPE90S4，WKA107RF77-YS100L4，WKA107RF77-YS112M4，WKA107RF77-YS132M4，WKA107RF77-YS63M4，WKA107RF77-YS71M4，WKA107RF77-YS80M4，WKA107RF77-YS90S4，WKA107RF77-YVB100L4，WKA107RF77-YVB112M4，WKA107RF77-YVB132M4，WKA107RF77-YVB63M4，WKA107RF77-YVB71M4，WKA107RF77-YVB80M4，WKA107RF77-YVB90S4，WKA107RF77-YVP100L4，WKA107RF77-YVP112M4，WKA107RF77-YVP132M4，WKA107RF77-YVP63M4，WKA107RF77-YVP71M4，WKA107RF77-YVP80M4，WKA107RF77-YVP90S4，WKA107RF77-YVPEJ100L4，WKA107RF77-YVPEJ112M4，WKA107RF77-YVPEJ132M4，WKA107RF77-YVPEJ63M4，WKA107RF77-YVPEJ71M4，WKA107RF77-YVPEJ80M4，WKA107RF77-YVPEJ90S4，JCKA107R77-Y100M4，JCKA107R77-Y112M4，JCKA107R77-Y132M4，JCKA107R77-Y63M4，JCKA107R77-Y71M4，JCKA107R77-Y80M4，JCKA107R77-Y90M4，JCKA107RF77-Y0.12KWA，JCKA107RF77-Y0.18KWA，JCKA107RF77-Y0.25KWA，JCKA107RF77-Y0.37KWA，JCKA107RF77-Y0.55KWA，JCKA107RF77-Y0.75KWA，JCKA107RF77-Y1.1KWA，JCKA107RF77-Y1.5KWA，JCKA107RF77-Y100M4，JCKA107RF77-Y112M4，JCKA107RF77-Y132M4，JCKA107RF77-Y2.2KWA，JCKA107RF77-Y3KWA，JCKA107RF77-Y4KWA，JCKA107RF77-Y5.5KWA，JCKA107RF77-Y63M4，JCKA107RF77-Y7.5KWA，JCKA107RF77-Y71M4，JCKA107RF77-Y80M4，JCKA107RF77-Y90M4，JCKA107RF77-YB100L4，JCKA107RF77-YB112M4，JCKA107RF77-YB132M4，JCKA107RF77-YB63M4，JCKA107RF77-YB71M4，JCKA107RF77-YB80M4，JCKA107RF77-YB90S4，JCKA107RF77-YDP100L4，JCKA107RF77-YDP112M4，JCKA107RF77-YDP132M4，JCKA107RF77-YDP63M4，JCKA107RF77-YDP71M4，JCKA107RF77-YDP80M4，JCKA107RF77-YDP90S4，JCKA107RF77-YE100L4，JCKA107RF77-YE112M4，JCKA107RF77-YE132M4，JCKA107RF77-YE63M4，JCKA107RF77-YE71M4，JCKA107RF77-YE80M4，JCKA107RF77-YE90S4，JCKA107RF77-YEJ100L4，JCKA107RF77-YEJ112M4，JCKA107RF77-YEJ132M4，JCKA107RF77-YEJ63M4，JCKA107RF77-YEJ71M4，JCKA107RF77-YEJ80M4，JCKA107RF77-YEJ90S4，JCKA107RF77-YEJB100L4，JCKA107RF77-YEJB112M4，JCKA107RF77-YEJB132M4，JCKA107RF77-YEJB63M4，JCKA107RF77-YEJB71M4，JCKA107RF77-YEJB80M4，JCKA107RF77-YEJB90S4，JCKA107RF77-YP100L4，JCKA107RF77-YP112M4，JCKA107RF77-YP132M4，JCKA107RF77-YP63M4，JCKA107RF77-YP71M4，JCKA107RF77-YP80M4，JCKA107RF77-YP90S4，JCKA107RF77-YPB100L4，JCKA107RF77-YPB112M4，JCKA107RF77-YPB132M4，JCKA107RF77-YPB63M4，JCKA107RF77-YPB71M4，JCKA107RF77-YPB80M4，JCKA107RF77-YPB90S4，JCKA107RF77-YPE100L4，JCKA107RF77-YPE112M4，JCKA107RF77-YPE132M4，JCKA107RF77-YPE63M4，JCKA107RF77-YPE71M4，JCKA107RF77-YPE80M4，JCKA107RF77-YPE90S4，JCKA107RF77-YS100L4，JCKA107RF77-YS112M4，JCKA107RF77-YS132M4，JCKA107RF77-YS63M4，JCKA107RF77-YS71M4，JCKA107RF77-YS80M4，JCKA107RF77-YS90S4，JCKA107RF77-YVB100L4，JCKA107RF77-YVB112M4，JCKA107RF77-YVB132M4，JCKA107RF77-YVB63M4，JCKA107RF77-YVB71M4，JCKA107RF77-YVB80M4，JCKA107RF77-YVB90S4，JCKA107RF77-YVP100L4，JCKA107RF77-YVP112M4，JCKA107RF77-YVP132M4，JCKA107RF77-YVP63M4，JCKA107RF77-YVP71M4，JCKA107RF77-YVP80M4，JCKA107RF77-YVP90S4，JCKA107RF77-YVPEJ100L4，JCKA107RF77-YVPEJ112M4，JCKA107RF77-YVPEJ132M4，JCKA107RF77-YVPEJ63M4，JCKA107RF77-YVPEJ71M4，JCKA107RF77-YVPEJ80M4，JCKA107RF77-YVPEJ90S4，NKA107R77-Y100M4，NKA107R77-Y112M4，NKA107R77-Y132M4，NKA107R77-Y63M4，NKA107R77-Y71M4，NKA107R77-Y80M4，NKA107R77-Y90M4，NKA107RF77-Y0.12KWA，NKA107RF77-Y0.18KWA，NKA107RF77-Y0.25KWA，NKA107RF77-Y0.37KWA，NKA107RF77-Y0.55KWA，NKA107RF77-Y0.75KWA，NKA107RF77-Y1.1KWA，NKA107RF77-Y1.5KWA，NKA107RF77-Y100M4，NKA107RF77-Y112M4，NKA107RF77-Y132M4，NKA107RF77-Y2.2KWA，NKA107RF77-Y3KWA，NKA107RF77-Y4KWA，NKA107RF77-Y5.5KWA，NKA107RF77-Y63M4，NKA107RF77-Y7.5KWA，NKA107RF77-Y71M4，NKA107RF77-Y80M4，NKA107RF77-Y90M4，NKA107RF77-YB100L4，NKA107RF77-YB112M4，NKA107RF77-YB132M4，NKA107RF77-YB63M4，NKA107RF77-YB71M4，NKA107RF77-YB80M4，NKA107RF77-YB90S4，NKA107RF77-YDP100L4，NKA107RF77-YDP112M4，NKA107RF77-YDP132M4，NKA107RF77-YDP63M4，NKA107RF77-YDP71M4，NKA107RF77-YDP80M4，NKA107RF77-YDP90S4，NKA107RF77-YE100L4，NKA107RF77-YE112M4，NKA107RF77-YE132M4，NKA107RF77-YE63M4，NKA107RF77-YE71M4，NKA107RF77-YE80M4，NKA107RF77-YE90S4，NKA107RF77-YEJ100L4，NKA107RF77-YEJ112M4，NKA107RF77-YEJ132M4，NKA107RF77-YEJ63M4，NKA107RF77-YEJ71M4，NKA107RF77-YEJ80M4，NKA107RF77-YEJ90S4，NKA107RF77-YEJB100L4，NKA107RF77-YEJB112M4，NKA107RF77-YEJB132M4，NKA107RF77-YEJB63M4，NKA107RF77-YEJB71M4，NKA107RF77-YEJB80M4，NKA107RF77-YEJB90S4，NKA107RF77-YP100L4，NKA107RF77-YP112M4，NKA107RF77-YP132M4，NKA107RF77-YP63M4，NKA107RF77-YP71M4，NKA107RF77-YP80M4，NKA107RF77-YP90S4，NKA107RF77-YPB100L4，NKA107RF77-YPB112M4，NKA107RF77-YPB132M4，NKA107RF77-YPB63M4，NKA107RF77-YPB71M4，NKA107RF77-YPB80M4，NKA107RF77-YPB90S4，NKA107RF77-YPE100L4，NKA107RF77-YPE112M4，NKA107RF77-YPE132M4，NKA107RF77-YPE63M4，NKA107RF77-YPE71M4，NKA107RF77-YPE80M4，NKA107RF77-YPE90S4，NKA107RF77-YS100L4，NKA107RF77-YS112M4，NKA107RF77-YS132M4，NKA107RF77-YS63M4，NKA107RF77-YS71M4，NKA107RF77-YS80M4，NKA107RF77-YS90S4，NKA107RF77-YVB100L4，NKA107RF77-YVB112M4，NKA107RF77-YVB132M4，NKA107RF77-YVB63M4，NKA107RF77-YVB71M4，NKA107RF77-YVB80M4，NKA107RF77-YVB90S4，NKA107RF77-YVP100L4，NKA107RF77-YVP112M4，NKA107RF77-YVP132M4，NKA107RF77-YVP63M4，NKA107RF77-YVP71M4，NKA107RF77-YVP80M4，NKA107RF77-YVP90S4，NKA107RF77-YVPEJ100L4，NKA107RF77-YVPEJ112M4，NKA107RF77-YVPEJ132M4，NKA107RF77-YVPEJ63M4，NKA107RF77-YVPEJ71M4，NKA107RF77-YVPEJ80M4，NKA107RF77-YVPEJ90S4，KWA107RW77-Y100M4，KWA107RW77-Y112M4，KWA107RW77-Y132M4，KWA107RW77-Y63M4，KWA107RW77-Y71M4，KWA107RW77-Y80M4，KWA107RW77-Y90M4，KWA107RWF77-Y0.12KWA，KWA107RWF77-Y0.18KWA，KWA107RWF77-Y0.25KWA，KWA107RWF77-Y0.37KWA，KWA107RWF77-Y0.55KWA，KWA107RWF77-Y0.75KWA，KWA107RWF77-Y1.1KWA，KWA107RWF77-Y1.5KWA，KWA107RWF77-Y100M4，KWA107RWF77-Y112M4，KWA107RWF77-Y132M4，KWA107RWF77-Y2.2KWA，KWA107RWF77-Y3KWA，KWA107RWF77-Y4KWA，KWA107RWF77-Y5.5KWA，KWA107RWF77-Y63M4，KWA107RWF77-Y7.5KWA，KWA107RWF77-Y71M4，KWA107RWF77-Y80M4，KWA107RWF77-Y90M4，KWA107RWF77-YB100L4，KWA107RWF77-YB112M4，KWA107RWF77-YB132M4，KWA107RWF77-YB63M4，KWA107RWF77-YB71M4，KWA107RWF77-YB80M4，KWA107RWF77-YB90S4，KWA107RWF77-YDP100L4，KWA107RWF77-YDP112M4，KWA107RWF77-YDP132M4，KWA107RWF77-YDP63M4，KWA107RWF77-YDP71M4，KWA107RWF77-YDP80M4，KWA107RWF77-YDP90S4，KWA107RWF77-YE100L4，KWA107RWF77-YE112M4，KWA107RWF77-YE132M4，KWA107RWF77-YE63M4，KWA107RWF77-YE71M4，KWA107RWF77-YE80M4，KWA107RWF77-YE90S4，KWA107RWF77-YEJ100L4，KWA107RWF77-YEJ112M4，KWA107RWF77-YEJ132M4，KWA107RWF77-YEJ63M4，KWA107RWF77-YEJ71M4，KWA107RWF77-YEJ80M4，KWA107RWF77-YEJ90S4，KWA107RWF77-YEJB100L4，KWA107RWF77-YEJB112M4，KWA107RWF77-YEJB132M4，KWA107RWF77-YEJB63M4，KWA107RWF77-YEJB71M4，KWA107RWF77-YEJB80M4，KWA107RWF77-YEJB90S4，KWA107RWF77-YP100L4，KWA107RWF77-YP112M4，KWA107RWF77-YP132M4，KWA107RWF77-YP63M4，KWA107RWF77-YP71M4，KWA107RWF77-YP80M4，KWA107RWF77-YP90S4，KWA107RWF77-YPB100L4，KWA107RWF77-YPB112M4，KWA107RWF77-YPB132M4，KWA107RWF77-YPB63M4，KWA107RWF77-YPB71M4，KWA107RWF77-YPB80M4，KWA107RWF77-YPB90S4，KWA107RWF77-YPE100L4，KWA107RWF77-YPE112M4，KWA107RWF77-YPE132M4，KWA107RWF77-YPE63M4，KWA107RWF77-YPE71M4，KWA107RWF77-YPE80M4，KWA107RWF77-YPE90S4，KWA107RWF77-YS100L4，KWA107RWF77-YS112M4，KWA107RWF77-YS132M4，KWA107RWF77-YS63M4，KWA107RWF77-YS71M4，KWA107RWF77-YS80M4，KWA107RWF77-YS90S4，KWA107RWF77-YVB100L4，KWA107RWF77-YVB112M4，KWA107RWF77-YVB132M4，KWA107RWF77-YVB63M4，KWA107RWF77-YVB71M4，KWA107RWF77-YVB80M4，KWA107RWF77-YVB90S4，KWA107RWF77-YVP100L4，KWA107RWF77-YVP112M4，KWA107RWF77-YVP132M4，KWA107RWF77-YVP63M4，KWA107RWF77-YVP71M4，KWA107RWF77-YVP80M4，KWA107RWF77-YVP90S4，KWA107RWF77-YVPEJ100L4，KWA107RWF77-YVPEJ112M4，KWA107RWF77-YVPEJ132M4，KWA107RWF77-YVPEJ63M4，KWA107RWF77-YVPEJ71M4，KWA107RWF77-YVPEJ80M4，KWA107RWF77-YVPEJ90S4，KA109R79-Y100M4，KA109R79-Y112M4，KA109R79-Y132M4，KA109R79-Y63M4，KA109R79-Y71M4，KA109R79-Y80M4，KA109R79-Y90M4，KA109RF79-Y0.12KWA，KA109RF79-Y0.18KWA，KA109RF79-Y0.25KWA，KA109RF79-Y0.37KWA，KA109RF79-Y0.55KWA，KA109RF79-Y0.75KWA，KA109RF79-Y1.1KWA，KA109RF79-Y1.5KWA，KA109RF79-Y100M4，KA109RF79-Y112M4，KA109RF79-Y132M4，KA109RF79-Y2.2KWA，KA109RF79-Y3KWA，KA109RF79-Y4KWA，KA109RF79-Y5.5KWA，KA109RF79-Y63M4，KA109RF79-Y7.5KWA，KA109RF79-Y71M4，KA109RF79-Y80M4，KA109RF79-Y90M4，KA109RF79-YB100L4，KA109RF79-YB112M4，KA109RF79-YB132M4，KA109RF79-YB63M4，KA109RF79-YB71M4，KA109RF79-YB80M4，KA109RF79-YB90S4，KA109RF79-YDP100L4，KA109RF79-YDP112M4，KA109RF79-YDP132M4，KA109RF79-YDP63M4，KA109RF79-YDP71M4，KA109RF79-YDP80M4，KA109RF79-YDP90S4，KA109RF79-YE100L4，KA109RF79-YE112M4，KA109RF79-YE132M4，KA109RF79-YE63M4，KA109RF79-YE71M4，KA109RF79-YE80M4，KA109RF79-YE90S4，KA109RF79-YEJ100L4，KA109RF79-YEJ112M4，KA109RF79-YEJ132M4，KA109RF79-YEJ63M4，KA109RF79-YEJ71M4，KA109RF79-YEJ80M4，KA109RF79-YEJ90S4，KA109RF79-YEJB100L4，KA109RF79-YEJB112M4，KA109RF79-YEJB132M4，KA109RF79-YEJB63M4，KA109RF79-YEJB71M4，KA109RF79-YEJB80M4，KA109RF79-YEJB90S4，KA109RF79-YP100L4，KA109RF79-YP112M4，KA109RF79-YP132M4，KA109RF79-YP63M4，KA109RF79-YP71M4，KA109RF79-YP80M4，KA109RF79-YP90S4，KA109RF79-YPB100L4，KA109RF79-YPB112M4，KA109RF79-YPB132M4，KA109RF79-YPB63M4，KA109RF79-YPB71M4，KA109RF79-YPB80M4，KA109RF79-YPB90S4，KA109RF79-YPE100L4，KA109RF79-YPE112M4，KA109RF79-YPE132M4，KA109RF79-YPE63M4，KA109RF79-YPE71M4，KA109RF79-YPE80M4，KA109RF79-YPE90S4，KA109RF79-YS100L4，KA109RF79-YS112M4，KA109RF79-YS132M4，KA109RF79-YS63M4，KA109RF79-YS71M4，KA109RF79-YS80M4，KA109RF79-YS90S4，KA109RF79-YVB100L4，KA109RF79-YVB112M4，KA109RF79-YVB132M4，KA109RF79-YVB63M4，KA109RF79-YVB71M4，KA109RF79-YVB80M4，KA109RF79-YVB90S4，KA109RF79-YVP100L4，KA109RF79-YVP112M4，KA109RF79-YVP132M4，KA109RF79-YVP63M4，KA109RF79-YVP71M4，KA109RF79-YVP80M4，KA109RF79-YVP90S4，KA109RF79-YVPEJ100L4，KA109RF79-YVPEJ112M4，KA109RF79-YVPEJ132M4，KA109RF79-YVPEJ63M4，KA109RF79-YVPEJ71M4，KA109RF79-YVPEJ80M4，KA109RF79-YVPEJ90S4。

KA109R79減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.zhbhgs.cn/product/list-kaxiliejiansuji-cn.html

推薦型號：K109減速機
